Data sheet
SAIL-M12GM12W-3S3.0U
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

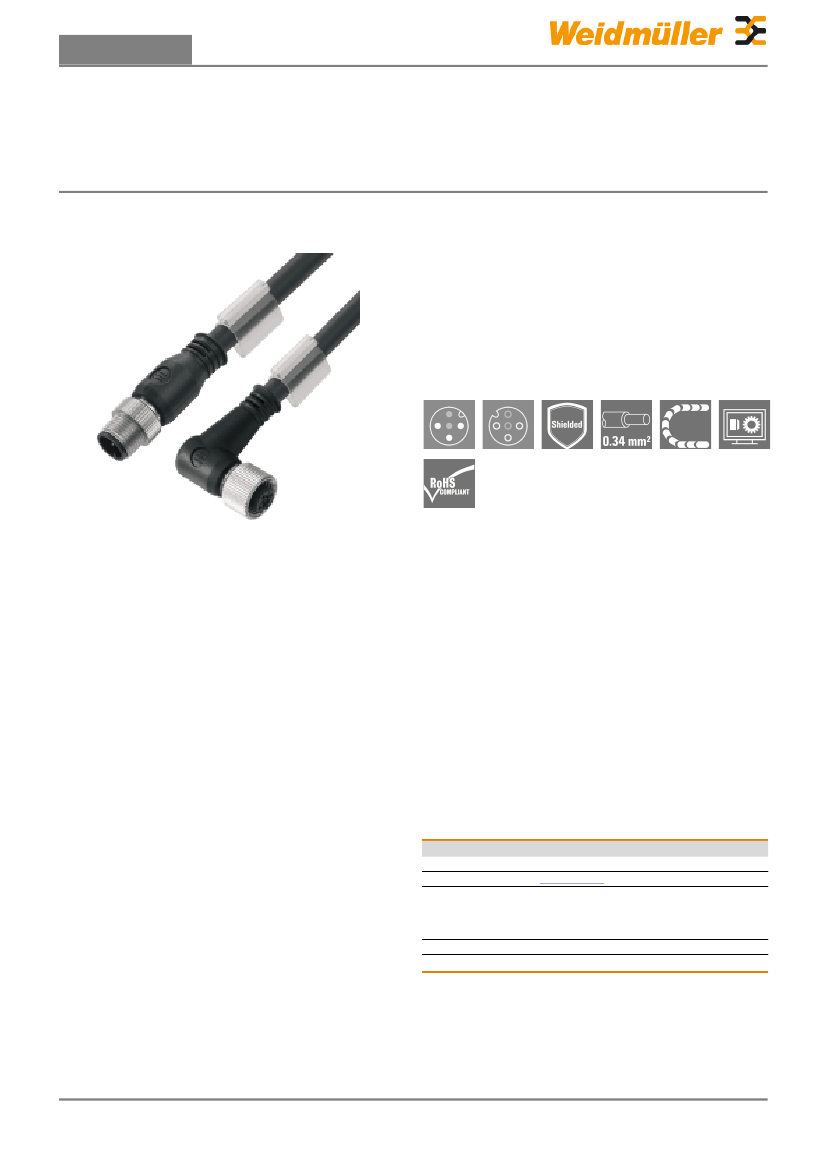

Sensor/actuator cables are used for wiring sensors and
actuators and for transmitting data or power in various
applications. The moulded cable offers connected and
tested connection of the plug-in connector to the cable
ex-works. The cables may be exposed to a wide range of
conditions, such as humidity, dust, heat, cold, shock or
vibration.
Our developers have focused specifically on this issue and
designed a host of different M8 and M12 sensor-actuator
cables so you are bound to find the solution you need for
your application.
Our sensor cables come with 360° shielding which
provides protection against electromagnetic interference.
Is there something you have not managed to find or you
feel needs explanation? Talk to us!
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
SAIL-M12GM12W-3S3.0U
1059470300
Sensor/actuator line, Connecting line, M12 /
M12, Number of poles : 3, 3 m, pin, straight -
socket, 90°, Shielded: Yes, LED: No, Sheath
material: PUR, Halogen: No
4032248807246
1 pc(s).
Creation date May 13, 2019 9:41:58 AM CEST
Catalogue status 26.04.2019 / We reserve the right to make technical changes.
1
Data sheet
SAIL-M12GM12W-3S3.0U
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
132 g
Dimensions and weights
Net weight
Temperatures
Operating temperature range, max.
Operating temperature, max.
80 °C
80 °C
Operating temperature range, min.
Operating temperature, min.
-25 °C
-25 °C
Environmental Product Compliance
REACH SVHC
Lead 7439-92-1
Technical specifications for cable
Number of poles
Outside diameter
Shielded
Colour coding
Sheathing colour
Temperature range, moving
Core in accordance with UL AWM style
Suitable for cable carriers
Bending radius, min., stationary
Acceleration
Bending cycles
Hybrid cable
Configurable cable length
LABS-free
Resistance to spread of flame
3
5 ± 0.2 mm
Yes
brown, blue, black
black
-25...80 °C
10493 (80 °C / 300 V)
Yes
5 x cable diameter
5 m/s²
2 Mio
No
No
Core cross-section
Cable length
Insulation
Sheath material
Halogen
Temperature range, stationary
Outer cladding in accordance with UL
AWM style
Torsion resistance
Bending radius, min., moving
Speed
Resistant to welding beads
Irradiation crosslinked
Hydrolysis and microbe resistant
Resistance to oils
0.34 mm²
3m
PP
PUR
No
-40...80 °C
20233 (80 °C / 300 V)
0 °/m
10 x cable diameter
200 m/min
No
No
Yes
in accordance with IEC
60811:404
Yes
in accordance with
UL1581 UL/ CUL FT1,
in accordance with IEC
60332-1-2, in accordance
with IEC 60332-1-3, in
accordance with IEC
60332-2-2
General technical data
Version
pin, straight - socket,
90°
PUR
A
Gold-plated
250 V
Connection thread
Threaded ring material
Protection degree
LED
Rated current
Temperature range of housing
Plugging cycles
jumpered
M12 / M12
Diecast zinc
IP65, IP66, IP67, IP68,
when screwed in
No
4A
-25…+85 °C
≥ 100
No
Housing main material
Coding
Contact surface
Rated voltage
Insulation strength
Tightening torque
Pollution severity
10
8
Ω
M12: 0.8 - 1.2 Nm
3
Standards
Connector standard
IEC 61076-2-101
Certificate no. (cULus)
E307231
Creation date May 13, 2019 9:41:58 AM CEST
Catalogue status 26.04.2019 / We reserve the right to make technical changes.
2
Data sheet
SAIL-M12GM12W-3S3.0U
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
EC001855
EC001855
27-06-91-90
27-06-91-90
27-06-03-11
ETIM 4.0
ETIM 6.0
eClass 6.2
eClass 8.1
eClass 9.1
Classifications
ETIM 3.0
ETIM 5.0
eClass 5.1
eClass 7.1
eClass 9.0
EC001855
EC001855
27-06-91-90
27-06-91-90
27-06-03-11
Approvals
Approvals
ROHS
Conform
Downloads
Brochure/Catalogue
Engineering Data
FL FIELDWIRING EN
EPLAN, WSCAD
Creation date May 13, 2019 9:41:58 AM CEST
Catalogue status 26.04.2019 / We reserve the right to make technical changes.
3
Data sheet
SAIL-M12GM12W-3S3.0U
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

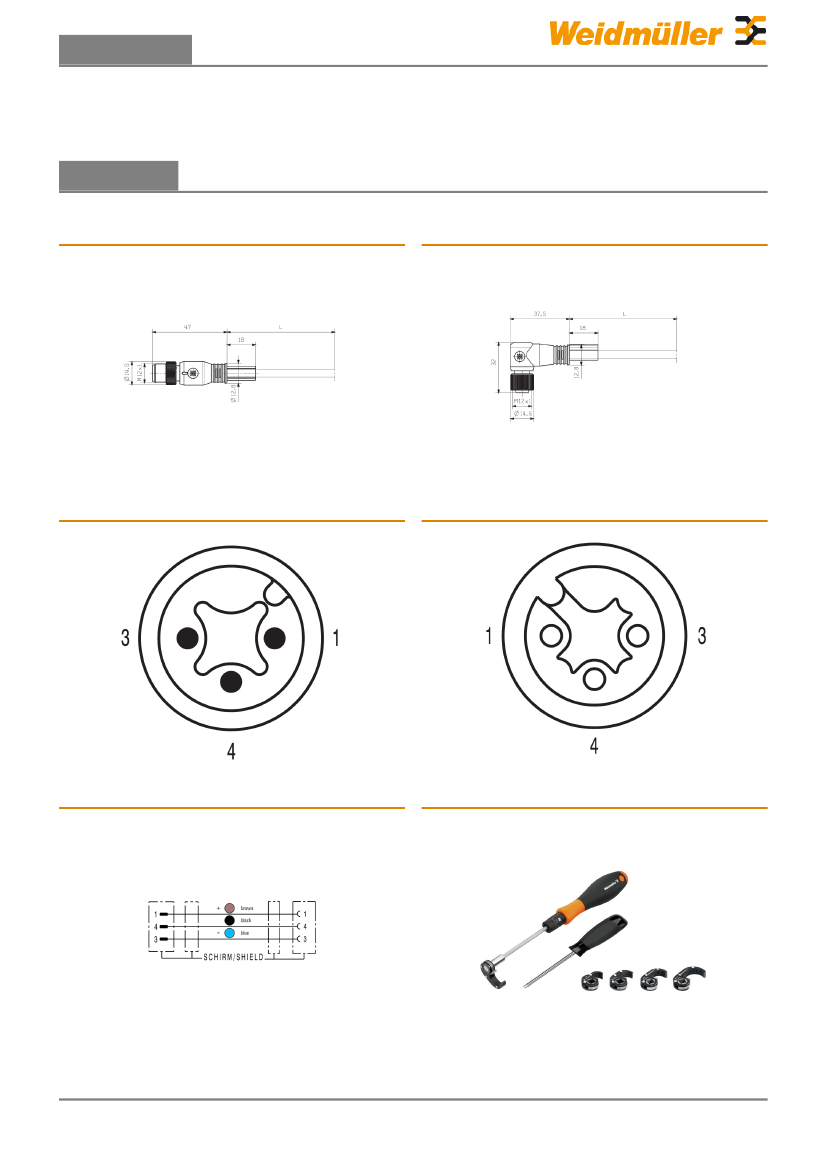

Drawings
Dimensioned drawing
Dimensioned drawing
Pole scheme
Pole scheme
Angled socket
Male
Wiring diagram
Socket
The ideal tool: Screwty
® with torque function
Creation date May 13, 2019 9:41:58 AM CEST
Light, securely screwed-in round plug-in
connectors. Screwty set DM / VPE: 1 / Order No.:
1920000000 Adapters: M12, M12 F, M8, M8 F
Catalogue status 26.04.2019 / We reserve the right to make technical changes.
4
