ECWF6123JL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> ECWF6123JL

ECWF6123JL: DescriptionFilm Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, 0.012uF, Through Hole Mount, 4922, RADIAL LEADED; CategoryPassive components capacitor; File Size66KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ECWF6123JL Overview

Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, 0.012uF, Through Hole Mount, 4922, RADIAL LEADED

ECWF6123JL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	15 weeks
Other features	FLAME PROOF
capacitance	0.012 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	8.3 mm
JESD-609 code	e3
length	12.5 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	5%
Rated (DC) voltage (URdc)	630 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	10 mm
Terminal shape	WIRE
width	5.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

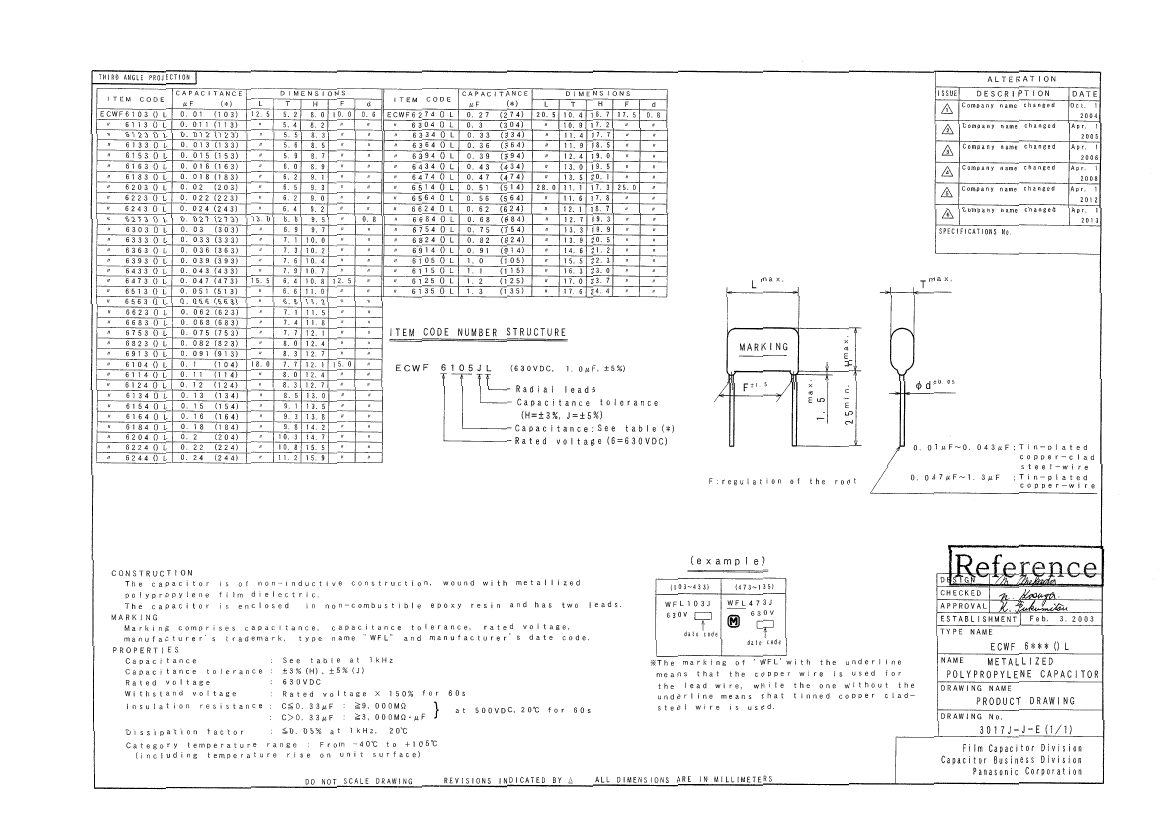

T I D AGE P O E T O I
