BX2580WT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> BX2580WT

BX2580WT: DescriptionTelecom Transformer; CategoryPower management transformer; File Size42KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

BX2580WT Overview

Telecom Transformer

BX2580WT Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TURNS RATIO: 4:1, LENGTH AND HEIGHT DIMENSION INCLUDES TERMINALS ALSO
high	12.32 mm
length	17.65 mm
Manufacturer's serial number	BX2580W
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	17.65mm X 13.46mm X 12.32mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.46 mm
Base Number Matches	1

Preview

Download Datasheet

View All

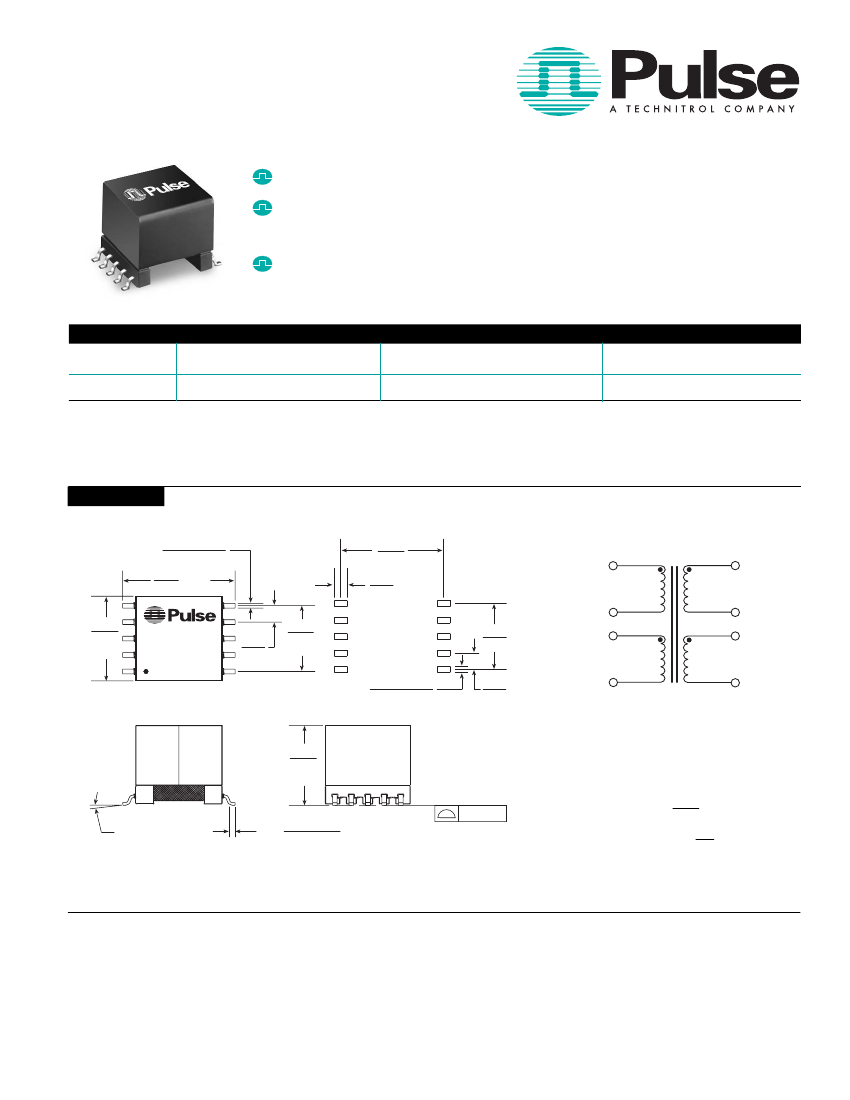

ADSL CPE TRANSFORMER

For Centillium Palladia and

StreetFighter Chipsets

ADSL CPE Transformer for ANNEX A

Approved for use with Centillium’s Palladia 220 and

StreetFighter 100 chipsets

EN60950 Supplementary Isolation Compliant - 250Vrms

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

Part Number

BX2580W

Turns Ratio

(Line:Chip)

4:1

OCL Primary

(µH ± 5%)

440

Isolation Voltage

(Vrms)

1500

NOTE:

Optional Tape & Reel packaging can be ordered for either part by adding a

"T"

suffix to the part number (ex: BX2580WT).

Mechanical

BX2580W

10 X .028

± .002

0,71

± 0,05

.695

17,65 MAX

.530

13,46

MAX

BX2580W

.394

10,00

MAX

10 X .051

± .002

1,30

± 0,05

.605

15,37

.100

2,54

.394

10,00

.098

2,50

Schematic

1:4

Date Code

Country of Origin

.098

2,50

CHIP

LINE

.485

12,32

MAX

.031 ± .006

10X

0,79 ± 0,15

.005/0,13

10 SURFACES

10X 0° 8°

Weight

. . . . . . . . . . . . . .6.2 grams

Tape and Reel

. . . . . . . . .150/reel

Tray

. . . . . . . . . . . . . . . . . .60/tray

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

5 Huxley Road

Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

(Southern Europe)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

SINGAPORE

(Southern Asia)

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 6287 8998

FAX: 65 6280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

HONG KONG

(China/Hong Kong)

9/F, Phase 2, Tai Sang

Shatin Warehouse Centre

6 Wong Chuk Yeung Street

Fotan, Shatin, Hong Kong

TEL: 852 2788 6588

FAX: 852 2776 1055

DISTRIBUTOR

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

B856.A (6/04)
