MIC24120-5301

Description
Telecom and Datacom Connector, ROHS COMPLIANT
CategoryThe connector    The connector
File Size114KB,2 Pages
ManufacturerWurth Elektronik
Environmental Compliance
Download Datasheet Parametric Compare View All

MIC24120-5301 Overview

Telecom and Datacom Connector, ROHS COMPLIANT

MIC24120-5301 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerWurth Elektronik
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeTELECOM AND DATACOM CONNECTOR
Base Number Matches1
more than you expect
Integrated 10/100 Base-T RJ45
Low Profile Surface Mount
LANDatacom
Electrical Characteristics
Inductance
350uH Min.
Turns Ratio
1CT:1CT
Insertion Loss
-1.0dB max.
-18dB min.
-16dB min.
Return Loss
-14dB min.
-12dB min.
Cross Talk
-35dB min.
Common Mode Rejection
-35dB min.
Features
0.1Vrms, 100k Hz, 8mADC
±2%
1MHz-100MHz
1MHz-30MHz
30MHz-45MHz
45MHz-60MHz
60MHz-80MHz
1MHz-100MHz
1MHz-100MHz
Surface Mount
Low Profile Design
AutoMDIX compatible
Optional pin-outs
Optimum performance
Cost Effective
RoHS compliant
Note1: Electrical Characteristics for individual part may vary; see specification sheet for actual values.
Part Number
MIC24121-5301
MIC24121-5308
MIC24120-5301
LED (left-right)
Yellow-Green
Yellow-Green
None
Dielectric
Tab Direction EMI Tabs Rating (1 Min.)
Up
Yes
1500VAC
Up
Yes
2250VDC
Up
Yes
2250VDC
Operating

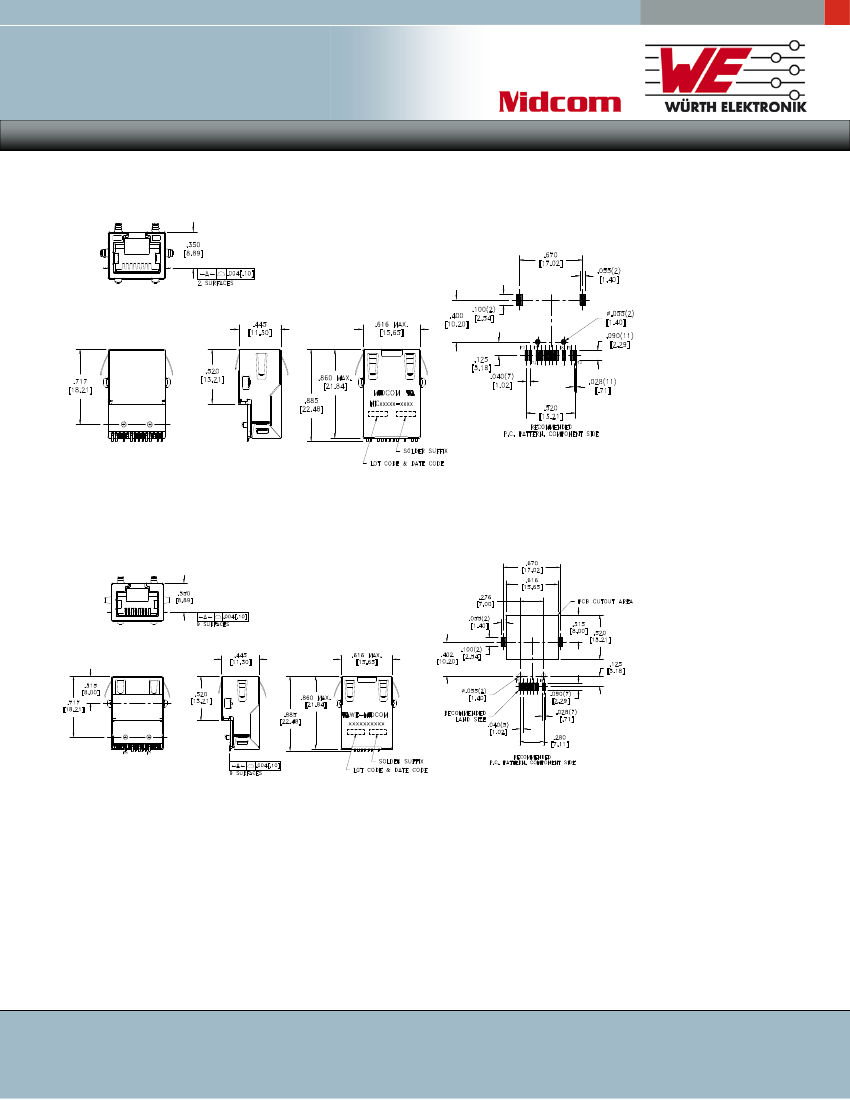

Temp. Range Mechanical
0°C to +70°C
1
-40°C to +85°C
1
0°C to +70°C
2

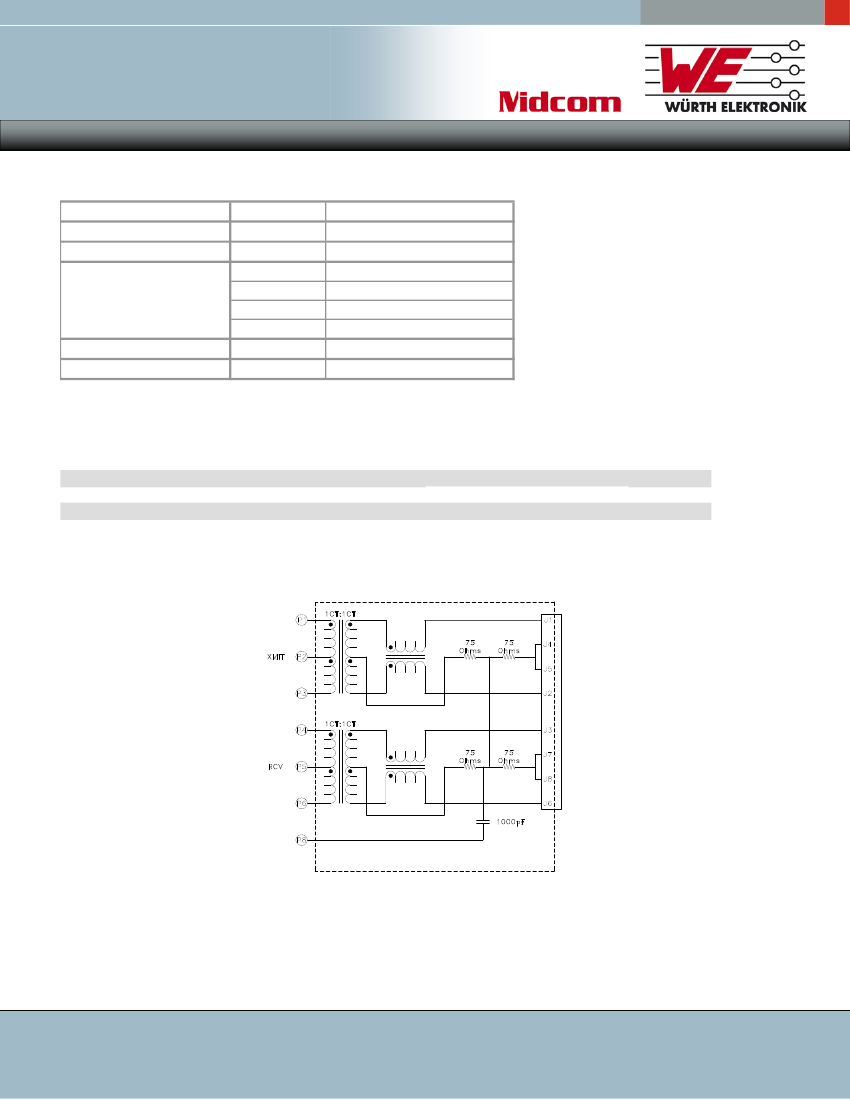

Schematic
Wurth Electronics Midcom, Inc.
121 Airport Drive—PO Box 1330
Watertown, SD 57201
T: 605.886.4385 ~ 605.886.4486
www.we-online.com ~ email: sales@midcom-inc.com
13-Nov-08
1/2

MIC24120-5301 Related Products

MIC24120-5301 MIC24121-5301 MIC24121-5308
Description Telecom and Datacom Connector, ROHS COMPLIANT Telecom and Datacom Connector, ROHS COMPLIANT Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Maker Wurth Elektronik Wurth Elektronik Wurth Elektronik
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Connector type TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR
