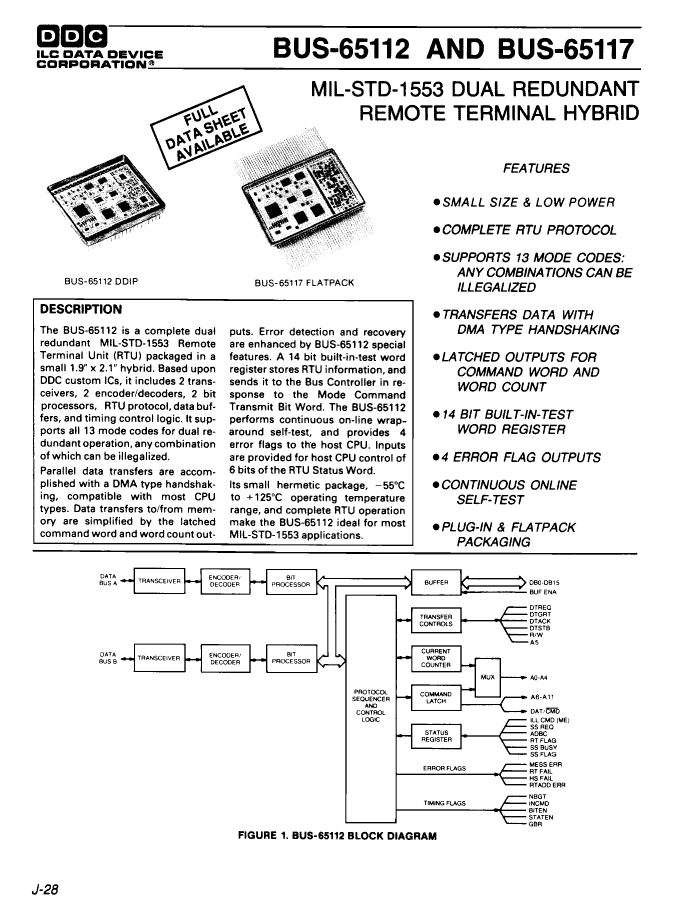

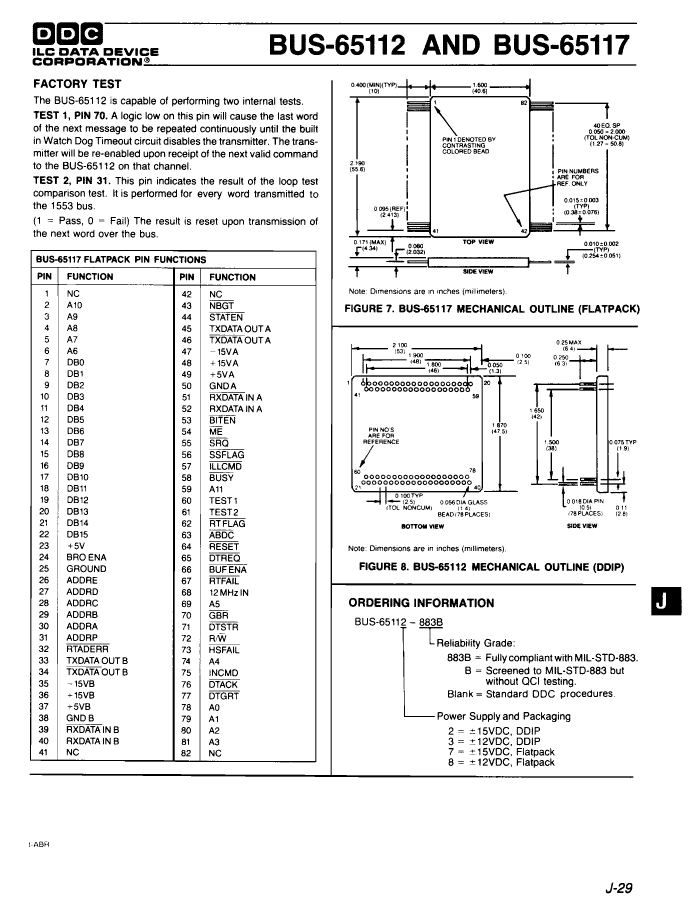

Mil-Std-1553 Controller, 2 Channel(s), CMOS, HYBRID PACKAGE-78
| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, QUIP78B,1.5/1.7 |
| Contacts | 78 |
| Reach Compliance Code | unknown |
| Address bus width | 12 |
| boundary scan | NO |
| maximum clock frequency | 12 MHz |
| letter of agreement | MIL STD 1553 |
| External data bus width | 16 |
| JESD-30 code | R-XDIP-P78 |
| JESD-609 code | e0 |
| length | 53.34 mm |
| low power mode | NO |
| Number of serial I/Os | 2 |
| Number of terminals | 78 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | UNSPECIFIED |
| encapsulated code | DIP |
| Encapsulate equivalent code | QUIP78B,1.5/1.7 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5,+-15 V |
| Certification status | Not Qualified |
| Filter level | MIL-PRF-38534 Class H |
| Maximum seat height | 6.4 mm |
| Maximum slew rate | 280 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | PIN/PEG |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 47.498 mm |
| uPs/uCs/peripheral integrated circuit type | SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553 |
| Base Number Matches | 1 |
