REVISION S
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAX. CUT FLASH: .015[.38]; NO FLASH ALLOWED IN OR AROUND
S
SURFACE MOUNT TAIL AREA.
3. MINIMUM PUSHOUT FORCE: 1 LB.
4. MAX. PIN VARIANCE : .005[.13].
5. SHEAR TAILS TO DIMENSION SHOWN, .003 [.08] MAX BURR.
6. COPLANARITY TO BE WITHIN .004 WHEN AT POSITION 05-25 AND
BE WITHIN .006 WHEN AT POSITION 26-50.
7. PINS 1 AND 2 TO BE FLUSH TO .0030 ABOVE LINE MADE BY THE BODY.
8. ENDWALL TO BE .008 MIN.
S
FTMH-1XX-XX-XX-DH-X-XX
No OF POSITIONS
-05 THRU -50
( PER ROW)
LEAD STYLE SPEC
-03: .065 POST
(USE T-1S16-01-X-2)
-02: .075 POST
( USE T-1S16-01-X-2)
PLATING SPEC
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON
CONTACT, 3 Au / 50 Ni MIN ON TAIL
-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
.015 0.38
T-1S16-01-XX-2 (PIN 1)
T-1S16-01-XX-2 (PIN 2)
OPTION 2
-TR: TAPE & REEL
PACKAGING
OPTION 1
-K: POLYIMIDE FILM PAD
(-05 THRU -50 POSITIONS ONLY)
TABLE 1
LEAD STYLE
-02
-03
C2
"A"
.075 [1.91]
.065 [1.65]
C1
ROW SPECIFICATION
-DH: DOUBLE HORIZONTAL
(USE FTMH-75-D)
.102 2.59
R.015 0.38
(4 PLCS)
.003 0.08
MAX
(SEE NOTE 7)
No. OF POS x .03937[1.000]
.020 0.50 REF
02
DO NOT
SCALE FROM
THIS PRINT
01
.03937 1.0000 REF
.012 0.30 SQ REF (TYP)
S
.010[.25]
100
"A"
(SEE NOTE 4)
.125 3.18 REF
99
FTMH-XX-D
.102±.010 2.59±0.25
.190±.010 4.83±0.25
POSITION
.004[.10] 05 TO 25
.006[.15] 26 TO 50
'A'
.010 0.25
MIN FLAT
.025 0.63 MIN FLAT
DETAIL 'A'
SCALE 6 : 1
"M"
.059 1.49
REF
"P"
-K OPTION
POLYIMIDE FILM PAD
(AVAILABLE ON -05
THRU -50 POS ONLY)
.105±.005 2.67±0.13
(SEE NOTE 5)
IN-PROCESS 1
PACKAGING VIEW
STYLE -02 & -03
PIN 01
T & R VIEW
ROUND
HOLES
.098 2.49
.020±.010 0.50±0.25
.131 3.31
.224±.005 5.69±0.13
(SEE NOTE 5)
NOTE: "M" = USE MEASURED DIMENSION (REF)
"P" = (( "M" - .098 [2.50]) / 2) .020 [.51])
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
IN-PROCESS 2
OBLONG HOLES
.X: .1[2.5]
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
DECIMALS
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
BODY: LCP, UL 94 VO, COLOR: BLACK
TERMINAL: PHOS BRONZE, 510
S
DO NOT SCALE DRAWING
SHEET SCALE: 1:1

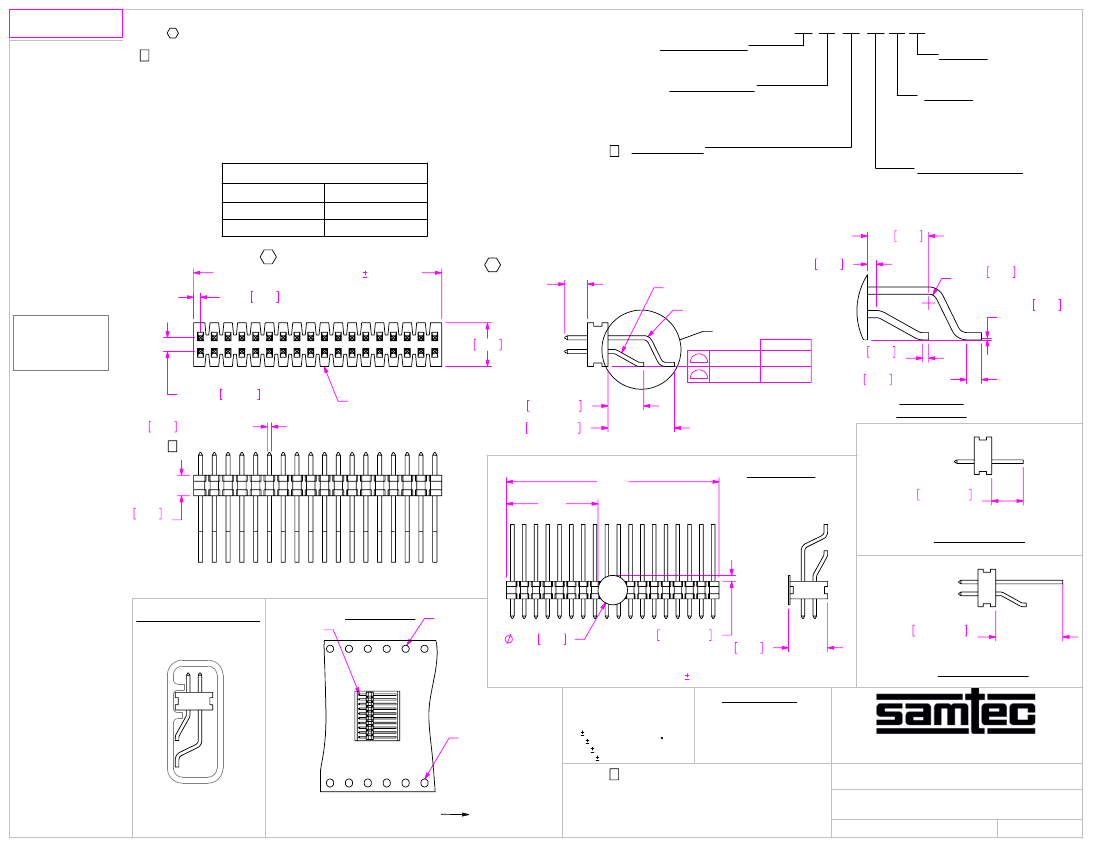

1MM X 1MM HORIZONTAL SMT TERMINAL STRIP
TUBE: PT-FTMH001-DH
PLUG: TP-24
UNWINDING DIRECTION
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DH-X-XX -MKT.SLDDRW
BY:
D. PURVIS
FTMH-1XX-XX-XX-DH-X-XX
10/13/1998
SHEET
1
OF
1
