HCS160DMSR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HCS160DMSR

HCS160DMSR: DescriptionDecade Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16; Categorylogic logic; File Size205KB，9 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HCS160DMSR Overview

Decade Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16

HCS160DMSR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Counting direction	UP
series	HC/UH
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	20000000 Hz
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
propagation delay (tpd)	29 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	200k Rad(Si) V
Trigger type	POSITIVE EDGE
Base Number Matches	1

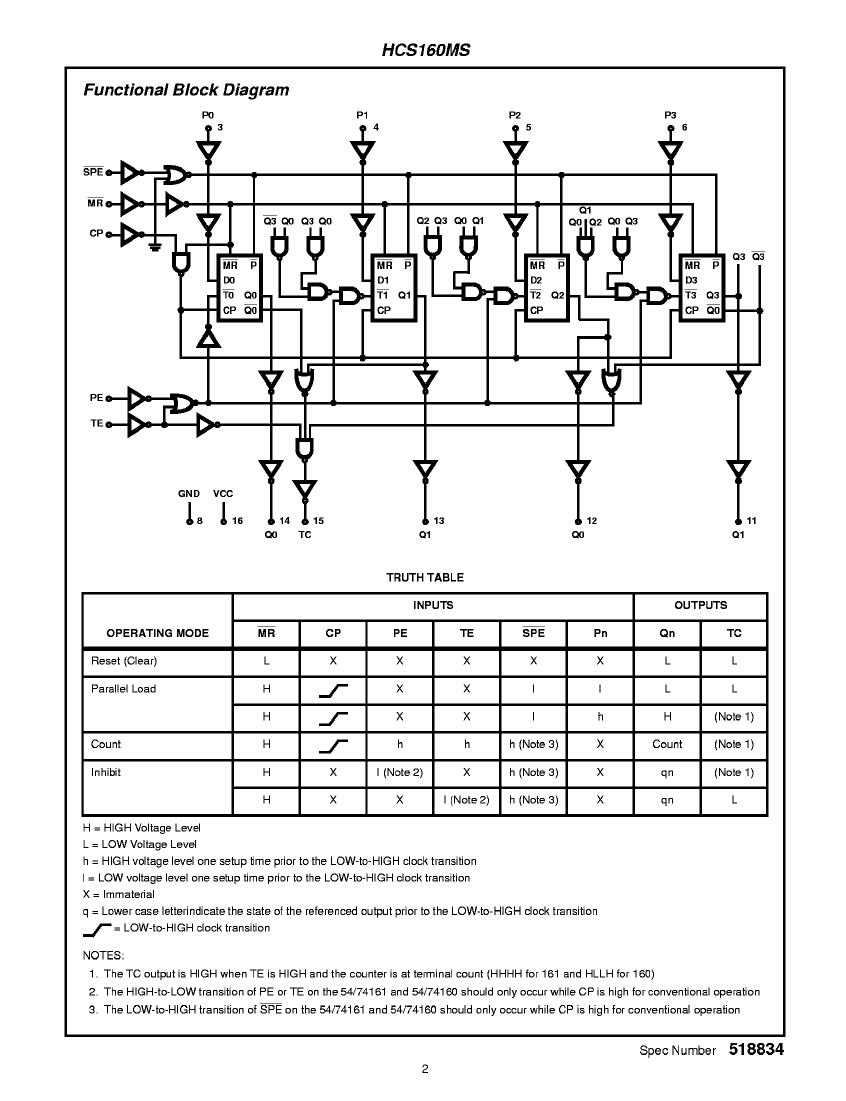

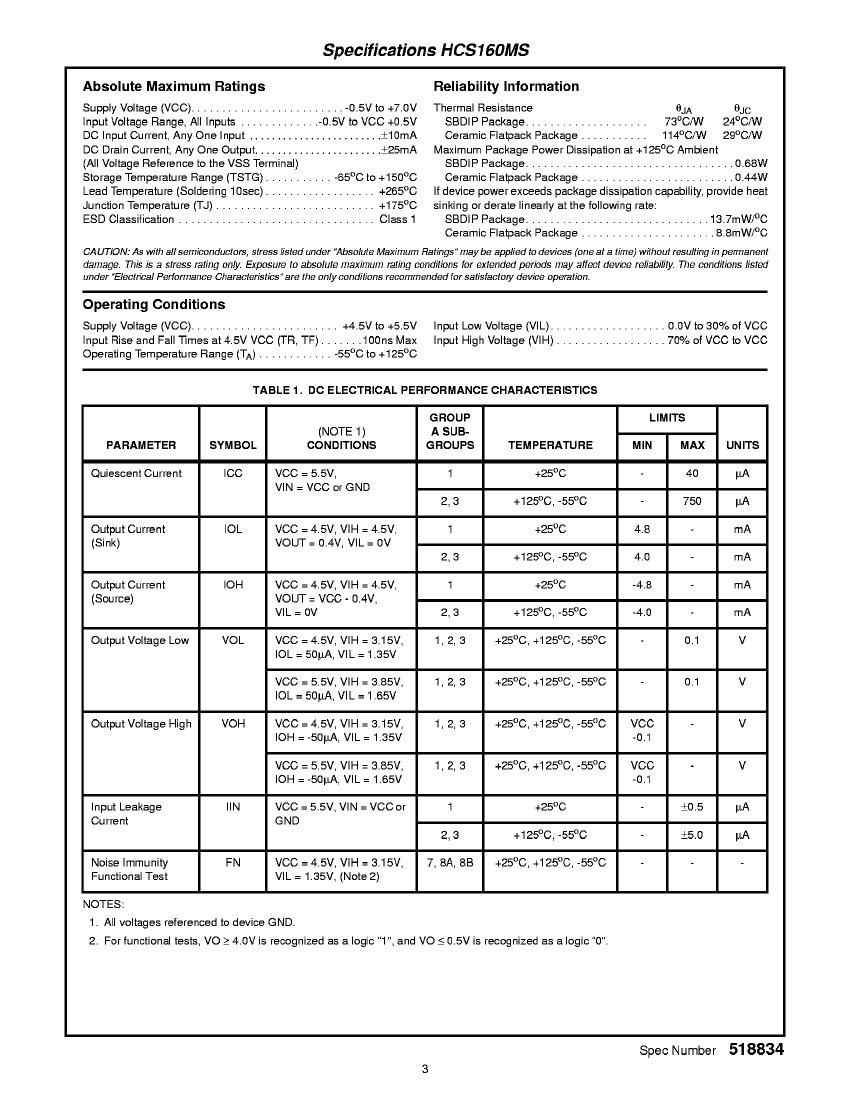

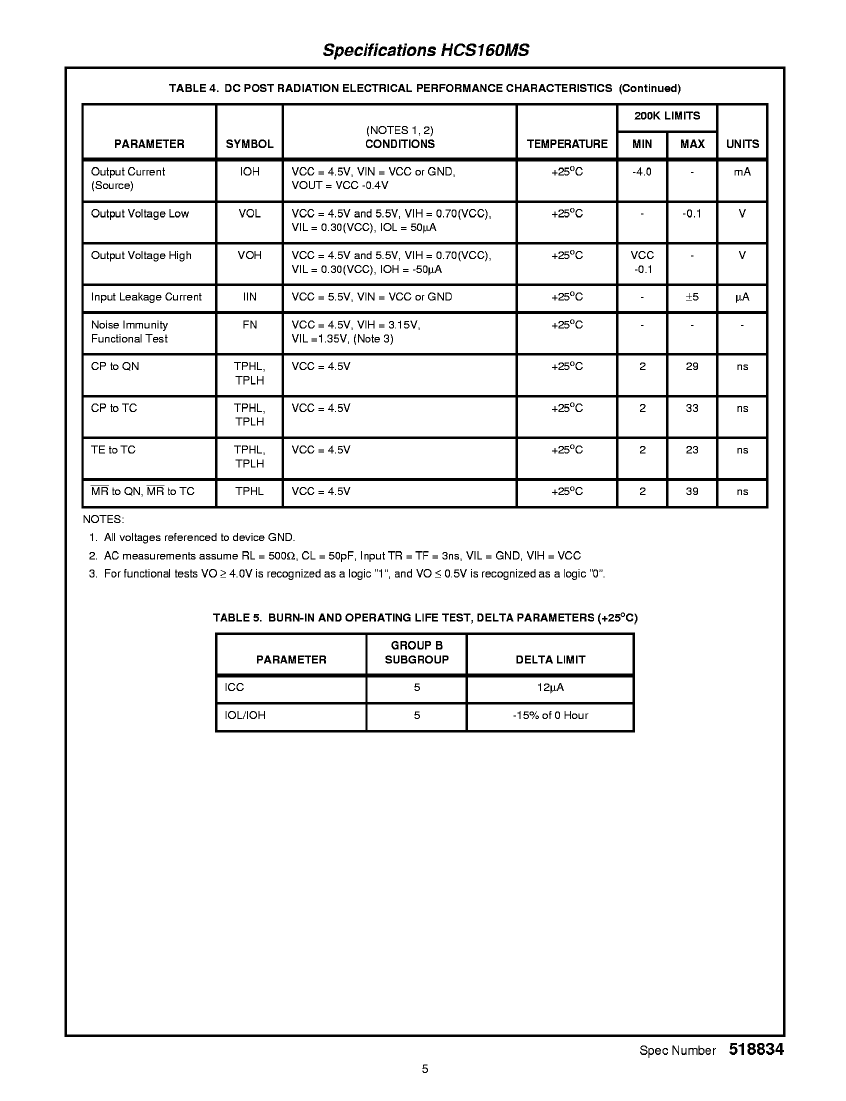

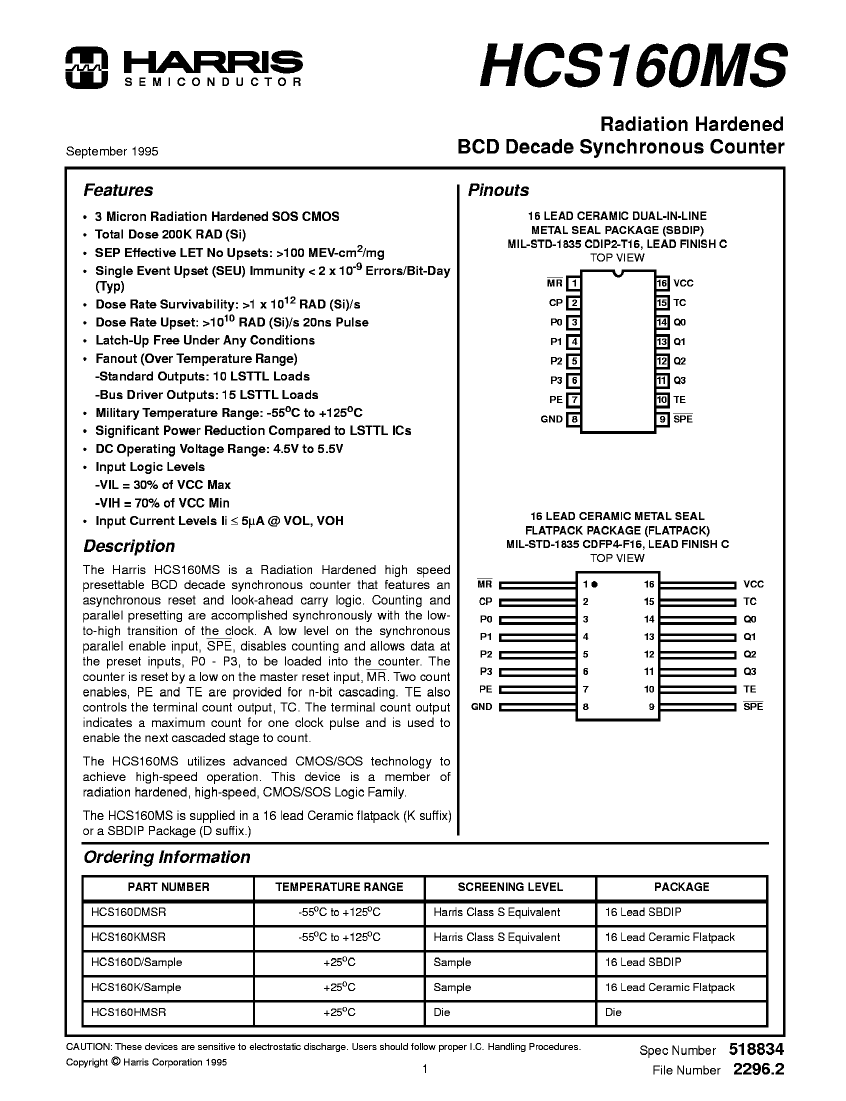

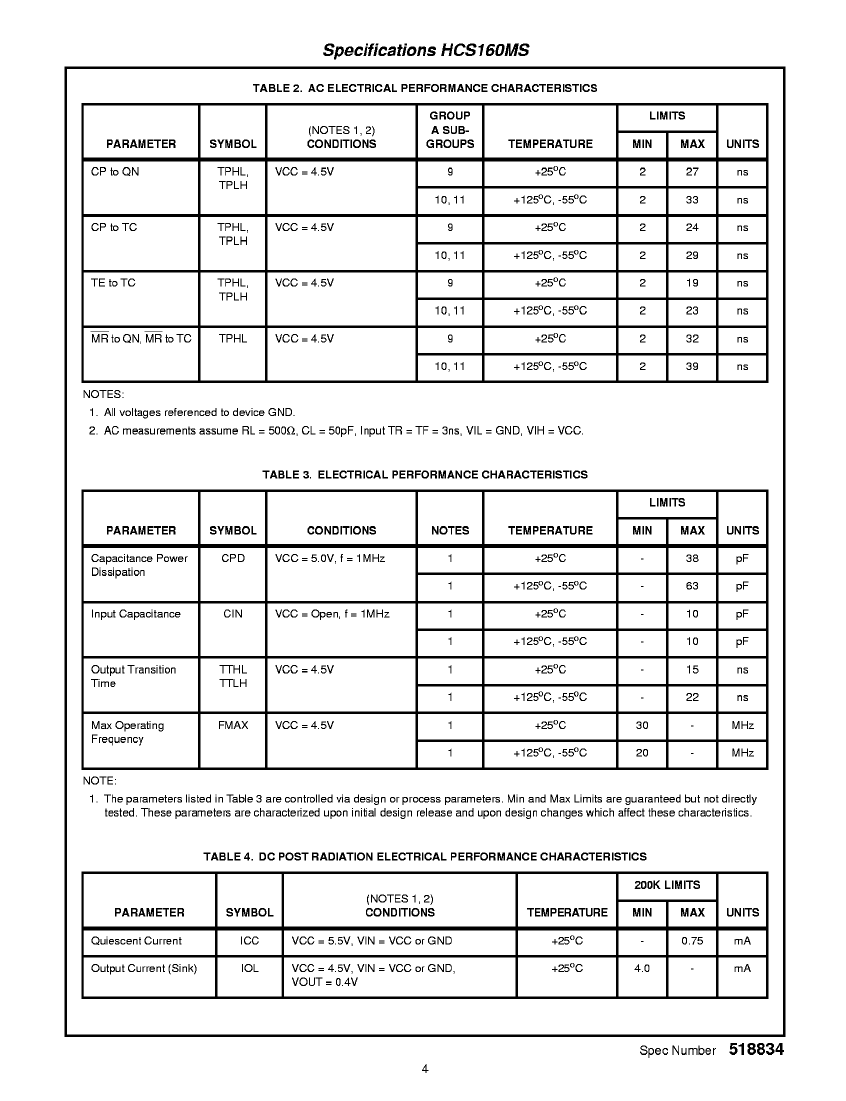

Preview

Download Datasheet

View All

HCS160DMSR Related Products

	HCS160DMSR	HCS160KMSR	HCS160K/SAMPLE	5962R9580601VXC	5962R9580601V9A	5962R9580601VEC	HCS160HMSR
Description	Decade Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16	Decade Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16	Decade Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16	Decade Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16	Decade Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS	Decade Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16	Decade Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS
package instruction	DIP, DIP16,.3	DFP, FL16,.3	,	,	DIE,	,	DIE,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	UP	UP	UP	UP	UP	UP	UP
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDIP-T16	R-CDFP-F16	R-CDFP-F16	R-CDFP-F16	X-XUUC-N16	R-CDIP-T16	X-XUUC-N16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR	UNSPECIFIED
Package form	IN-LINE	FLATPACK	FLATPACK	FLATPACK	UNCASED CHIP	IN-LINE	UNCASED CHIP
propagation delay (tpd)	29 ns	29 ns	29 ns	29 ns	29 ns	29 ns	29 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	FLAT	FLAT	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL	UPPER	DUAL	UPPER
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1	1	1	1	1	1
JESD-609 code	e0	e0	-	e4	e0	e4	-
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
encapsulated code	DIP	DFP	-	-	DIE	-	DIE
Temperature level	MILITARY	MILITARY	-	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	GOLD	TIN LEAD	GOLD	-
total dose	200k Rad(Si) V	200k Rad(Si) V	-	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	-
