30-205B-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 30-205B-3

30-205B-3: DescriptionPushbutton Switch, SPST, Momentary, 0.15A, 24VDC, Solder Terminal, Panel Mount-threaded,; CategoryMechanical and electronic products switch; File Size248KB，1 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

30-205B-3 Overview

Pushbutton Switch, SPST, Momentary, 0.15A, 24VDC, Solder Terminal, Panel Mount-threaded,

30-205B-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	PLUNGER
body height	7.58 mm
Body length or diameter	17.53 mm
Maximum contact current (DC)	0.15 A
Contact (DC) maximum rated R load	.15A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	500000 Cycle(s)
JESD-609 code	e4
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
seal	IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

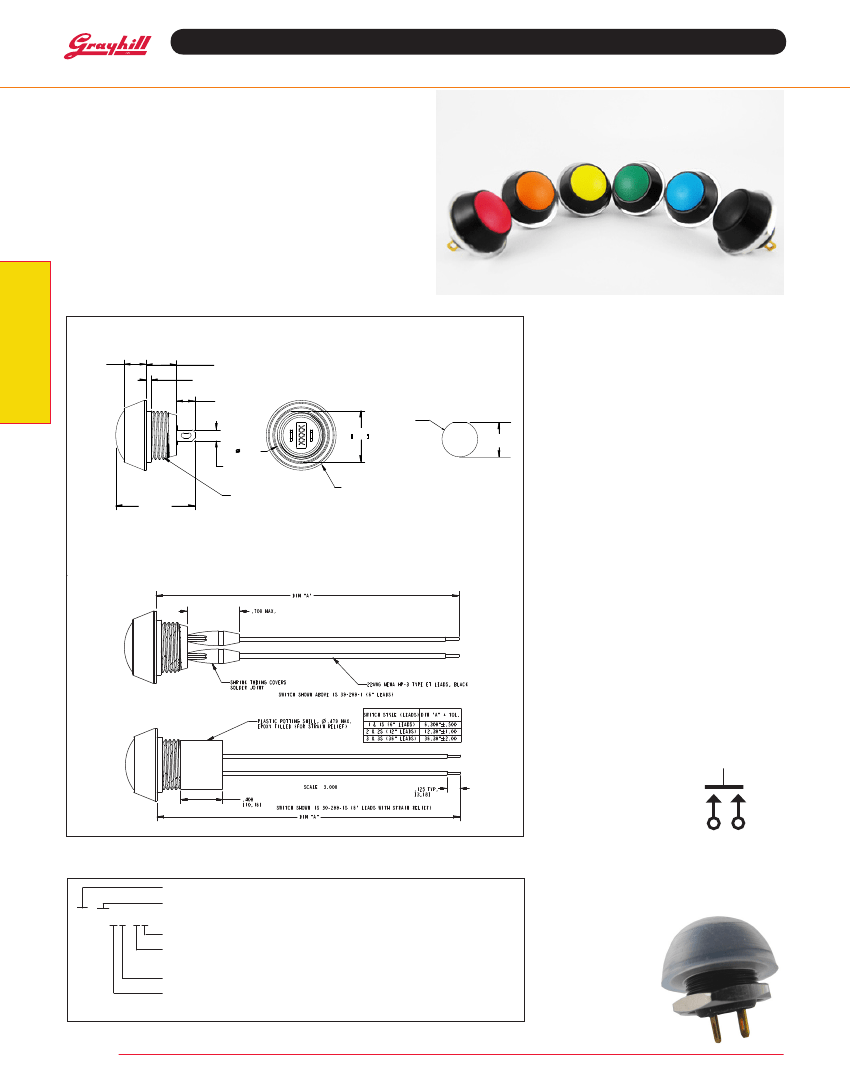

Butt Contact Pushbutton Switches

SerieS 30

FeATUreS

•

Sealed, Front Panel Mounting

Threaded bushing

Choice of 6 button colors

SPST (momentary contact)

Gold plated contacts

Strong, lightweight aluminum housing

Sealed against dust and moisture

to IP67 (to IP67 with silicone boot*)

Pushbutton Switches

DiMenSionS

in inches (and millimeters)

rATinG

.220

[ 5,59 ]

.050

[ 1,27 ]

.182

[ 4,62 ]

Ø .530 ±.003

[ 13,46 ]

.503

[

12,78

]

.522

.298

[ 7,58 ]

[ 13,26 ]

RECOMMENDED PANEL

CUTOUT

.510 ±.003

[ 12,95 ]

.110

[ 2,79 ]

.689

[ 17,51 ]

1/2-32 UNEF THREADS

.780

REF.

[ 19,81 ]

Cycles:

500,000 actuations

operating Temperature:

-40ºC to +80ºC

Shock:

100 G's/6 milliseconds

Travel:

.090 nominal

Travel Before Make:

.035 nominal

rating at 24 VDC:

150 milliamps

Voltage Breakdown:

1000 Vac

Contact resistance:

25 Megaohms max

(initial)

insulation resistance:

1,000 Megaohms

minimum

MATeriAL

Cable options

Housing:

Aluminum, black chrome finish

Button, Base, and Plunger:

Nylon, 45%

glass-filled

Terminal:

Brass, gold-plated over nickel

Shorting Bar:

Brass, gold-plated over nickel

internal Seal:

Silicone rubber

o-ring panel Seal:

Silicone

Spring:

Tinned music wire

Hex nut:

1/2-32, Brass with Nickel Plating,

P/N 635201

Lockwasher:

Internal,1/2 dia. , Steel with

Zinc plating, P/N 635401

* Switch meets IP67 without boot if not

actuated during immersion

CirCUiTrY

SPST n.o.

orDerinG inForMATion

Series

Threaded Bushing

Strain Relief: Blank = shrink tubing, S = strain relief

Connection: Blank = terminals, E = epoxy rear seal

1 = 6" leads, 2 = 12" leads, 3 = 36" leads

Silicone Boot: Blank = no boot, B = black boot, C = clear boot

Cap Color: 0 = black, 1 = red, 2 = green

3 = yellow, 4 = orange, 5 = blue

30-201B-1S

pictured with clear

silicone boot

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
