415255-4 datasheet, PDF - EEWORLD Datasheet

415255-4: DescriptionCABLE TERMINATED, MALE,N CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

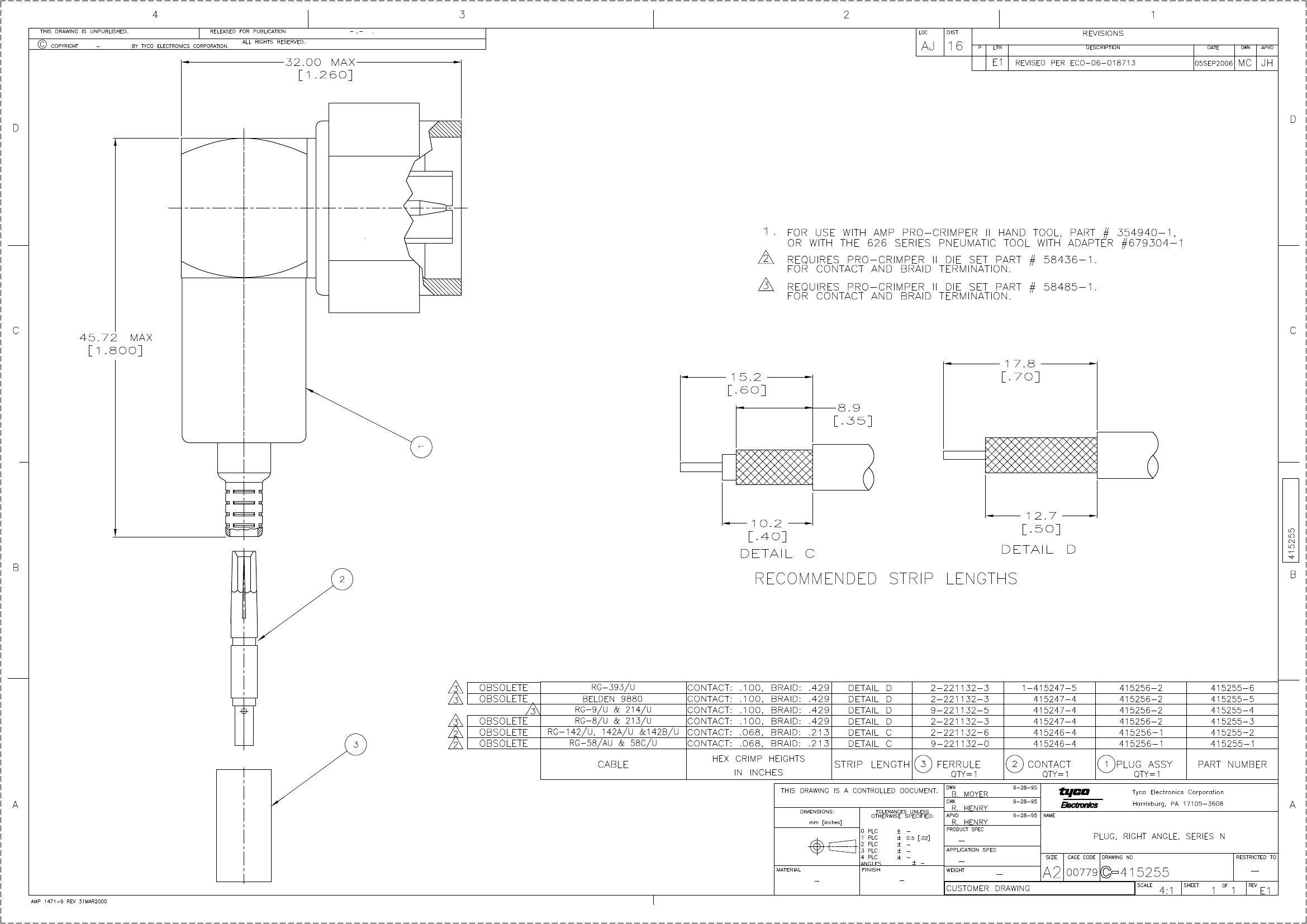

415255-4 Overview

CABLE TERMINATED, MALE,N CONNECTOR, CRIMP, PLUG

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	APPLICABLE CABLES: RG 9/U; RG 214/U, INSERTION LOSS MAX AT 10GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	N
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.5
Base Number Matches	1

	415255-4	415255-6	415255-5
Description	CABLE TERMINATED, MALE,N CONNECTOR, CRIMP, PLUG	CABLE TERMINATED,N CONNECTOR, CRIMP, PLUG	CABLE TERMINATED,N CONNECTOR, CRIMP, PLUG
Reach Compliance Code	unknown	unknow	unknown
Other features	APPLICABLE CABLES: RG 9/U; RG 214/U, INSERTION LOSS MAX AT 10GHZ	APPLICABLE CABLE: RG 393/U, INSERTION LOSS MAX AT 10GHZ	INSERTION LOSS MAX AT 10GHZ
Body/casing type	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR
Contact completed and terminated	GOLD	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Coupling type	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insertion loss	0.3 dB	0.3 dB	0.3 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e0	e0
MIL compliance	NO	NO	NO
Manufacturer's serial number	N	N	N
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE
Maximum operating frequency	11 GHz	11 GHz	11 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.5	1.5	1.5
Base Number Matches	1	1	1
