54F157ALMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F157ALMQB

54F157ALMQB: DescriptionMultiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size181KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54F157ALMQB Overview

Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CQCC20, CERAMIC, LCC-20

54F157ALMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.02 A
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	23 mA
Prop。Delay @ Nom-Sup	7.5 ns
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1

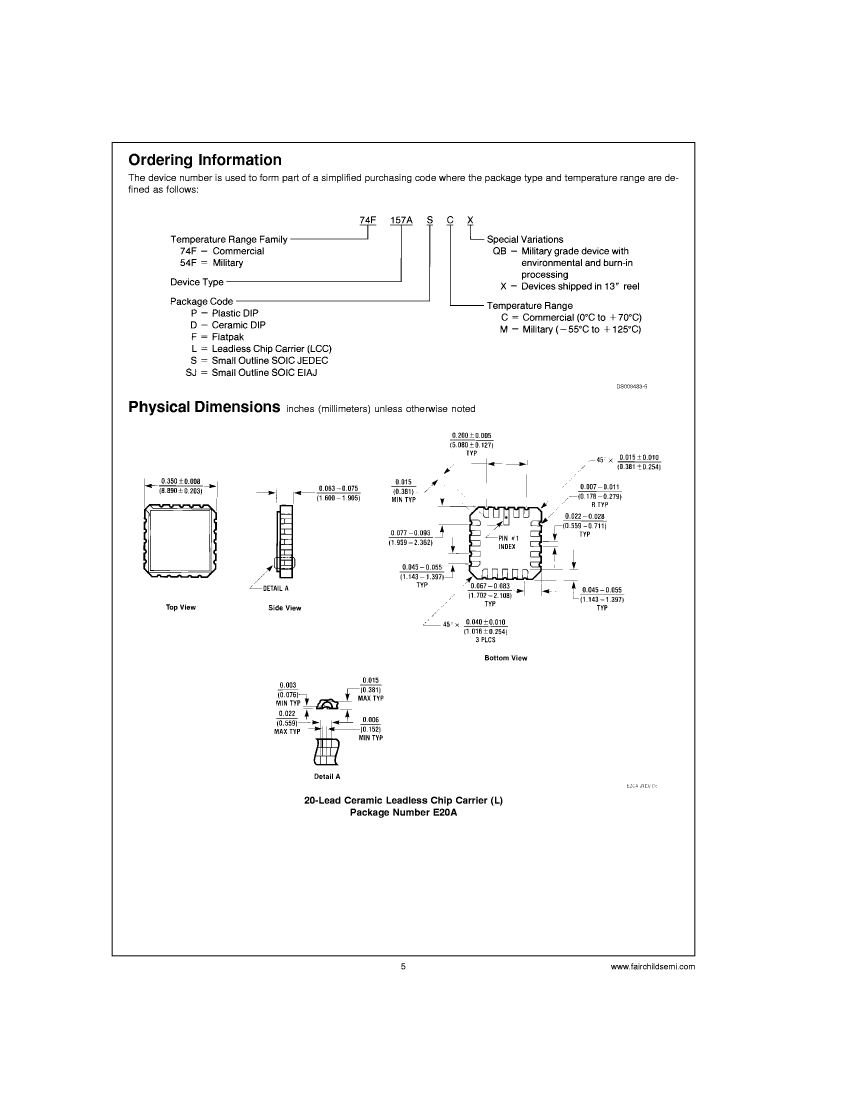

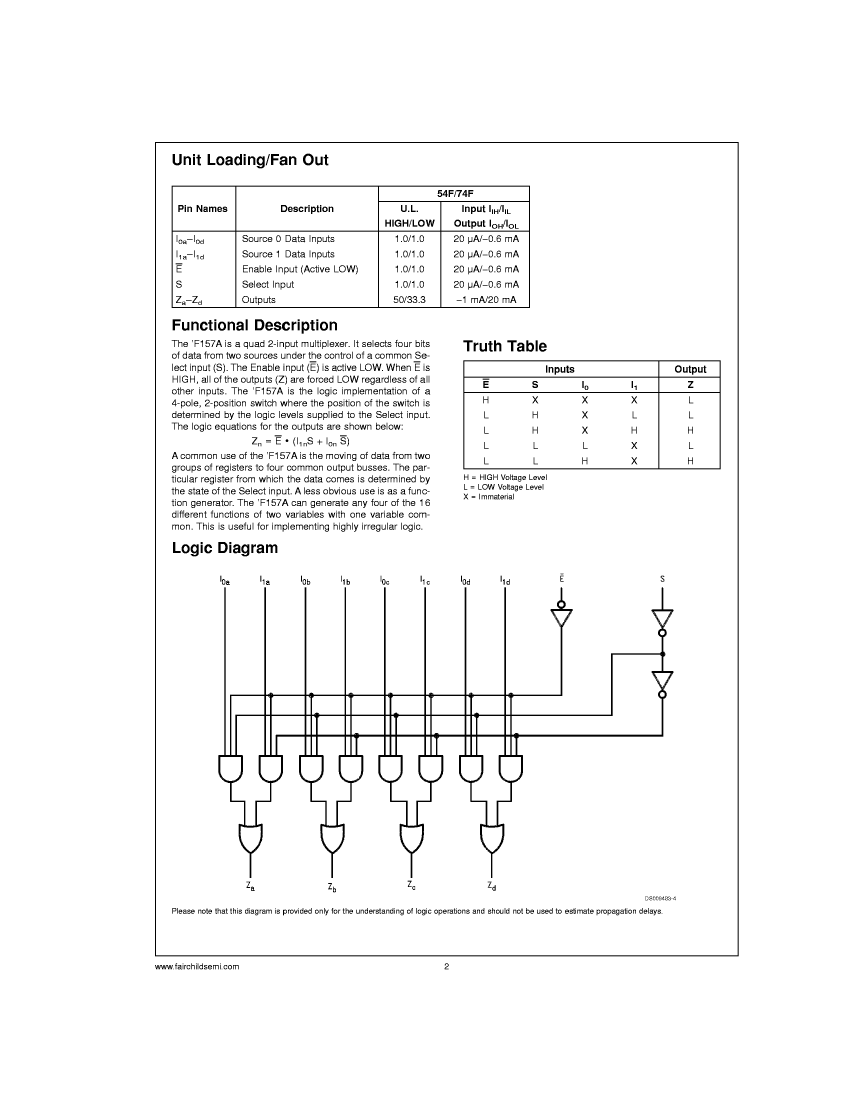

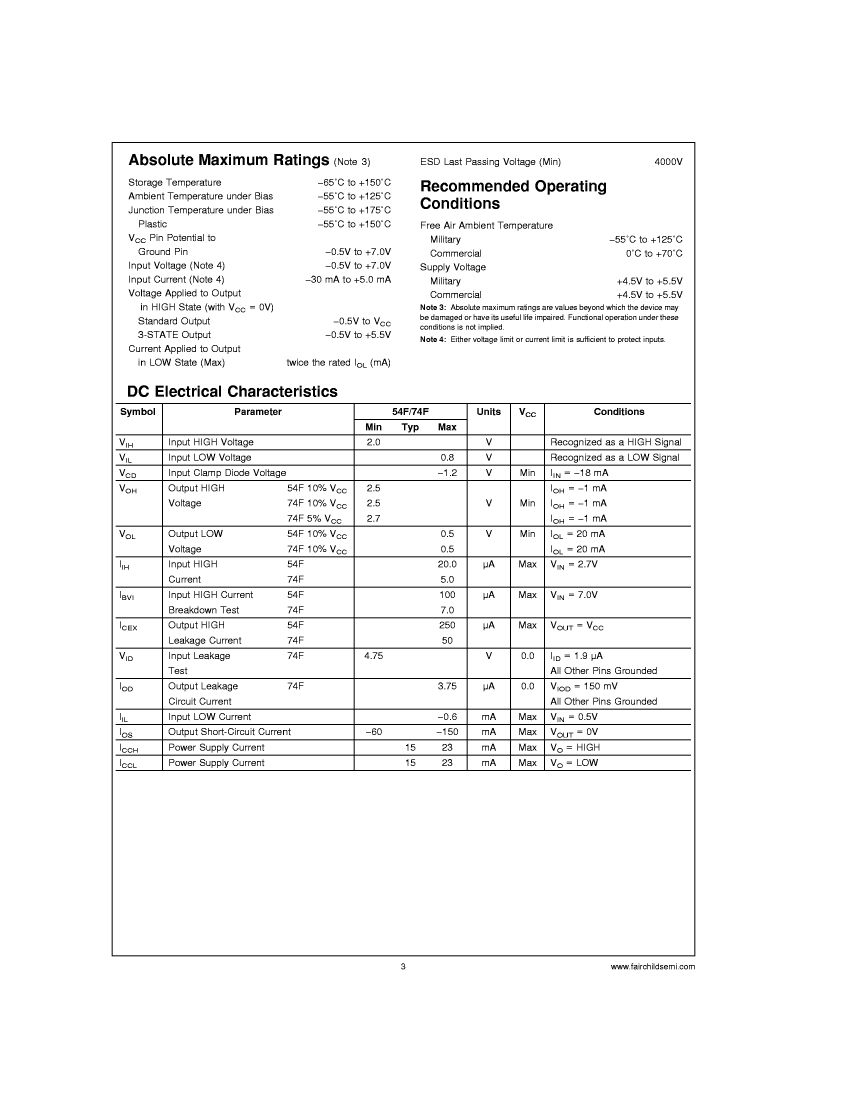

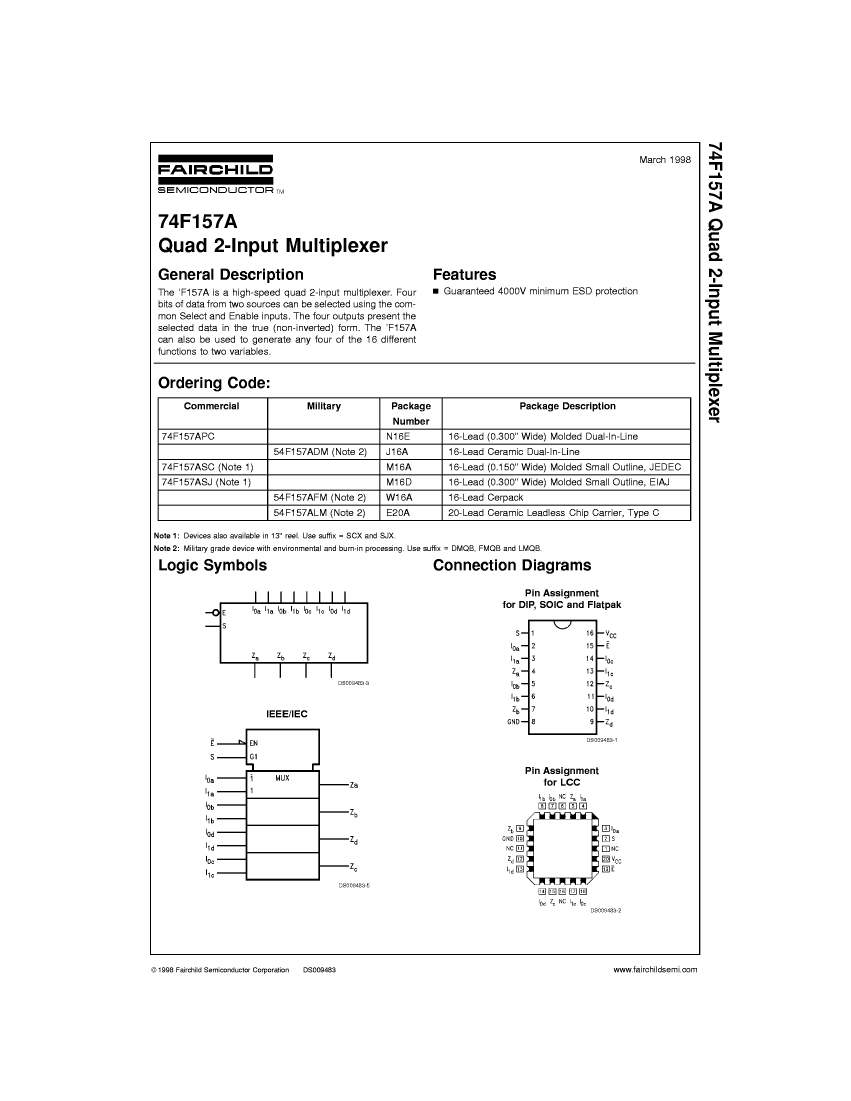

Preview

Download Datasheet

View All

54F157ALMQB Related Products

	54F157ALMQB	54F157AFMQB	54F157ADMQB
Description	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CQCC20, CERAMIC, LCC-20	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDFP16, CERPACK-16	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	QLCC	DFP	DIP
package instruction	QCCN, LCC20,.35SQ	DFP, FL16,.3	DIP, DIP16,.3
Contacts	20	16	16
Reach Compliance Code	unknown	compliant	unknown
series	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-GDFP-F16	R-GDIP-T16
JESD-609 code	e0	e0	e0
length	8.89 mm	9.6645 mm	19.43 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.02 A	0.02 A	0.02 A
Number of functions	4	4	4
Number of entries	2	2	2
Output times	1	1	1
Number of terminals	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP	DIP
Encapsulate equivalent code	LCC20,.35SQ	FL16,.3	DIP16,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE
Maximum supply current (ICC)	23 mA	23 mA	23 mA
Prop。Delay @ Nom-Sup	7.5 ns	7.5 ns	7.5 ns
propagation delay (tpd)	9 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	1.905 mm	2.032 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL
width	8.89 mm	6.604 mm	7.62 mm
Base Number Matches	1	1	1
