BU4S66TL datasheet, PDF - EEWORLD Datasheet

BU4S66TL: Description1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, SMT-5; CategoryAnalog mixed-signal IC The signal circuit; File Size123KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

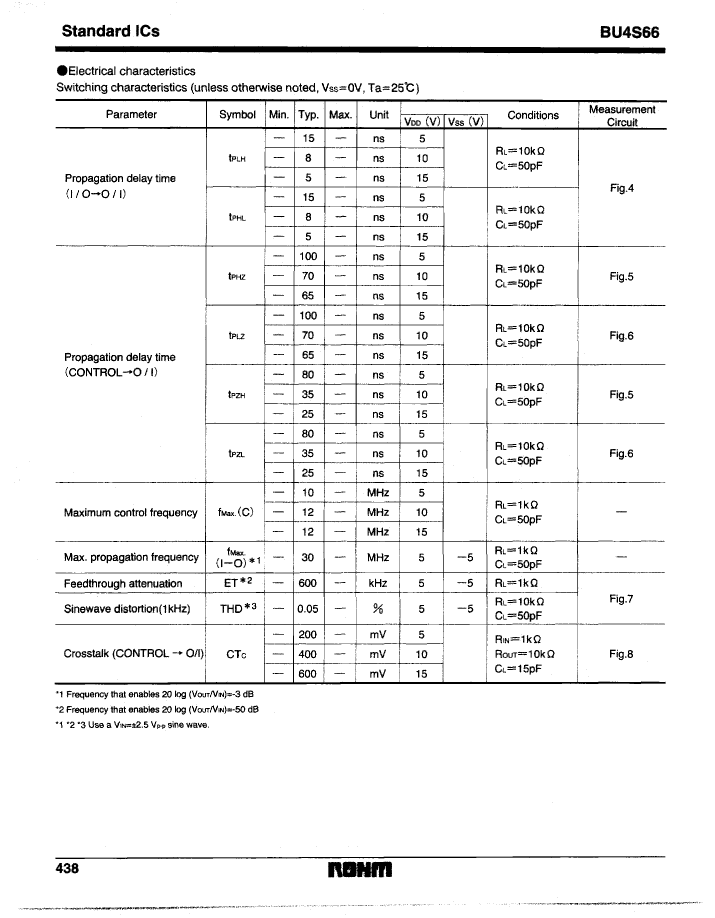

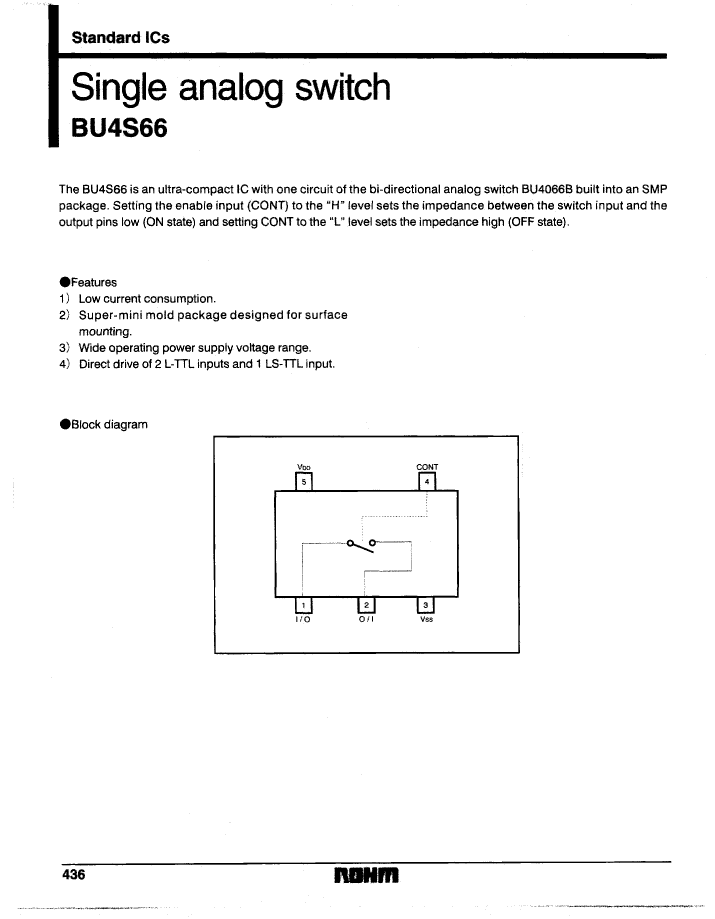

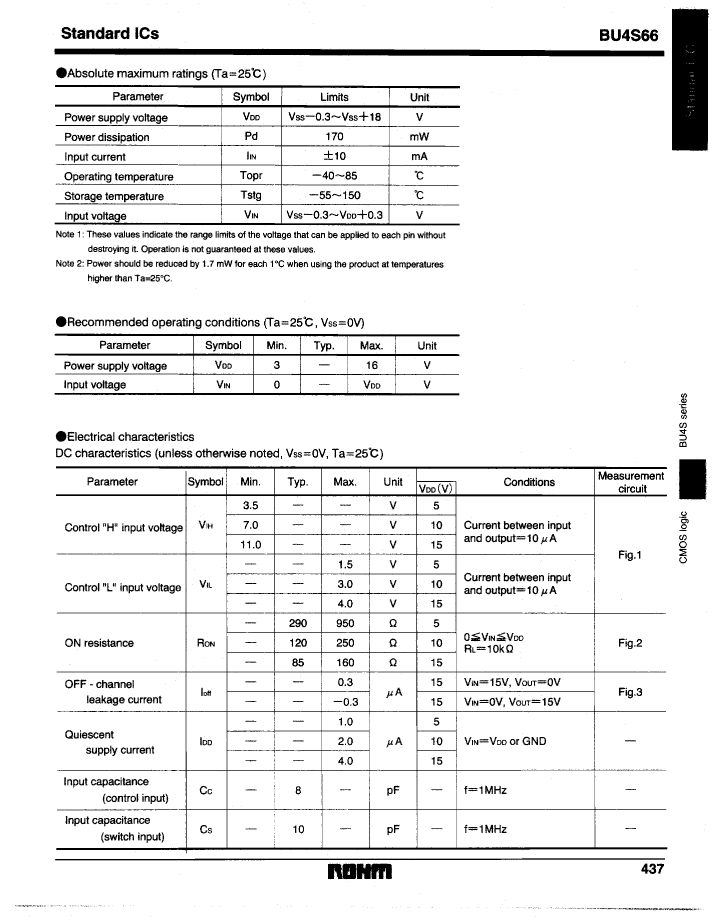

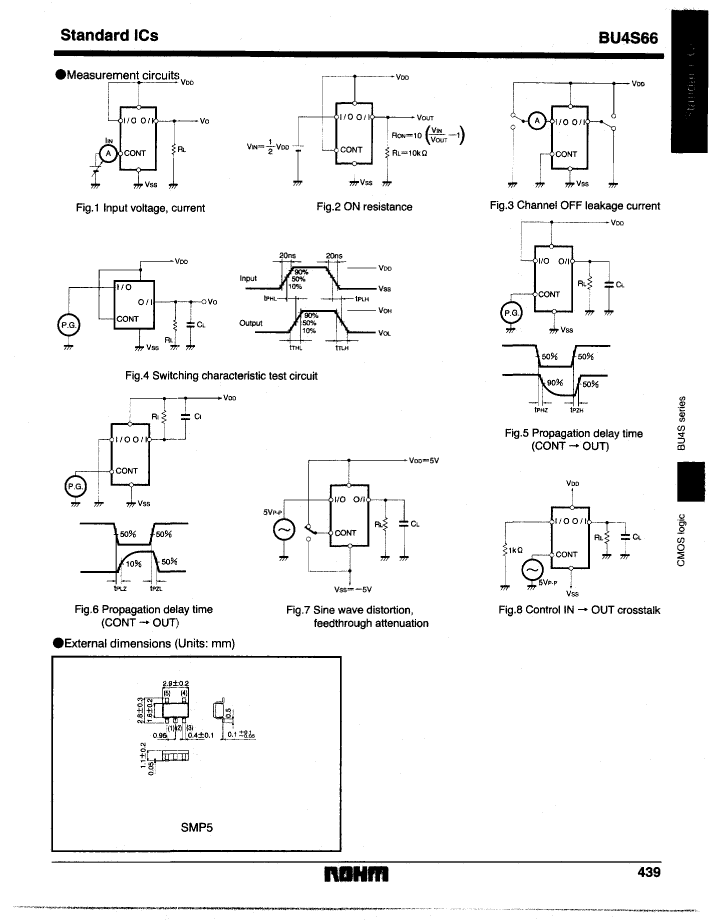

BU4S66TL Overview

1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, SMT-5

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	LSSOP,
Contacts	5
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G5
length	2.9 mm
Number of channels	1
Number of functions	1
Number of terminals	5
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.35 mm
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
width	1.6 mm
Base Number Matches	1

	BU4S66TL	BU4S66-TR	BU4S66TR	BU4S66-TL
Description	1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, SMT-5	SPST, 1 Func, 1 Channel, PDSO5, SMP5	1-CHANNEL, AUDIO/VIDEO SWITCH, PDSO5, SMT-5	SPST, 1 Func, 1 Channel, PDSO5, SMP5
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	LSSOP,	LSSOP, TSOP5/6,.11,37	LSSOP,	LSSOP,
Contacts	5	5	5	5
Reach Compliance Code	unknown	unknow	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	AUDIO/VIDEO SWITCH	SPST
JESD-30 code	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5
length	2.9 mm	2.9 mm	2.9 mm	2.9 mm
Number of channels	1	1	1	1
Number of functions	1	1	1	1
Number of terminals	5	5	5	5
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.35 mm	1.35 mm	1.35 mm	1.35 mm
Maximum supply voltage (Vsup)	16 V	16 V	16 V	16 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm	0.95 mm	0.95 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Base Number Matches	1	1	1	1
