85090-A1 Overview

General Purpose Inductor

85090-A1 Parametric

Parameter Name	Attribute value
Maker	Micross
Reach Compliance Code	compliant
ECCN code	EAR99
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	85090
Base Number Matches	1

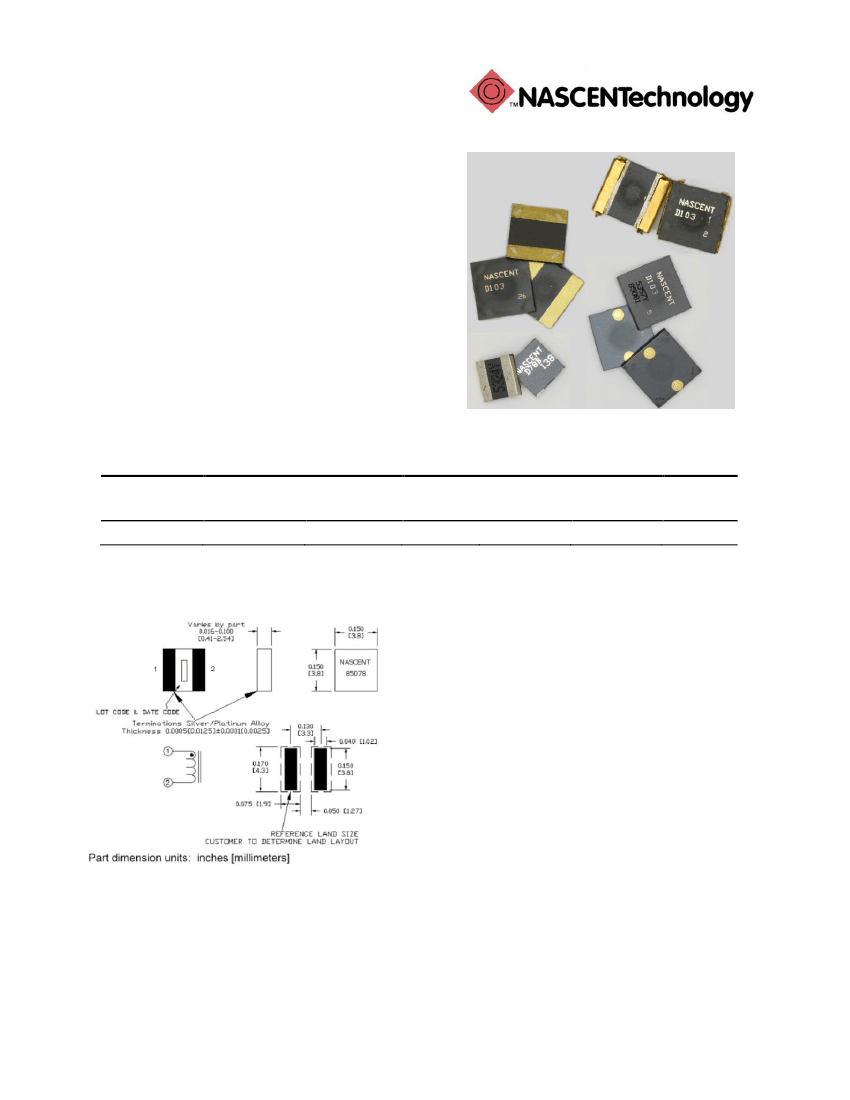

Preview

Download Datasheet

View All

LTCC

High Temperature Inductors

0.27 x 0.27 inch size

Higher Isat Series

NASCENTechnology, Inc. has developed a series of high

temperature, RoHS compliant inductors using low

temperature co-fired ceramic (LTCC) ferrite usable to

300°C that feature low profile, rugged packaging, and self

shielding characteristics. See individual data sheets for

part dimensions.

Electrical Parameters at 25 °C unless otherwise noted

Part No.

85090

†

††

No Load

†

Inductance

µH

100 mA

Inductance

µH

100 mA

Tolerance

20%

Nominal DC

Resistance

ohms

0.50

Rated

††

Current

Saturation

Current*

800

Tolerance for no load inductance is ±25 %

Current will cause a 35 °C temperature rise over ambient (measured 20 to 55 °C)

* Saturation Current is the current that results in a 35% decrease in inductance over the 100 mA Inductance.

Thickness varies by part; the range is 0.032-0.100 in [0.8-2.54 mm]

Ordering Information:

Common termination options (please add option to the end of the part number when inquiring):

-A1 Thick film AgPd with side terminations, solderable

-B0 Leads, gold plated

-C0 Thick film Au, Au wirebonding

-D0 Au over Ni, solderable

-D1 Au over Ni, Al wirebonding

For more information, please contact chipcomponents@micross.com or call on +44 (0) 1603 788967
