IPT1-116-01-S-D-DH-A-POL datasheet, PDF

IPT1-116-01-S-D-DH-A-POL: DescriptionRectangular Power Connector, 32 Contact(s), Male, Surface Mount Terminal; CategoryThe connector The connector; File Size386KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

IPT1-116-01-S-D-DH-A-POL Overview

Rectangular Power Connector, 32 Contact(s), Male, Surface Mount Terminal

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Other features	SHROUDED
Board mount options	PEG
body width	0.2 inch
body length	1.62 inch
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	IPT1
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2164 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	32
Base Number Matches	1

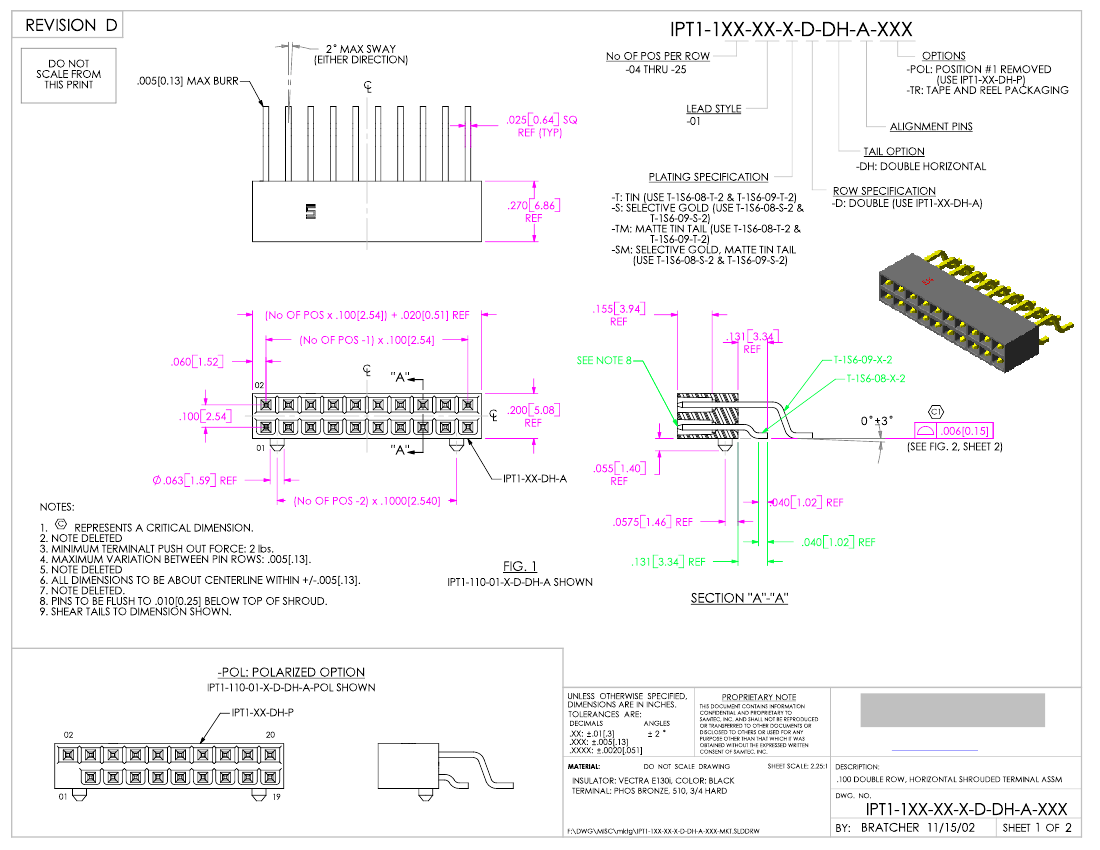

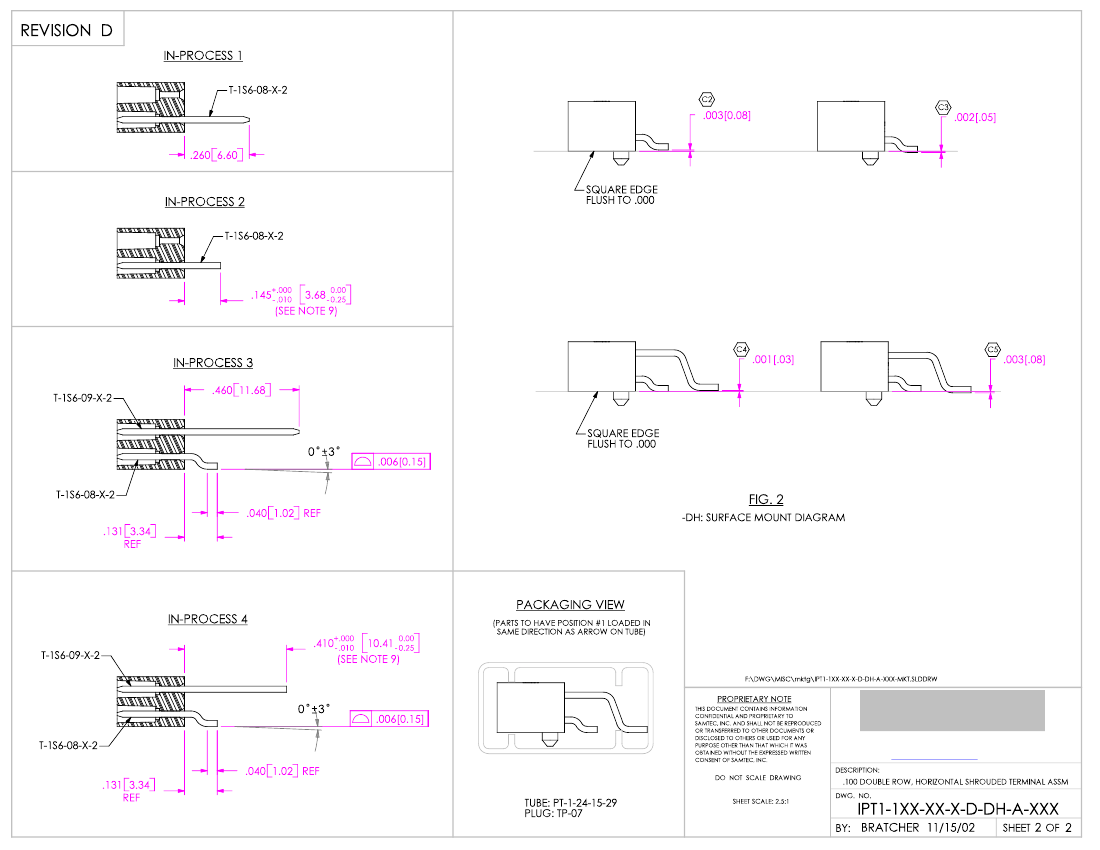

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e -M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
