8928K479: DescriptionToggle Switch, SPDT, Latched, 6A, 125VDC, Solder Terminal, Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size82KB，1 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric Compare View All

8928K479 Overview

Toggle Switch, SPDT, Latched, 6A, 125VDC, Solder Terminal, Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT

8928K479 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	LEVER
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated R load	6A@125VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	125 V
Manufacturer's serial number	8928K479
Installation features	PANEL MOUNT-THREADED
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

4.5

V11-T4-20

General Purpose Toggles

Toggle Switches

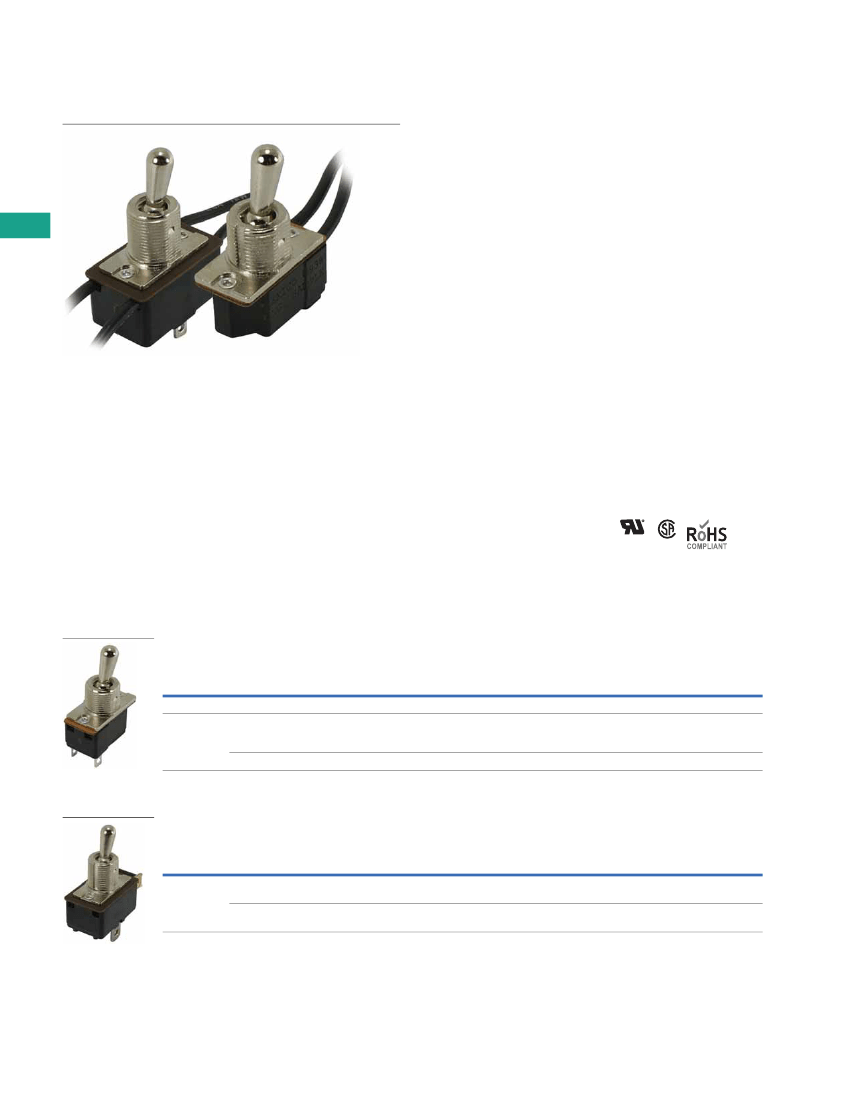

General Purpose Toggles—AC/DC Rated

Contents

Description

General Purpose Toggles—AC/DC Rated

Technical Data and Specifications . . . . . . . . . .

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page

V11-T4-21

Product Description

This line of switches employs

a quick-make/quick-break

contact mechanism. The

resultant high-speed

movement eliminates the

“teasing” of the switch and

reduces the pitting of the

contact surfaces due to

arcing. Self-cleaning and

wiping contact action assures

positive contact on switch

operation. These switches

are especially suited for use

in small motor applications.

Options

●

Lever—11/16 in

Lever seal

Mounting hardware;

furnished assembled

Other lead lengths

Standards and

Certifications

●

UL Recognized

CSA Certified

RoHS Compliant

Note

Visit www.eaton.com/vcbu for

the most up-to-date list of verified

part numbers.

Product Selection

AC/DC Rated Toggle Switches—Single-Pole

Poles

and

Throw

1PST

Circuit with Toggle in …

Position

MOM. ON

CENTER

Position

NONE

DOWN

Position

OFF

Base Circuit

See Page

V11-T4-35

Bushing

Length “B”

Inches (mm)

0.344 (8.74)

0.469 (11.91)

Lever

Length “A”

Inches (mm)

0.500 (12.70)

Catalog Number

Solder

Lugs

8280K115

8381K107

8381K108

8928K478

8928K479

Screw

Terminals

8295K107

8396K107

8396K108

—

Wire

Leads

8290K115

8391K107

8391K108

—

Rating

3A, 250 Vdc

6A, 125 Vac/Vdc 1PST

3A, 250 Vdc

1PDT

AC/DC Rated Toggle Switches—Two-Pole

Poles

and

Throw

2PST

2PDT

Circuit with Toggle in …

Position

MOM. ON

CENTER

Position

NONE

DOWN

Position

OFF

Base Circuit

See Page

V11-T4-35

Bushing

Length “B”

Inches (mm)

0.469 (11.91)

0.344 (8.74)

0.469 (11.91)

Lever

Length “A”

Inches (mm)

0.500 (12.70)

Catalog Number

Solder

Lugs

8370K107

8928K481

8373K108

8373K107

Screw

Terminals

8372K107

8928K482

8375K108

8375K107

Wire

Leads

8371K107

—

8374K108

8374K107

Rating

7A, 125V

3A, 250 Vdc

Note

Rating: 6A, 125 Vac/Vdc and 3A, 250 Vdc.

Volume 11—Vehicle and Commercial Controls

CA08100013E—November 2012 www.eaton.com

8928K479 Related Products

	8928K479	8928K481	8381K108	8391K108	8290K115
Description	Toggle Switch, SPDT, Latched, 6A, 125VDC, Solder Terminal, Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT	Toggle Switch, DPST, Momentary, 6A, 125VDC, Solder Terminal, Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT	Toggle Switch, SPST, Latched, 6A, 125VDC, Solder Terminal, Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT	Toggle Switch, SPST, Latched, 6A, 125VDC, Wire Terminal, Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT	Toggle Switch, SPST, Latched, 3A, 250VDC, Wire Terminal, Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	LEVER	LEVER	LEVER	LEVER	LEVER
Maximum contact current (DC)	6 A	6 A	6 A	6 A	3 A
Contact (DC) maximum rated R load	6A@125VDC	6A@125VDC	6A@125VDC	6A@125VDC	3A@250VDC
Maximum contact voltage (DC)	125 V	125 V	125 V	125 V	250 V
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
surface mount	NO	NO	NO	NO	NO
Switch action	LATCHED	MOMENTARY	LATCHED	LATCHED	LATCHED
switch function	SPDT	DPST	SPST	SPST	SPST
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	SOLDER	SOLDER	SOLDER	WIRE	WIRE
Base Number Matches	1	1	1	1	1
Contact (AC) maximum rated R load	6A@125VAC	6A@125VAC	6A@125VAC	6A@125VAC	-
Maximum contact current (AC)	6 A	6 A	6 A	6 A	-
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	-
