FemtoClock
®
Crystal-to-3.3V LVPECL
Clock Generator
ICS843031
DATA SHEET
G
ENERAL
D
ESCRIPTION
The ICS843031 is a 1 Gigabit Ethernet Clock Generator. The
ICS843031 can synthesize 1 Gigabit Ethernet, SONET, or
Serial ATA reference clock frequencies with the appropriate
choice of crystal and output divider. The ICS843031 has
excellent phase jitter performance and is packaged in a small
8-pin TSSOP, making it ideal for use in systems with limited
board space.
F
EATURES
•
One differential 3.3V LVPECL output
•
Crystal oscillator interface designed for 18pF parallel resonant
crystals
•
Output frequency range: 290MHz - 350MHz
•
VCO frequency range: 580MHz - 700MHz
•
RMS phase jitter @312.5MHz (1.875MHz - 20MHz):
0.475ps (typical)
RMS phase jitter @318.75MHz (1.875MHz - 20MHz):
0.475ps (typical)
•
3.3V operating supply
•
0°C to 70°C ambient operating temperature
•
Available in both standard (RoHS 5) and lead-free (RoHS 6)
packages
F
REQUENCY
T
ABLE
Inputs
Crystal Frequency (MHz)
25.92
26.04166
26.5625
M/N Ratio (Multiplier)
12
12
12
Output Frequency
(MHz)
311.04
312.5
318.75
B
LOCK
D
IAGRAM
P
IN
A
SSIGNMENT
V
CC
XTAL_OUT
XTAL_IN
V
EE
1
2
3
4
8
7
6
5
Q0
nQ0
V
CC
PWR_DN
XTAL_IN
OSC
XTAL-OUT
Phase
Detector
VCO
÷2
nQ0
Q0
ICS843031
8-Lead TSSOP
4.40mm x 3.0mm x 0.925mm
package body
G Package
Top View
÷24
(fixed)
PWR_DN
ICS843031AG REVISION A OCTOBER 5, 2011
1
©2011
Integrated Device Technology, Inc.
ICS843031 Data Sheet
FEMTOCLOCK
®
CRYSTAL-TO-3.3V LVPECL CLOCK GENERATOR
T
ABLE
1. P
IN
D
ESCRIPTIONS
Number
1, 6
2, 3
4
5
7, 8
Name
V
CC
XTAL_OUT,
XTAL_IN
V
EE
PWR_DN
nQ0, Q0
Power
Input
Power
Input
Output
Pullup
Type
Description
Core supply pin.
Cr ystal oscillator interface. XTAL_IN is the input,
XTAL_OUT is the output.
Negative supply pin.
Output state control input. High impedance when LOW (oscillator
stops). LVCMOS/LVTTL interface levels.
Differential clock outputs. LVPECL interface levels.
NOTE:
Pullup
refers to internal input resistors. See Table 2, Pin Characterristics, for typical values.
T
ABLE
2. P
IN
C
HARACTERISTICS
Symbol
C
IN
R
PULLUP
Parameter
Input Capacitance
Input Pullup Resistor
Test Conditions
Minimum
Typical
4
51
Maximum
Units
pF
kΩ
CS843031AG REVISION A OCTOBER 5, 2011
2
©2011
Integrated Device Technology, Inc.
ICS843031 Data Sheet
FEMTOCLOCK
®
CRYSTAL-TO-3.3V LVPECL CLOCK GENERATOR
A
BSOLUTE
M
AXIMUM
R
ATINGS
Supply Voltage, V
CC
Inputs, V
I
Outputs, I
O
Continuous Current
Surge Current
Package Thermal Impedance,
θ
JA
Storage Temperature, T
STG
4.6V
-0.5V to V
CC
+ 0.5V
50mA
100mA
101.7°C/W (0 mps)
-65°C to 150°C
NOTE: Stresses beyond those listed under Absolute
Maximum Ratings may cause permanent damage to the
device. These ratings are stress specifications only. Func-
tional operation of product at these conditions or any condi-
tions beyond those listed in the
DC Characteristics
or
AC
Characteristics
is not implied. Exposure to absolute maxi-
mum rating conditions for extended periods may affect prod-
uct reliability.
T
ABLE
3A. P
OWER
S
UPPLY
DC C
HARACTERISTICS
,
V
CC
= 3.3V±5%, T
A
=0°C
TO
70°C
Symbol
V
CC
I
EE
Parameter
Core Supply Voltage
Power Supply Current
PWR_DN = 1
PWR_DN = 0
Test Conditions
Minimum
3.135
Typical
3.3
Maximum
3.465
105
<1
Units
V
mA
mA
T
ABLE
3B. LVCMOS/LVTTL DC C
HARACTERISTICS
,
V
CC
= 3.3V±5%, T
A
=0°C
TO
70°C
Symbol
V
IH
V
IL
I
IH
I
IL
Parameter
Input High Voltage
Input Low Voltage
Input High Current
Input Low Current
PWR_DN
PWR_DN
V
CC
= V
IN
= 3.465V
V
CC
= 3.465V, V
IN
= 0V
-150
Test Conditions
Minimum
2
-0.3
Typical
Maximum
V
CC
+ 0.3
0.8
5
Units
V
V
µA
µA
T
ABLE
3C. LVPECL DC C
HARACTERISTICS
,
V
CC
= 3.3V±5%, T
A
=0°C
TO
70°C
Symbol
V
OH
V
OL
V
SWING
Parameter
Output High Voltage; NOTE 1
Output Low Voltage; NOTE 1
Peak-to-Peak Output Voltage Swing
Test Conditions
Minimum
V
CC
- 1.4
V
CC
- 2.0
0.6
Typical
Maximum
V
CC
- 0.9
V
CC
- 1.7
1.0
Units
V
V
V
NOTE 1: Outputs terminated with 50
Ω
to V
CC
- 2V.
CS843031AG REVISION A OCTOBER 5, 2011
3
©2011
Integrated Device Technology, Inc.
ICS843031 Data Sheet
FEMTOCLOCK
®
CRYSTAL-TO-3.3V LVPECL CLOCK GENERATOR
T
ABLE
4. C
RYSTAL
C
HARACTERISTICS
Parameter
Mode of Oscillation
Frequency
Equivalent Series Resistance (ESR)
Shunt Capacitance
Drive Level
12
Test Conditions
Minimum
Typical
Fundamental
40
50
7
1
MHz
Ω
pF
mW
Maximum
Units
T
ABLE
5. AC C
HARACTERISTICS
,
V
CC
= 3.3V±5%, T
A
=0°C
TO
70°C
Symbol
f
OUT
Parameter
Output Frequency
RMS Phase Jitter (Random);
NOTE 1
Output Rise/Fall Time
312.5MHz, Integration Range:
1.875MHz to 20MHz
318.75MHz, Integration Range:
1.875MHz to 20MHz
20% to 80%
Test Conditions
Minimum
290
0.475
0.475
200
46
600
54
Typical
Maximum
350
Units
MHz
ps
ps
ps
%
t
jit(Ø)
t
R
/ t
F
odc
Output Duty Cycle
NOTE 1: Please refer to the Phase Noise Plot.
CS843031AG REVISION A OCTOBER 5, 2011
4
©2011
Integrated Device Technology, Inc.
ICS843031 Data Sheet
FEMTOCLOCK
®
CRYSTAL-TO-3.3V LVPECL CLOCK GENERATOR

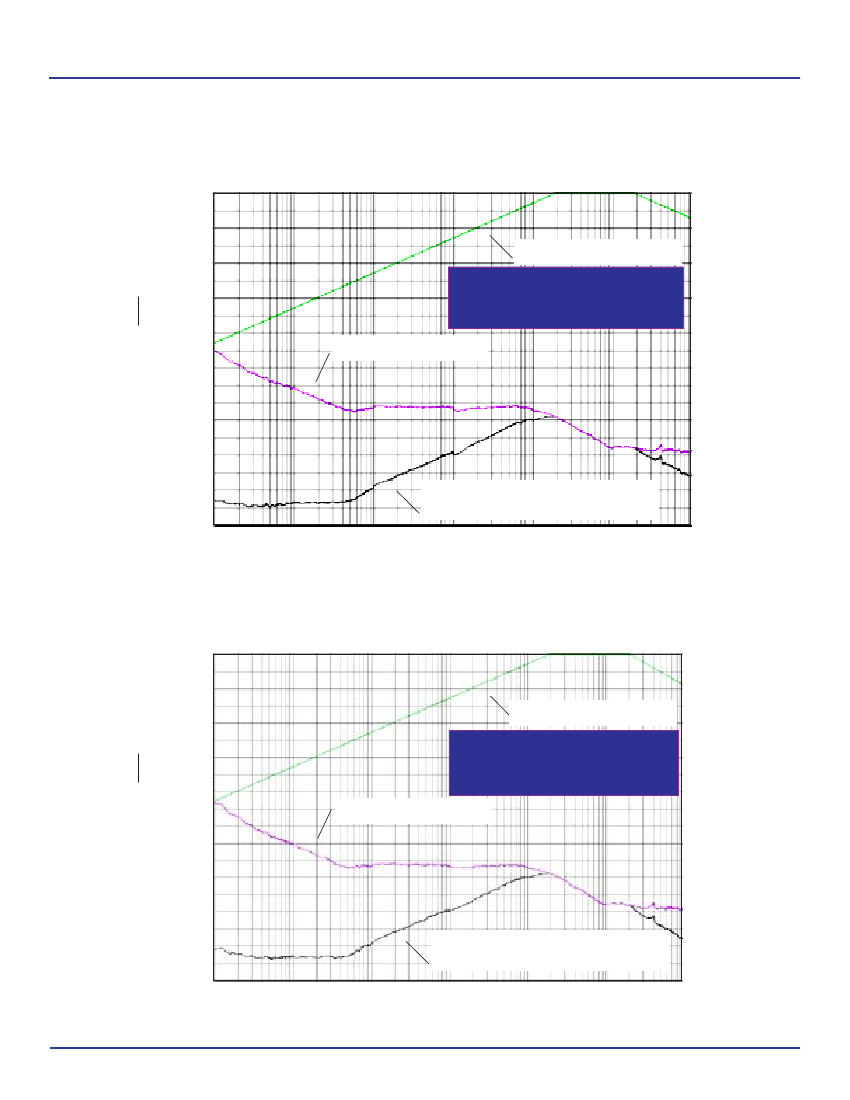

T
YPICAL
P
HASE
N
OISE AT
312.5MH
Z
0
-30
-40
-50
-60
-70
-80
-90
-100
➤
1 Gigabit Ethernet Filter
312.5MHz
RMS Phase Jitter (Random)
1.875Mhz to 20MHz = 0.475ps (typical)
-10
-20
N
OISE
P
OWER
dBc
Hz
Raw Phase Noise Data
➤
-110
-120
-130
-140
-150
-170
-180
-190
100
1k
-160
➤
10k
Phase Noise Result by adding 1
Gigabit Ethernet Filter to raw data
100k
1M
10M
100M
O
FFSET
F
REQUENCY
(H
Z
)
T
YPICAL
P
HASE
N
OISE AT
318.75MH
Z
0
-30
-40
-50
➤
1 Gigabit Ethernet Filter
318.75MHz
RMS Phase Jitter (Random)
1.875Mhz to 20MHz = 0.475ps
-10
-20
N
OISE
P
OWER
dBc
Hz
-60
-70
-80
-90
-100
-110
-120
-130
-140
-150
Raw Phase Noise Data
➤
➤
100
1k
10k
-160
-170
-180
-190
Phase Noise Result by adding 1
Gigabit Ethernet Filter to raw data
100k
1M
10M
100M
O
FFSET
F
REQUENCY
(H
Z
)
CS843031AG REVISION A OCTOBER 5, 2011
5
©2011
Integrated Device Technology, Inc.
