DC/DC Converters
2 Watts
IH Series
•
XPiQ inc.
Intelligent
Design
Quality
Product
0.22 in
2
Board Space
•
75% Efficiency
•
5, 12, 24 and 48 VDC Inputs
•
1000/3000 VDC Isolation
•
SIP and DIP Packages
•
Low Cost
Specification
All specifications are typical at nominal line, full load & +25°C
Input
Input Voltage
•
Input Reflected Noise •
(20 MHz) BW
±10%
100 mV pk-pk max
Environmental
Input Output Isolation
Temperature
Coefficient
Operating
Temperature Range
Storage
Temperature Range
•
•
•
•
1000 VDC/3000 VDC for ‘H’ option
0.03%/°C max
-40 °C to +85 °C
-55 °C to +125 °C
Output
Output Voltage
•
Accuracy
Output Ripple & Noise •
(20 MHz BW)
Line Regulation
•
Load Regulation
•
(20% to 100% Load)
±5%
150 mV pk-pk max
1.2%/1% of Vin
±10%
General
Efficiency
•
At full load 9 V, 12 V & 15 V outputs
80% typical
At full load 3.3V and 5V outputs
70% typical
1 second max
Short Circuit
Protection
•
•
www.XPiQ.com
PH: 508 429.9883
FAX: 800 226.2100
Email: sales@xpiq.com
Holliston, MA 01746 USA
•
OUTPUT VOLTAGE & CURRENT RATINGS
Output
Voltage
±3.3 VDC
±5.0 VDC
±9.0 VDC
±12.0 VDC
±15.0 VDC
Notes
Add suffix “S” for single-in-line package, suffix “D” for dual-in-line package.
Add suffix “H” for 3000 VDC isolation.
1000 VDC Isolation
(Standard Pin Output)
3000 VDC Isolation
(H Option)
Output
Current
±300 mA
±200 mA
±111 mA
±84 mA
±66 mA
5 VDC
Input
IH0503
IH0505
IH0509
IH0512
IH0515
12 VDC
Input
IH1203
IH1205
IH1209
IH1212
IH1215
24 VDC
Input
IH2403
IH2405
IH2409
IH2412
IH2415
48 VDC
Input
IH4803
IH4805
IH4809
IH4812
IH4815
IH
•

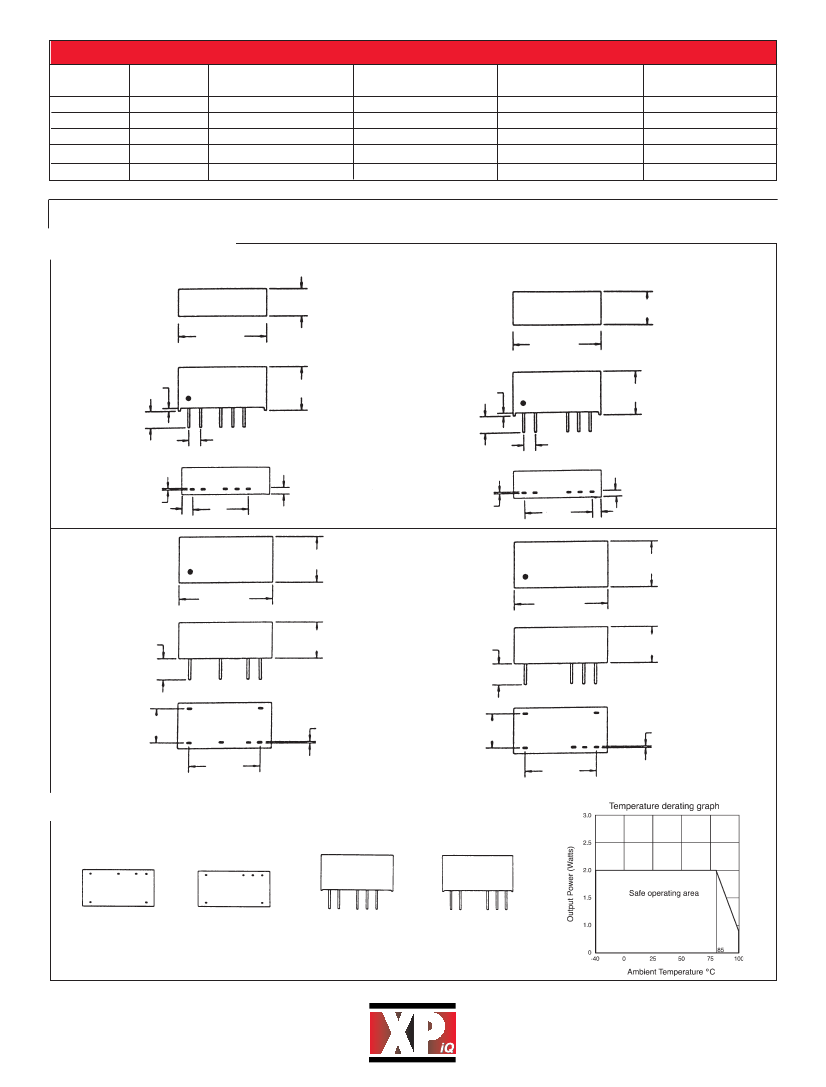

Mechanical Details
0.300 MAX
0.780 MAX
0.780 MAX
0.015
0.120 MIN
0.100
0.400 MAX
0.015
0.400 MAX
0.120 MIN
0.100
0.045
BOTTOM
0.010 MAX
0.9
0.500
0.045
0.010 MAX
0.600
0.09
0.400 MAX
0.400 MAX
0.800 MAX
0.800 MAX
0.290 MAX*
0.110 MIN
0.110 MIN
0.310 MAX
0.300 TYP
0.010
0.300 TYP
0.010
0.600
* 0.310 max for 48VDC input models
0.600
Pins .01 x .02 inches
Pin Connections & Derating Curve
1000 VDC Isolation
Vcc
14
-V
11
+V 0V
9 8
3000 VDC Isolation
Vcc
14
-V 0V +V
10 9 8
1000 VDC Isolation
3000 VDC Isolation
1
GND
7
NC
1
GND
7
NC
1 2
Vcc GND
4 5 6
-V 0V +V
1 2
Vcc GND
5
-V
6
0V
7
+V
DUAL-IN-LINE PACKAGE
(TOP VIEW)
SINGLE-IN-LINE PACKAGE
(TOP VIEW)
www.XPiQ.com
PH: 508 429.9883
FAX: 800 226.2100
Email: sales@xpiq.com
Holliston, MA 01746 USA
