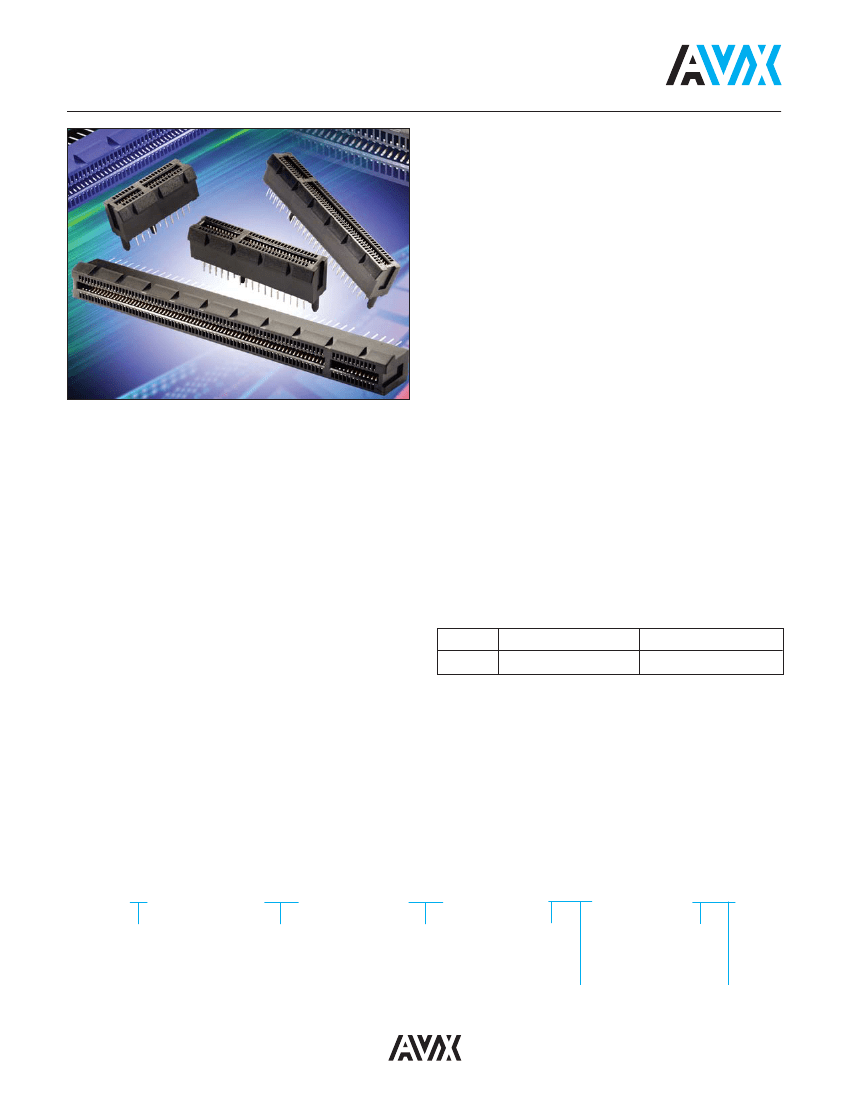

6325 PCI Express
Card Edge Connectors
GENERAL DESCRIPTION
The standard vertical card edge connectors are specifically
designed to implement PCI Express technology for desktop
PCs and server systems. These connectors allow the end
user to upgrade the PC with an “add on graphics card”.
Therefore complete range is available to support basic speed
x1 to high-speed x16 bandwidth requirements.

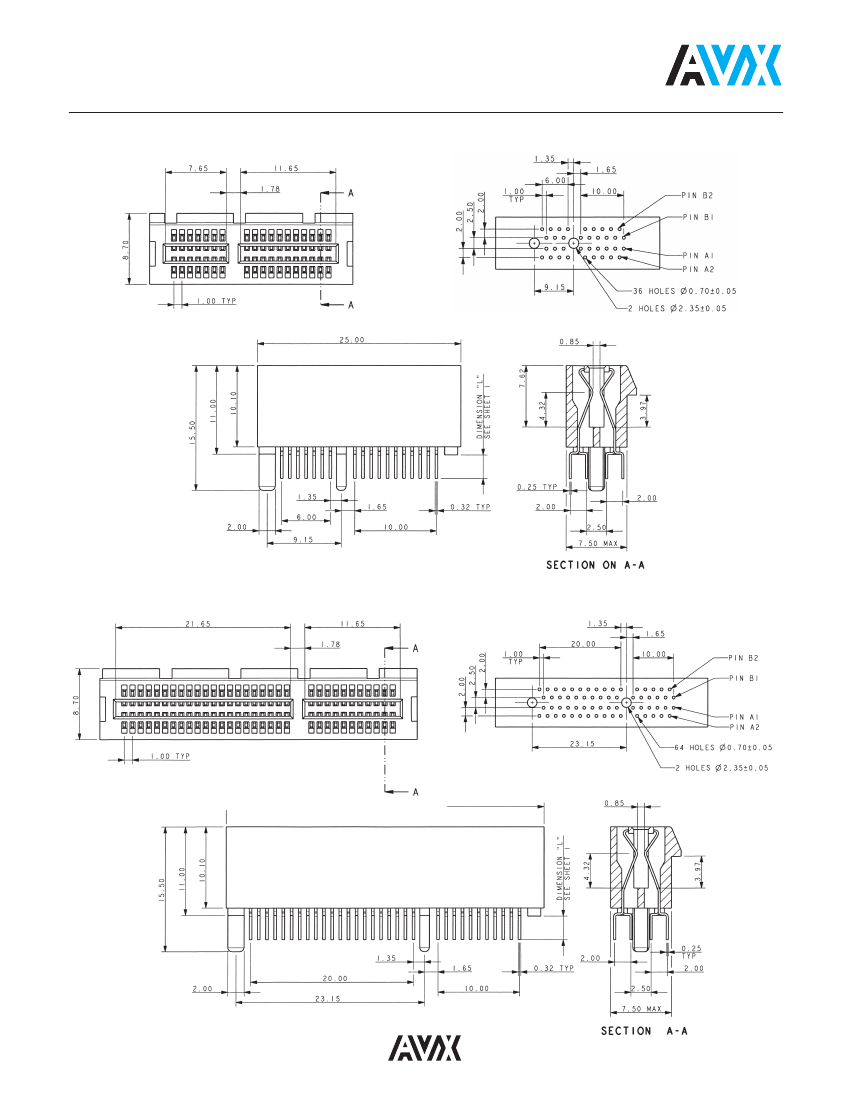

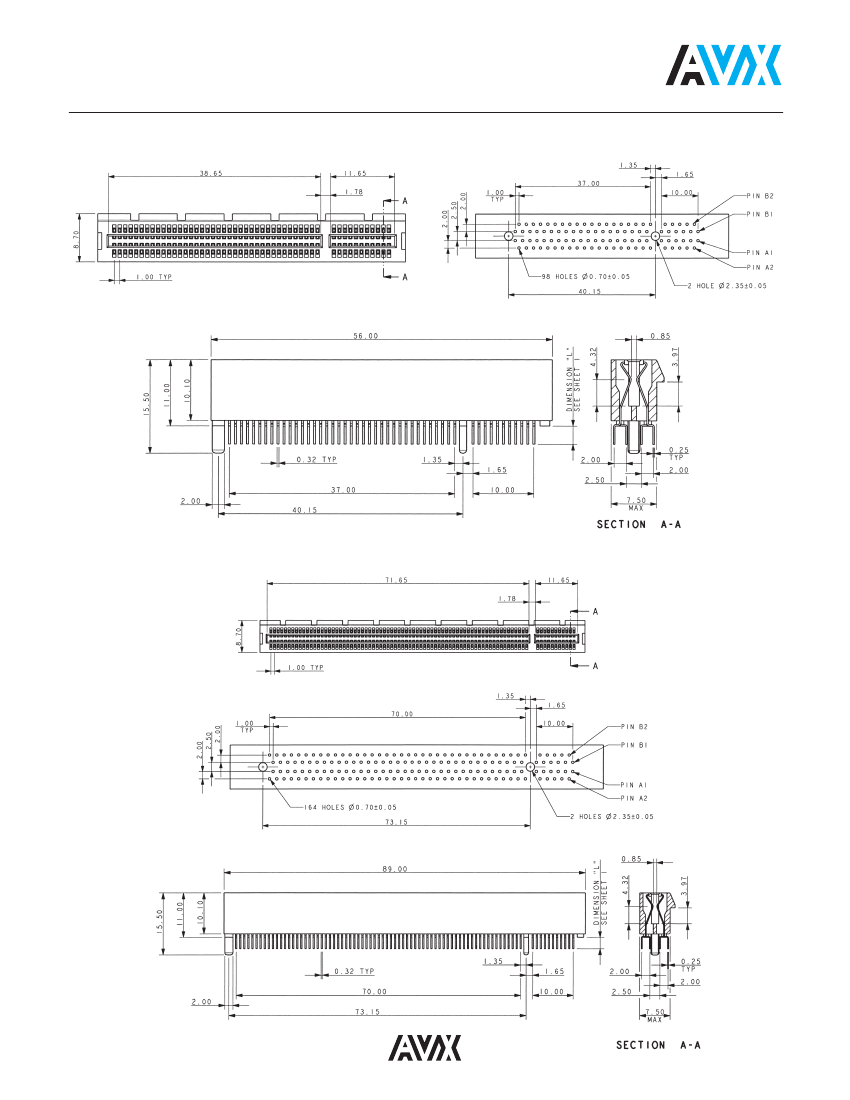

The connectors are available in 36(x1), 64(x4), 98(x8) and
164(x16) contact positions, all in a 1.00mm pitch. Therefore
each range can support different bandwidth requirements for
an “add on” graphics card.
These connectors are ideal for use in a broad range of com-
puting/data communication applications, including desktop
PCs, Servers and Workstations.
All connectors support PCI Express signal and Power
requirements as well as the interface between system board
and the add on card specification.
FEATURES/BENEFITS
• Different tail (contact) length (2.3mm or 3.00mm) available
to support differing motherboard thickness.
• Tails are offset to form 4 rows on a 2.00mm pitch, thus
making wave soldering easier.
• All connectors come with locating bosses to help align the
connector to PCB (motherboard).
• Raised ridge at the topside of the connector, which can be
used to lock/retain the graphic card.
• Molded polarization key prevents improper insertion of the
PCB.

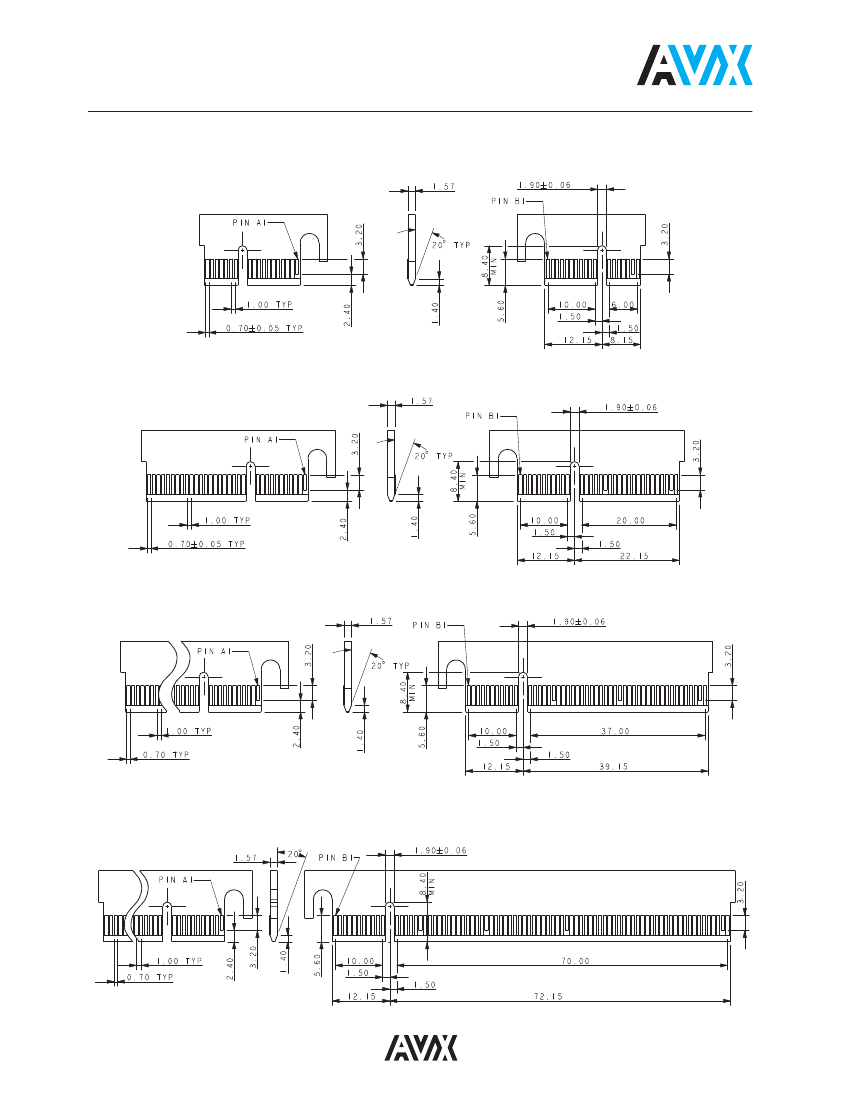

• Connectors have slots to accept “add in” cards with thick-
ness of 1.58mm (0.062in).
• Conforms to PCI Express specification on connectors.
• Available in black or white color.
TECNICAL SPECIFICATIONS
Current Rating:
Contact Resistance:
Contact Material:
Contact Plating:
Insulator Material:
Insulation Resistance:
1.1 Ampere, maximum
30 milliohm, maximum
Phosphor Bronze
See table below
30% Glass Filled Nylon
100 Megaohms 50 50V AC
Plating Table
Code
6
Contact Area
15µ" AuNi (0.38µM)
Terminal Area
Tin
APPLICATIONS
•
•
•
•
Desktop PCs
Servers
Work Stations
Factory Automation Systems
HOW TO ORDER
20
Connector
6325
Series
098
Number of Contacts
0 02
Color
00 6
Variation
0 = Black
1 = White
Tail Length
00 = Standard

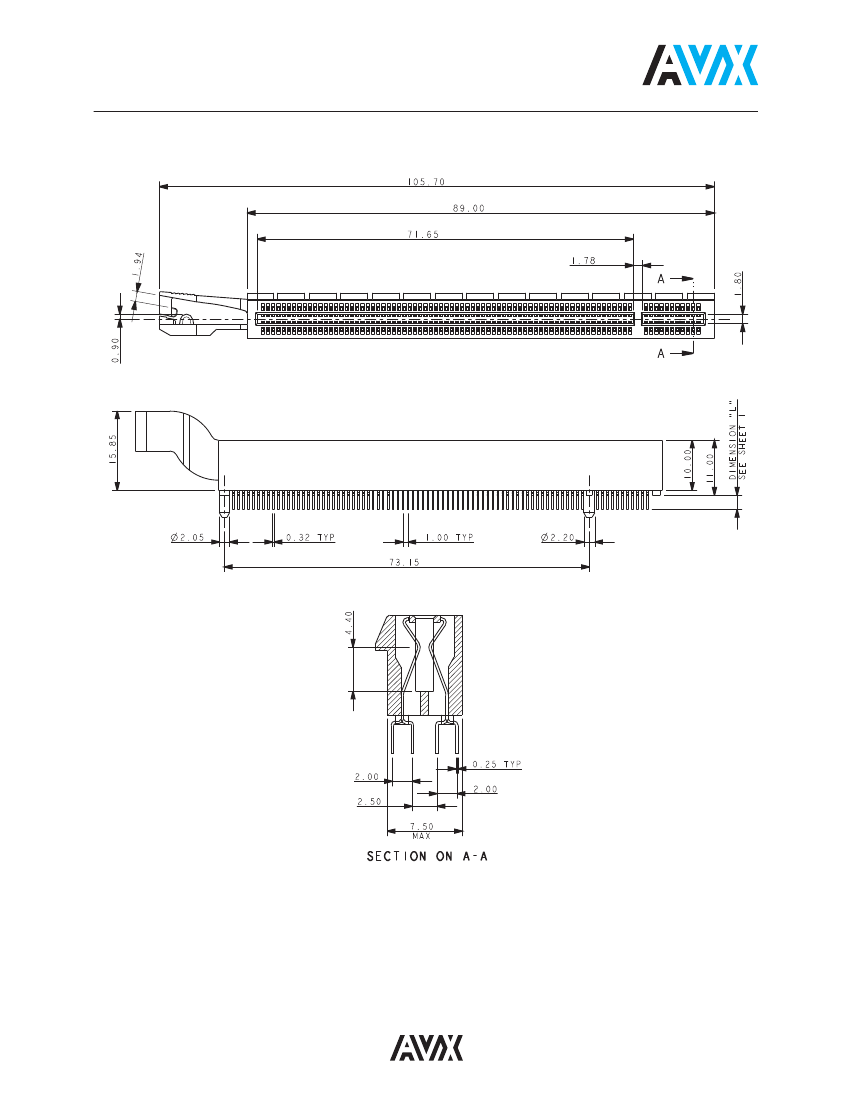

01 = Latch
(164 only)
Plating
1 = 2.30mm
2 = 3.00mm
6 = Tin
