251-251-0000G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 251-251-0000G

251-251-0000G: DescriptionRF Connector Adapter, SMA-SMA, Female-Female, Jack; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

251-251-0000G Overview

RF Connector Adapter, SMA-SMA, Female-Female, Jack

251-251-0000G Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Adapter type	SMA-SMA
Other features	STANDARD: MIL-C-39012
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	IN
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.45
Base Number Matches	1

Preview

Download Datasheet

View All

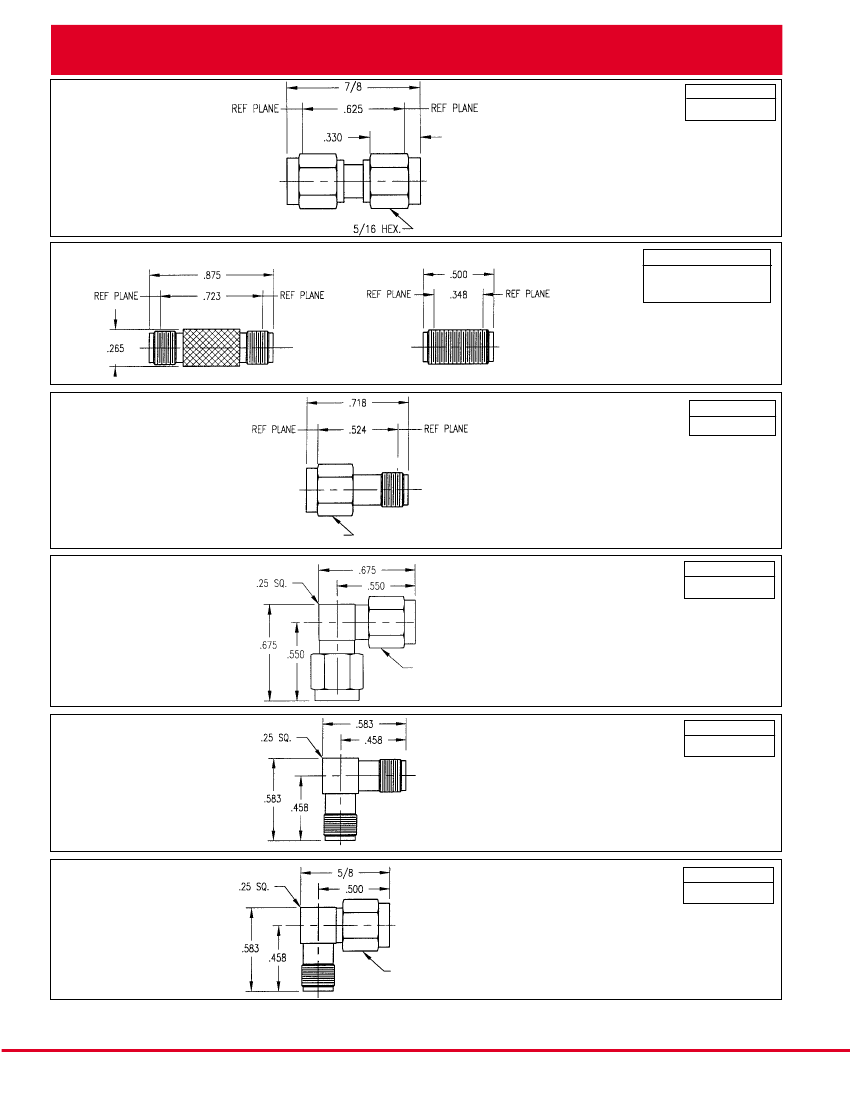

SMA IN-SERIES:

Plug to Plug

Stainless Steel Adapters

Part Number

250-250-0000G

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Jack to Jack

Figure 2

Part Number Figure

251-251-0000G

251-251-0001G

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Figure 1

Plug to Jack

Part Number

250-251-0000G

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

5/16 HEX

Right Angle

Plug to Plug

Part Number

252-252-0000G

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

5/16 HEX

Right Angle

Jack to Jack

Part Number

253-253-0000G

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Right Angle

Plug to Jack

Part Number

252-253-0000G

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

5/16 HEX

Note: Dimensions shown in inches.

Winchester/Retconn

RF/14

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

251-251-0000G Related Products

	251-251-0000G	250-251-0000G	253-253-0000G	252-253-0000G	252-252-0000G	250-250-0000G	251-251-0001G
Description	RF Connector Adapter, SMA-SMA, Female-Female, Jack	RF Connector Adapter, SMA-SMA, Male-Female, Jack	RF Connector Adapter, SMA-SMA, Female, Jack	RF Connector Adapter, SMA-SMA, Male-Female, Jack	RF Connector Adapter, SMA-SMA, Male, Plug	RF Connector Adapter, SMA-SMA, Male-Male, Plug	RF Connector Adapter, SMA-SMA, Female, Jack
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown
Adapter type	SMA-SMA	SMA-SMA	SMA-SMA	SMA-SMA	SMA-SMA	SMA-SMA	SMA-SMA
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	JACK	JACK	JACK	JACK	PLUG	PLUG	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE	MALE-FEMALE	FEMALE	MALE-FEMALE	MALE	MALE-MALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	IN	IN	IN	IN	IN	IN	IN
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO
voltage standing wave ratio	1.45	1.45	1.45	1.45	1.45	1.45	1.45
Base Number Matches	1	1	1	1	1	1	1
