8798660000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8798660000

8798660000: DescriptionPower/Signal Relay, SPDT, Momentary, 750mW (Coil), AC Input, AC Output, DIN-Rail Mount; CategoryMechanical and electronic products relay; File Size54KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8798660000 Overview

Power/Signal Relay, SPDT, Momentary, 750mW (Coil), AC Input, AC Output, DIN-Rail Mount

8798660000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COIL OPERATING VOLTAGE (AC): 172.5 V, COIL RELEASE VOLTAGE (AC): 34.5 V
body width	15.5 mm
body height	62 mm
Body length or diameter	78.5 mm
Coil current (AC) maximum value	0.003 A
Coil power	750 mW
Maximum coil voltage (AC)	230 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Installation features	DIN-RAIL MOUNT
operating hours	7 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	78.5mm x 15.5mm x 62mm
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	3 ms
seal	IP20
surface mount	NO
Termination type	CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

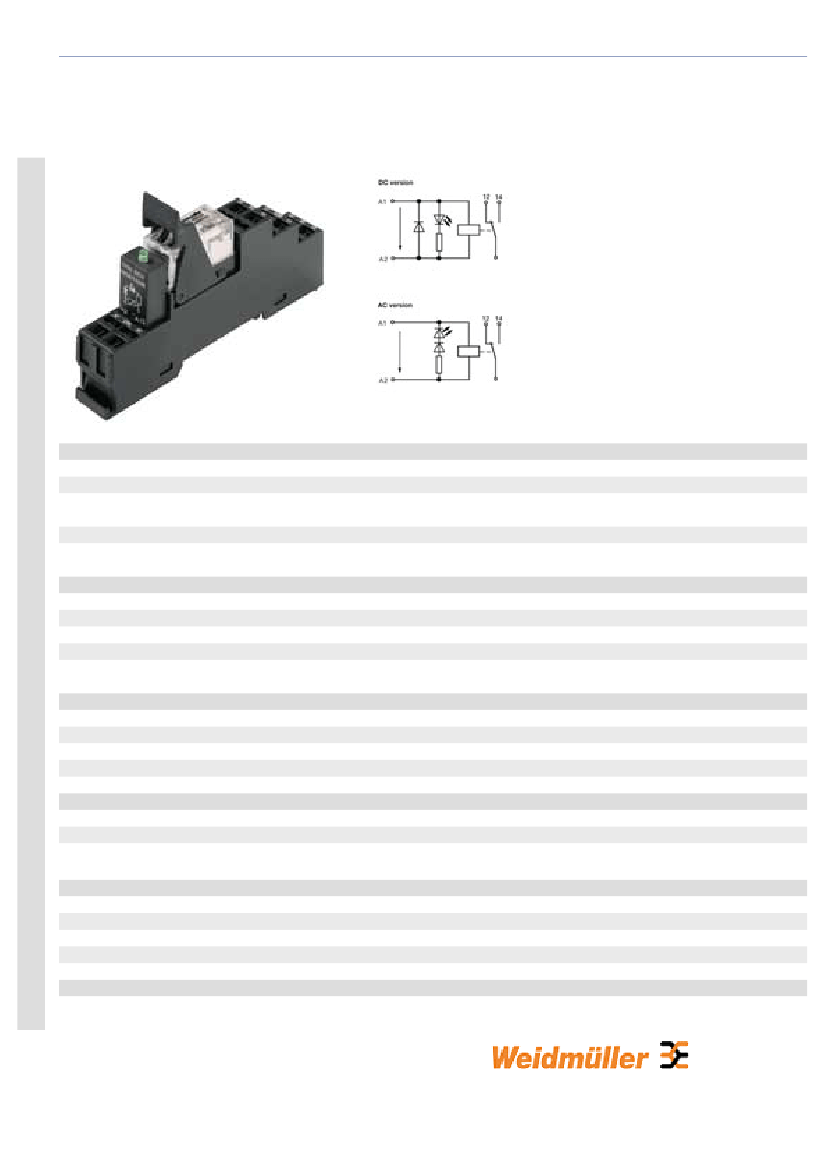

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Input

Rated control voltage

Pull-in (sparkover) / drop-out voltage AC coil

Rated current AC

Power rating

Status indicator

Output

Continuous current

Max. switching power

Max. switching voltage AC

Sparkover time / Drop-out time

Contact data

Number of contacts

Contact base material

Mechanical service life

Rated data

Connection system

DIN Rail compatibility

UL 94 flammability class

Ambient temperature (operational)

8798660000

RCLKITZ 230VAC 1CO LED

Relays, 1 CO contact, 230 V AC , 16 A, Tension

clamp connection

4032248494286

10 pc(s).

230 V AC

172.5 V / 34.5 V

3.2 mA

0.75 VA

Green LED = DC coil; red LED = AC coil

16 A

4000 VA

250 V

7 ms / 3 ms

AgNi 90/10

10*10 switching cycles

Tension clamp connection

TS 35

V-0

-40 °C...+70 °C

Insulation coordination (EN 50 178)

Clearance and creepage distances for control side 10 mm

- load side

-1-
