SENSITRON
SEMICONDUCTOR
TECHNICAL DATA, PROVISIONAL DATA ONLY
DATA SHEET 4208, REV. A
SHD619112
SHD619112P
HERMETIC SILICON CARBIDE RECTIFIER
DESCRIPTION:
A 1200-VOLT, 20 AMP POWER SILICON CARBIDE RECTIFIER IN A CERAMIC
HERMETIC LCC-3P PACKAGE
FEATURES:
•
NO RECOVERY TIME OR REVERSE RECOVERY LOSSES
•
NO TEMPERATURE INFLUENCE ON SWITCHING BEHAVIOR
•
SCREENED VERSIONS ARE AVAILABLE
MAXIMUM RATINGS
RATING
PEAK INVERSE VOLTAGE
MAXIMUM DC OUTPUT CURRENT (With Cathode Maintained @ T
C
= 65
O
C, for
Dual Package)
MAXIMUM DC OUTPUT CURRENT (With Cathode Maintained @ T
C
= 65
O
C, for
Single Package)
MAXIMUM REPETITIVE FORWARD SURGE CURRENT PER LEG
O
(t = 8.3ms, Sine) per leg, T
C
= 25 C
MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT PER LEG
O
(t = 10μs, pulse) per leg, T
C
= 25 C
MAXIMUM POWER DISSIPATION, T
C
= 25
O
C
MAXIMUM THERMAL RESISTANCE, Junction to Case (PER DUAL PACKAGE)
MAXIMUM OPERATING and STORAGE TEMPERATURE RANGE*
ALL RATINGS ARE @ T
C
= 25
°C
UNLESS OTHERWISE SPECIFIED.
SYMBOL
PIV
I
O
I
O
I
FRM
I
FSM
MAX.
1200
20
UNITS
Volts
Amps
10
50
250
Amps
Amps
Amps
P
d
R
θ
JC
Top, Tstg
40
0.9
-55 to +200
W
°C/W
°C
*
Note: SiC semiconductors will handle at or above this operating and storage temperature. However, extended operational use of the
packaged device above 175C may reduce its future performance. All qualification testing and screening per MIL-PRF-19500 will only be
performed to 175C.
ELECTRICAL CHARACTERISTICS
CHARACTERISTIC
MAXIMUM FORWARD VOLTAGE DROP (I
f
= 10A PER LEG) V
f
T
J
= 25
°C
T
J
= 175
°C
MAXIMUM REVERSE CURRENT (1200V PIV PER LEG) I
r
JUNCTION CAPACITANCE (V
r
=400V) per leg
TOTAL CAPACITIVE CHARGE (V
R
=1200V I
F
=10A di/dt=500A/μs T
J
=25°C) Q
C
per leg
T
J
= 25
°C
T
J
=175
°C
TYP
1.6
2.5
0.01
0.02
70
60
MAX.
1.8
3.0
0.20
1.00
UNITS
Volts
mA
PF
N/A
nC
•
221 WEST INDUSTRY COURT
•
DEER PARK, NY 11729-4681
•
PHONE (631) 586-7600
•
FAX (631) 242-9798
•
•
World Wide Web - http://www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
SHD619112
SHD619112P
SENSITRON
TECHNICAL DATA, PROVISONAL DATA ONLY
DATA SHEET 4208, REV. A

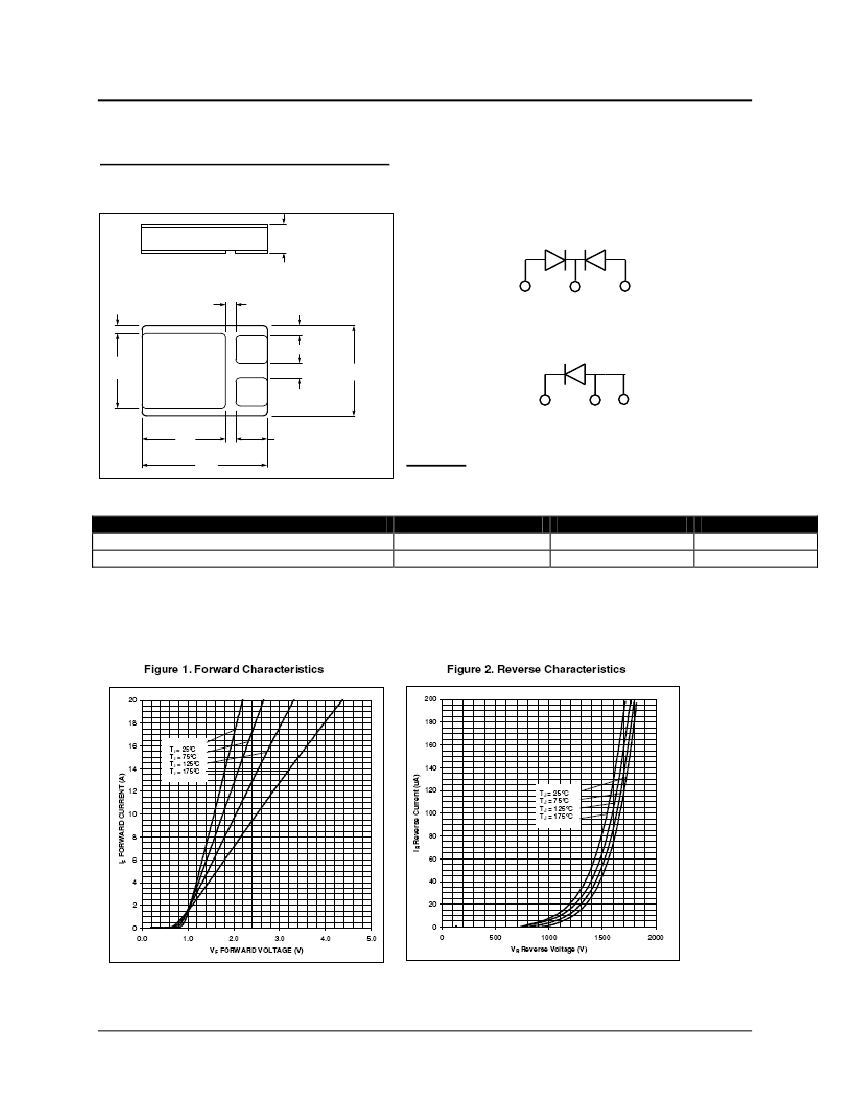

MECHANICAL DIMENSIONS: In Inches / mM
Common Cathode
.145
(3.68)
2
.037
(.94)
.030 (.76) Min.
.050 (1.27)
1
3
Single
2
.375
(9.53)
1
3
.140 (3.56)Typ.
.035 (.89) Min. .450 (11.43)
1
.415
(10.54)
.625
(15.88)
.157 (3.99)
2
3
LCC-3P
PINOUT TABLE
DEVICE TYPE
SINGLE RECTIFIER
DUAL RECTIFIER, COMMON CATHODE (P)
PIN 1
CATHODE
COMMON CATHODE
PIN 2
ANODE
ANODE 1
PIN 3
ANODE
ANODE 2
Application Note: Customers should be aware that at the current stage of technical development of SiC, the reverse avalanche
capabilities of the device are limited.
Customer designs will need to accommodate these limitations and avoid exposure of the device to this and other potentially
damaging conditions in their applications.
•
