Part Number

Search

822032-3

Description
SIMM/DIMM SOCKET,68 CONTACTS,1
CategoryThe connector    The connector
File Size92KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

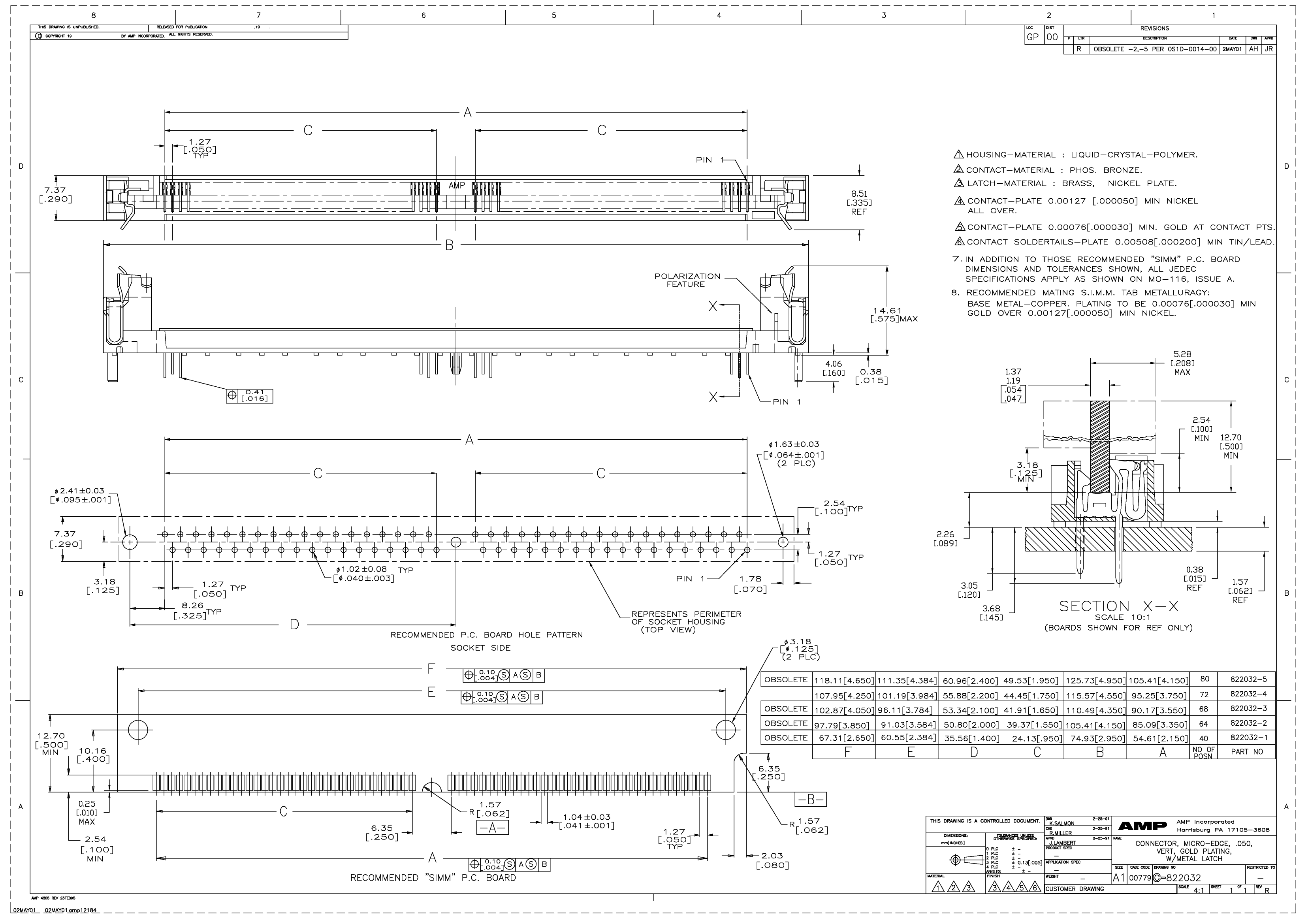

822032-3 Overview

SIMM/DIMM SOCKET,68 CONTACTS,1

822032-3 Parametric

Parameter NameAttribute value
Objectid302499484
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
Other featuresWITH CENTER POST
Board mount optionsPOLARIZATION POST
body width0.29 inch
subject depth0.5 inch
body length4.34 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact materialPHOSPHOR BRONZE
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage1500VAC V
Durability25 Cycles
maximum insertion forceLIF N
Insulation resistance10000000000 Ω
insulator materialLIQUID CRYSTAL POLYMER
Plug contact pitch0.05 inch
Installation option 1LATCH
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternSTAGGERED
PCB contact row spacing0.1 mm
Plating thickness30u inch
polarization keyCENTER
Rated current (signal)1 A
GuidelineUL, CSA
Terminal length0.12 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts68

822032-3 Related Products

822032-3 822032-1 822032-2
Description SIMM/DIMM SOCKET,68 CONTACTS,1 40 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, SOCKET SIMM/DIMM SOCKET,64 CONTACTS,1
Objectid 302499484 1482882843 302499483
Reach Compliance Code unknown unknown unknown
Other features WITH CENTER POST POLARIZED, STAGGERED CONFIGURATION WITH CENTER POST
Body/casing type RECEPTACLE SOCKET RECEPTACLE
Connector type CARD EDGE CONNECTOR CARD EDGE CONNECTOR CARD EDGE CONNECTOR
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of rows loaded 1 1 1
Terminal pitch 2.54 mm 1.27 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 68 40 64
ECCN code EAR99 - EAR99
Board mount options POLARIZATION POST - POLARIZATION POST
body width 0.29 inch - 0.29 inch
subject depth 0.5 inch - 0.5 inch
body length 4.34 inch - 4.14 inch
Contact to complete cooperation AU - AU
Contact completed and terminated GOLD - GOLD
Contact material PHOSPHOR BRONZE - PHOSPHOR BRONZE
Contact resistance 30 mΩ - 30 mΩ
Contact style BELLOWED TYPE - BELLOWED TYPE
Dielectric withstand voltage 1500VAC V - 1500VAC V
Durability 25 Cycles - 25 Cycles
maximum insertion force LIF N - LIF N
Insulation resistance 10000000000 Ω - 10000000000 Ω
insulator material LIQUID CRYSTAL POLYMER - LIQUID CRYSTAL POLYMER
Plug contact pitch 0.05 inch - 0.05 inch
Installation option 1 LATCH - LATCH
Installation option 2 LOCKING - LOCKING
Number of connectors ONE - ONE
PCB row number 2 - 2
Maximum operating temperature 105 °C - 105 °C
Minimum operating temperature -40 °C - -40 °C
PCB contact pattern STAGGERED - STAGGERED
PCB contact row spacing 0.1 mm - 0.1 mm
Plating thickness 30u inch - 30u inch
polarization key CENTER - CENTER
Rated current (signal) 1 A - 1 A
Guideline UL, CSA - UL, CSA
Terminal length 0.12 inch - 0.12 inch
Mixed contacts - NO NO
