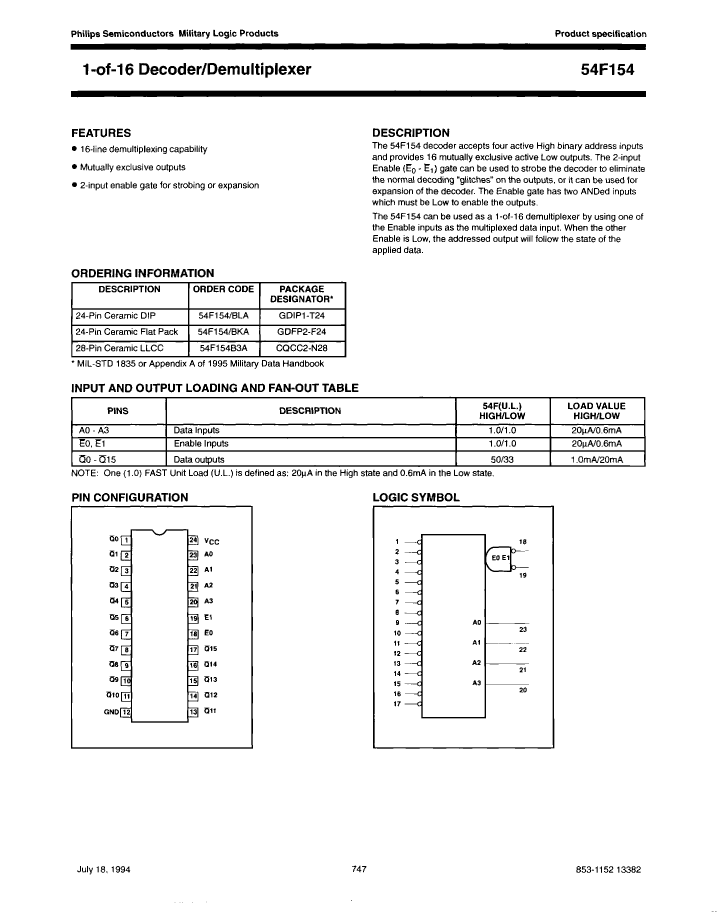

IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CQCC28, Decoder/Driver

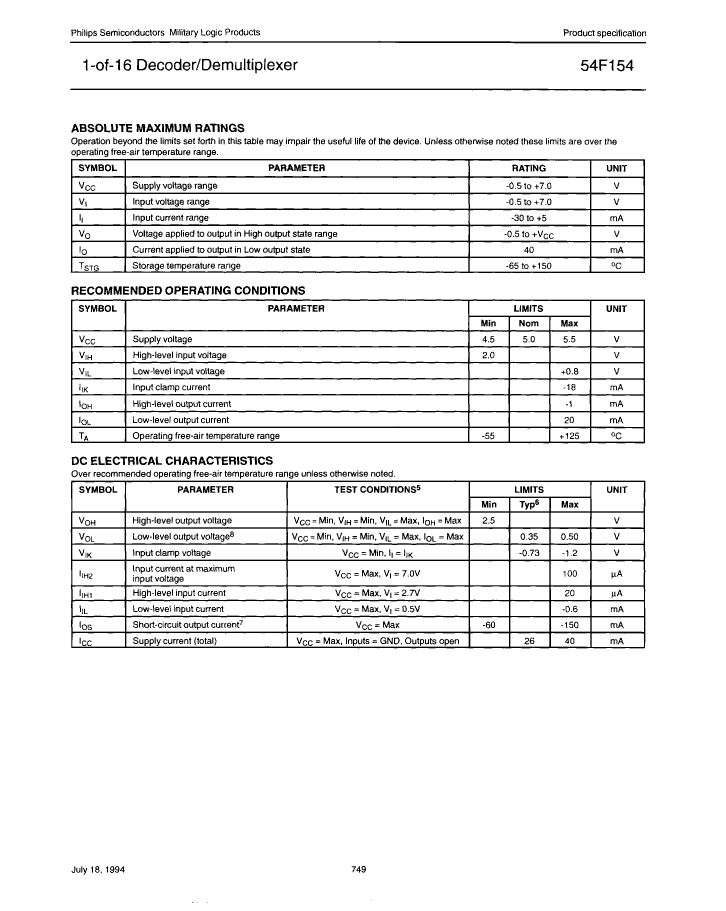

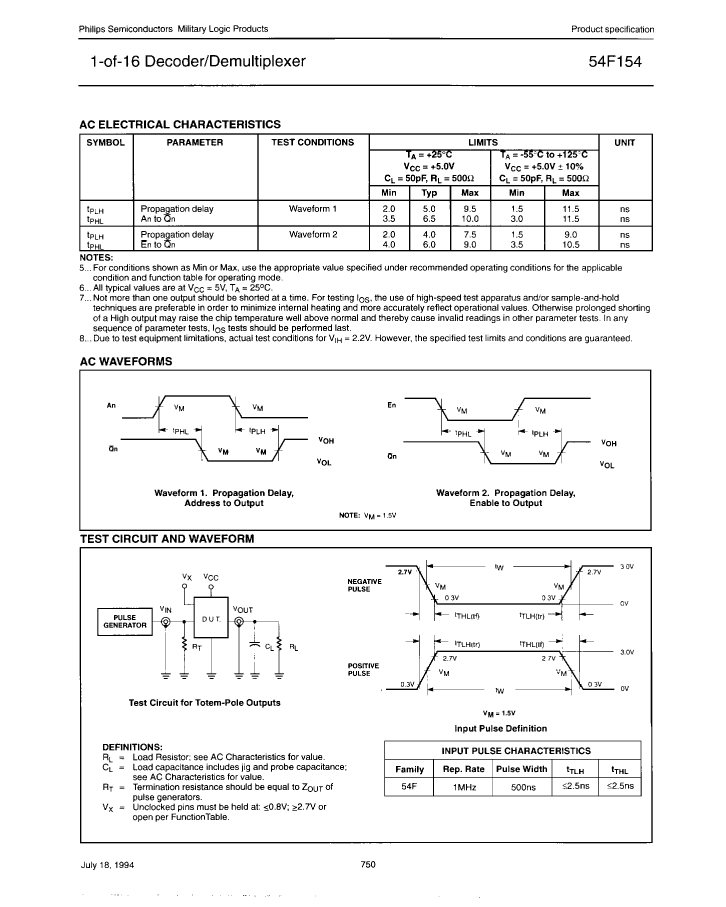

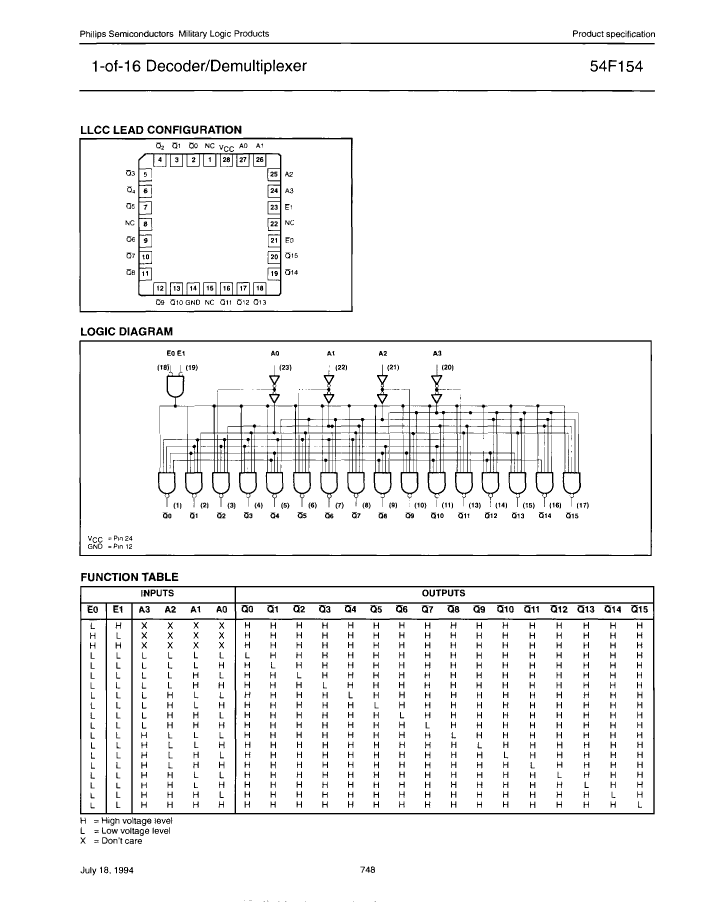

| Parameter Name | Attribute value |
| package instruction | QCCN, |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| series | F/FAST |
| JESD-30 code | S-CQCC-N28 |
| Load capacitance (CL) | 50 pF |
| Number of functions | 1 |
| Number of terminals | 28 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | INVERTED |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Maximum supply current (ICC) | 40 mA |
| propagation delay (tpd) | 11.5 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal location | QUAD |
| Base Number Matches | 1 |
| 54F154/B3A | 54F154/BLA | 54F154/BKA | N54F154/B3A | N54F154/BKA | |
|---|---|---|---|---|---|
| Description | IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CQCC28, Decoder/Driver | IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP24, Decoder/Driver | IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP24, Decoder/Driver | IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CQCC28, CERAMIC, LLCC-28, Decoder/Driver | IC F/FAST SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP24, CERAMIC, DFP-24, Decoder/Driver |
| package instruction | QCCN, | DIP, | DFP, | QCCN, | DFP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | S-CQCC-N28 | R-GDIP-T24 | R-CDFP-F24 | S-CQCC-N28 | R-CDFP-F24 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 28 | 24 | 24 | 28 | 24 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | INVERTED | INVERTED | INVERTED | INVERTED | INVERTED |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN | DIP | DFP | QCCN | DFP |
| Package shape | SQUARE | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | CHIP CARRIER | IN-LINE | FLATPACK | CHIP CARRIER | FLATPACK |
| Maximum supply current (ICC) | 40 mA | 40 mA | 40 mA | 40 mA | 40 mA |
| propagation delay (tpd) | 11.5 ns | 11.5 ns | 11.5 ns | 11.5 ns | 11.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | YES | YES |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | THROUGH-HOLE | FLAT | NO LEAD | FLAT |
| Terminal location | QUAD | DUAL | DUAL | QUAD | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
