3078-842-02

Description
Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle
CategoryThe connector    The connector
File Size78KB,1 Pages
ManufacturerSingatron Enterprises Co
Download Datasheet Parametric View All

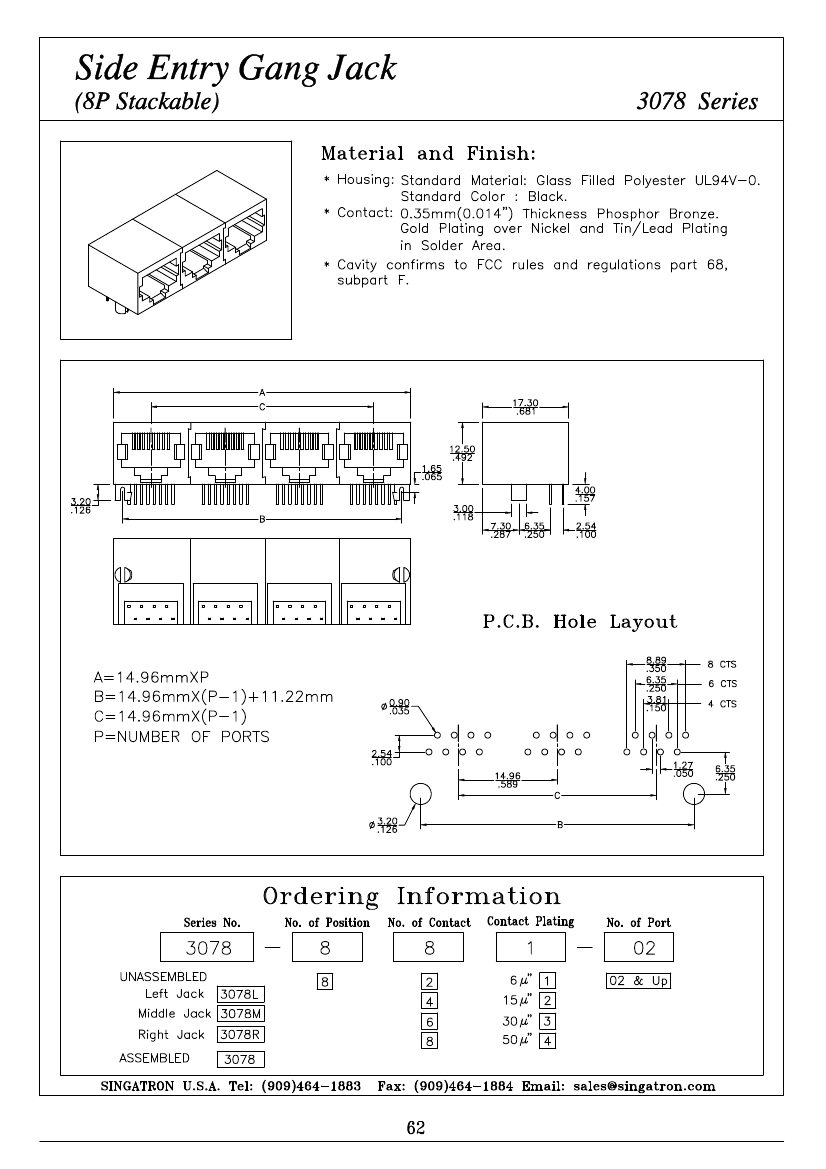

3078-842-02 Overview

Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle

3078-842-02 Parametric

Parameter NameAttribute value
MakerSingatron Enterprises Co
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsSPLIT BOARD LOCK
body width0.492 inch
subject depth0.681 inch
body length1.178 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
Contact styleTELCOM, MODULAR
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports2
PCB contact patternSTAGGERED
Plating thickness15u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.157 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts16
Base Number Matches1
