0326.500MXCCP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 0326.500MXCCP

0326.500MXCCP: DescriptionElectric Fuse, Time Lag Blow, 0.5A, 3AB,; CategoryCircuit protection Circuit protection; File Size110KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

0326.500MXCCP Overview

Electric Fuse, Time Lag Blow, 0.5A, 3AB,

0326.500MXCCP Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
Fusing characteristics	TIME LAG
body height	31.75 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	3AB
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	6.35mm x 31.75mm
Pre-discharge rating	2.5 A2/s
Rated current	0.5 A
Rated voltage	250 V
Guideline	CE, CSA, UL
Terminal shape	END CAP
Disconnect time or delay	14400 s
Base Number Matches	1

Preview

Download Datasheet

View All

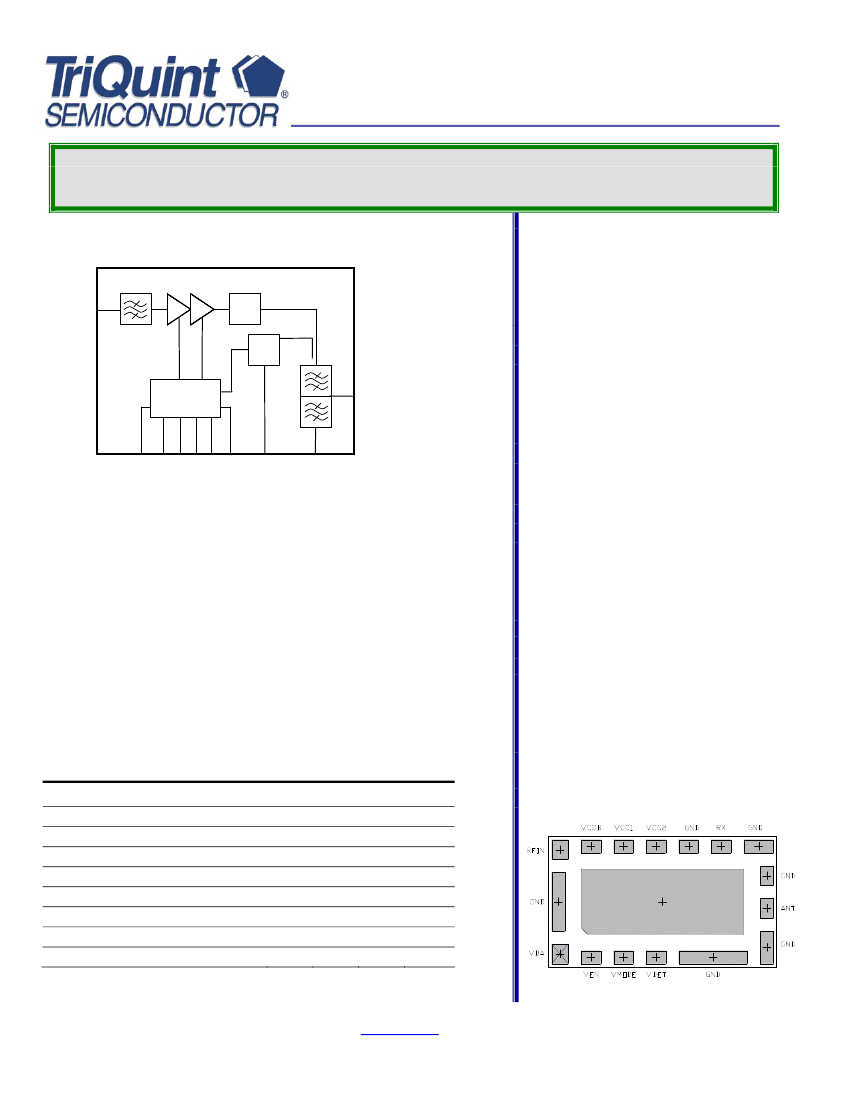

TQM616035

Advance Data Sheet

WCDMA / HSUPA Band V&VI Power-PAD™-Module

Functional Block Diagram

Features

•

RFIN

Match

Power

Detector

•

Bias Control

ANT

VMODE

VBA

VCCBIAS

VCC1

VCC2

Product Description

The PowerPAD™ is an integrated 3V Linear Power Amplifier, Duplexer and Transmit

Filter Module including a highly accurate Output Power Detector designed for mobile

UMTS handset applications, supporting HSUPA operation with transmission data-rates

up to 10Mb/s.

It features 2 output power modes, additional continuous bias in low power mode, low off

and standby currents, and a separate pin for module enable. RF input and output

matching is included within the module; therefore, minimal external circuitry is required.

The PowerPAD™ gives excellent RF performance with low current consumption

resulting in longer talk times in portable applications. The tiny 7x4x1.1 mm³ surface

mount package is ideal for new generation slim, small and light phones.

RXOUT

•

Handset PowerPAD™ (PA-Duplexer)

Module for UMTS Bands V&VI (Cellular

band)

Specified for HSDPA Modulation

(HSUPA capable)

Integrates Power Amplifier, Highly

Accurate Output Power Detector,

Transmit Filter and Duplexer

No Regulated Voltage Required

Separate ‘Module Enable’ Pin

All RF Ports Matched to 50

Low Current Consumption:

– 2 Power Modes

– Continuous Bias in Low Power Mode

– Extremely Low Idle Current

(15mA typ.) in Low Power Mode

Compatible for Low Collector Voltage

Operation with DC-DC-Converters

VEN

VDET

Applications

•

3G UMTS Handsets and Data-Cards

Electrical Specifications

Parameter

Frequency

Linear P

OUT

(HSUPA) high power mode

Maximum current high power mode

Linear P

OUT

(HSUPA) low power mode

Idle current low power mode

ACPR (HSUPA) 5 MHz

ALPR (HSUPA) 10 MHz

Ant-to-RX Insertion Loss

Test Conditions: V

CC1

= V

CC2

= 3.4 V, T = 25°C

-45

-60

2.5

Package Style

Min

826.4

410

Typ

Max

846.6

Units

MHz

dBm

dBc

•

Compact 7 x 4 x 1.1 mm

16-Pin LGA

Package

For additional information and latest specifications, see our website:

www.triquint.com

Revision B, November 19, 2007

Advance Data Sheet: Subject to change without notice

Recommended Resources

Separate local compensation capacitor circuit

Separately Controlled High Return Coefficient DC Voltage Monitoring Circuit

Eliminate DC solenoid sparks

Generator that can produce both spike and sawtooth pulses

Touch switch circuit diagram

555 single-phase active electronic electricity meter circuit
