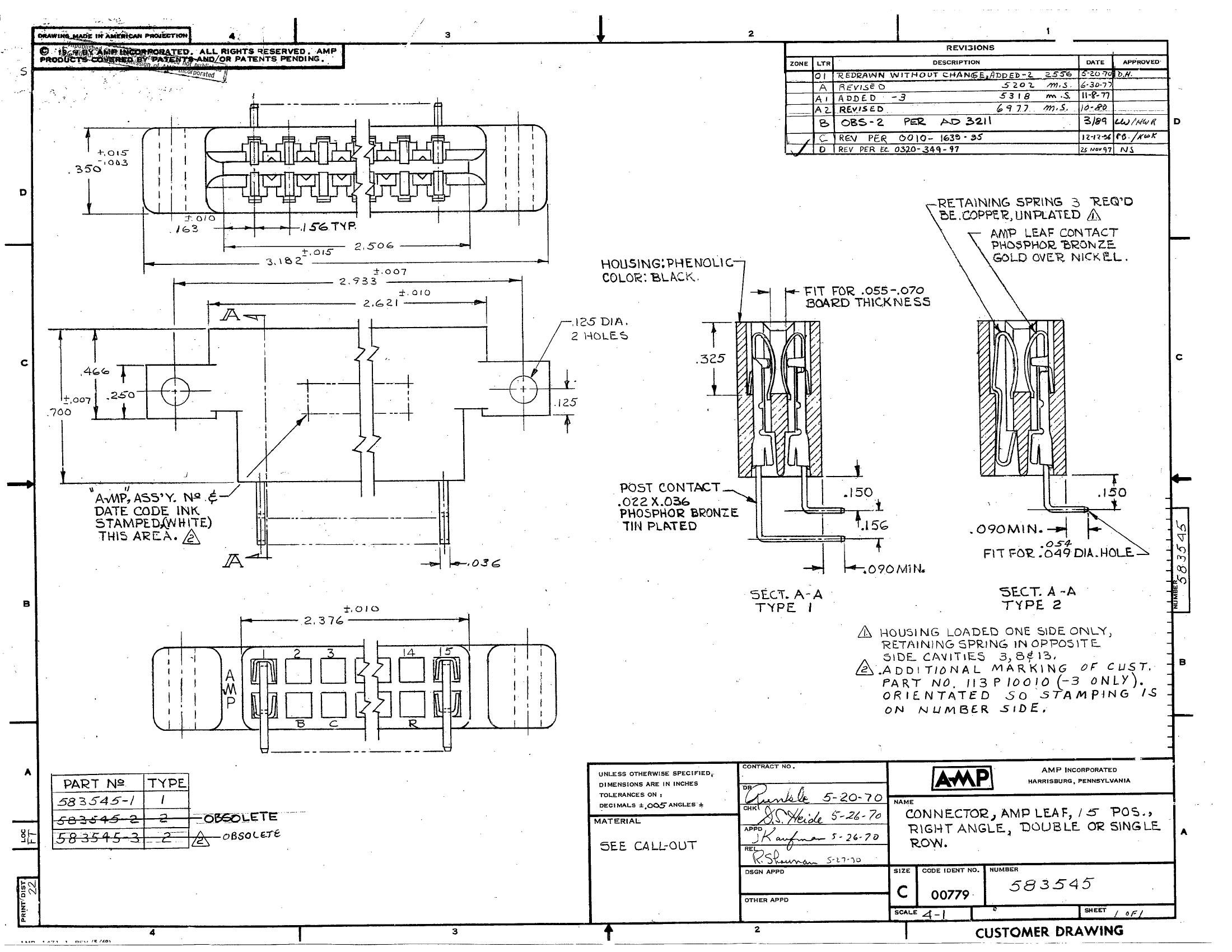

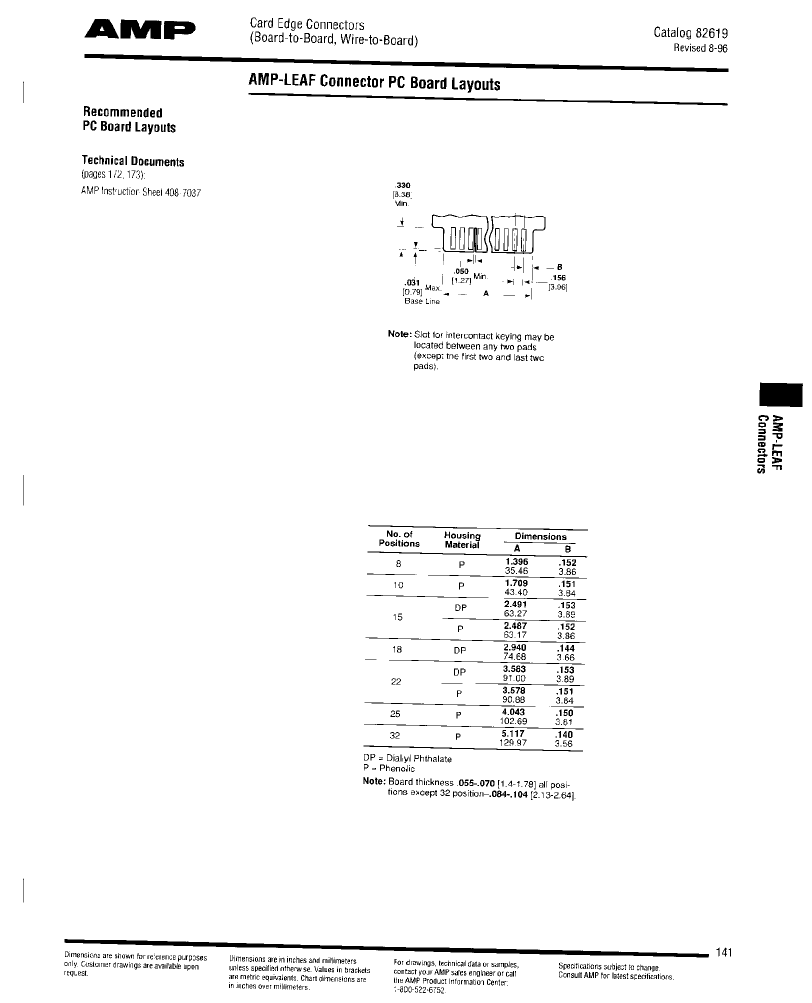

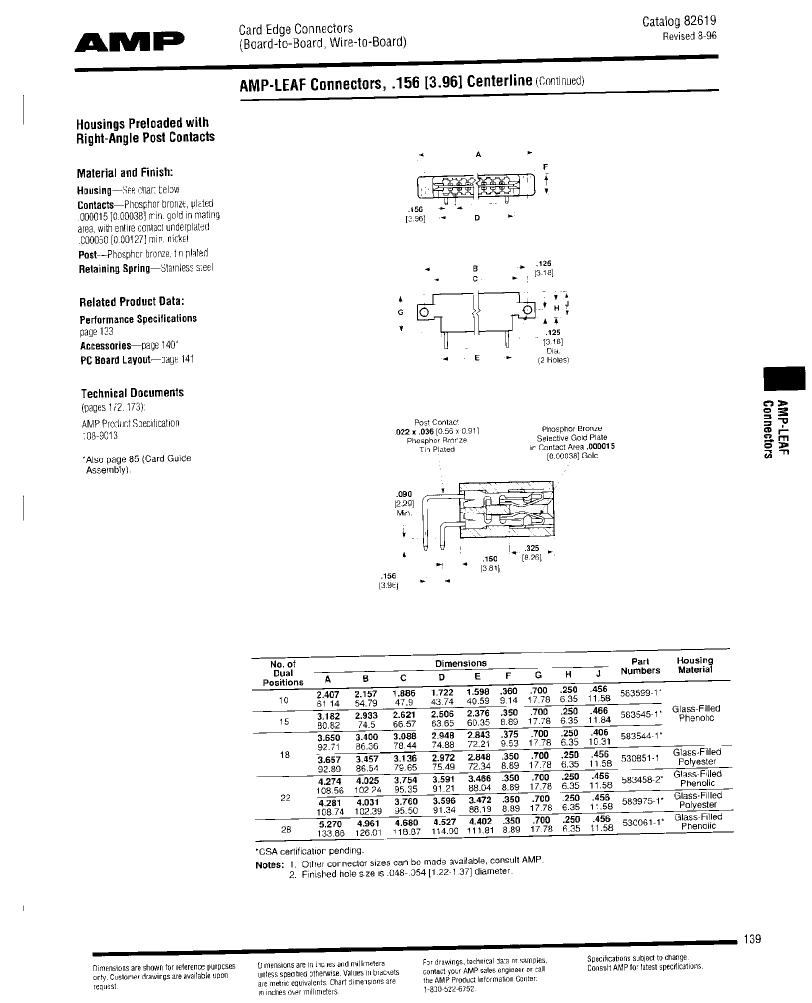

583545-3: DescriptionCONNECTOR, 15 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER; CategoryThe connector The connector; File Size172KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

583545-3 Overview

CONNECTOR, 15 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	583545
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

	583545-3	583545-2	530851-1
Description	CONNECTOR, 15 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER	CONNECTOR, 15 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER	EDGE CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,0.156 PITCH,PC TAIL TERMINAL
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknow
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	1	2
Terminal pitch	3.96 mm	3.96 mm	3.9624 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	18
Contact point gender	FEMALE	FEMALE	-
DIN compliance	NO	NO	-
Filter function	NO	NO	-
IEC compliance	NO	NO	-
MIL compliance	NO	NO	-
Manufacturer's serial number	583545	583545	-
Mixed contacts	NO	NO	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-
Base Number Matches	1	1	-
