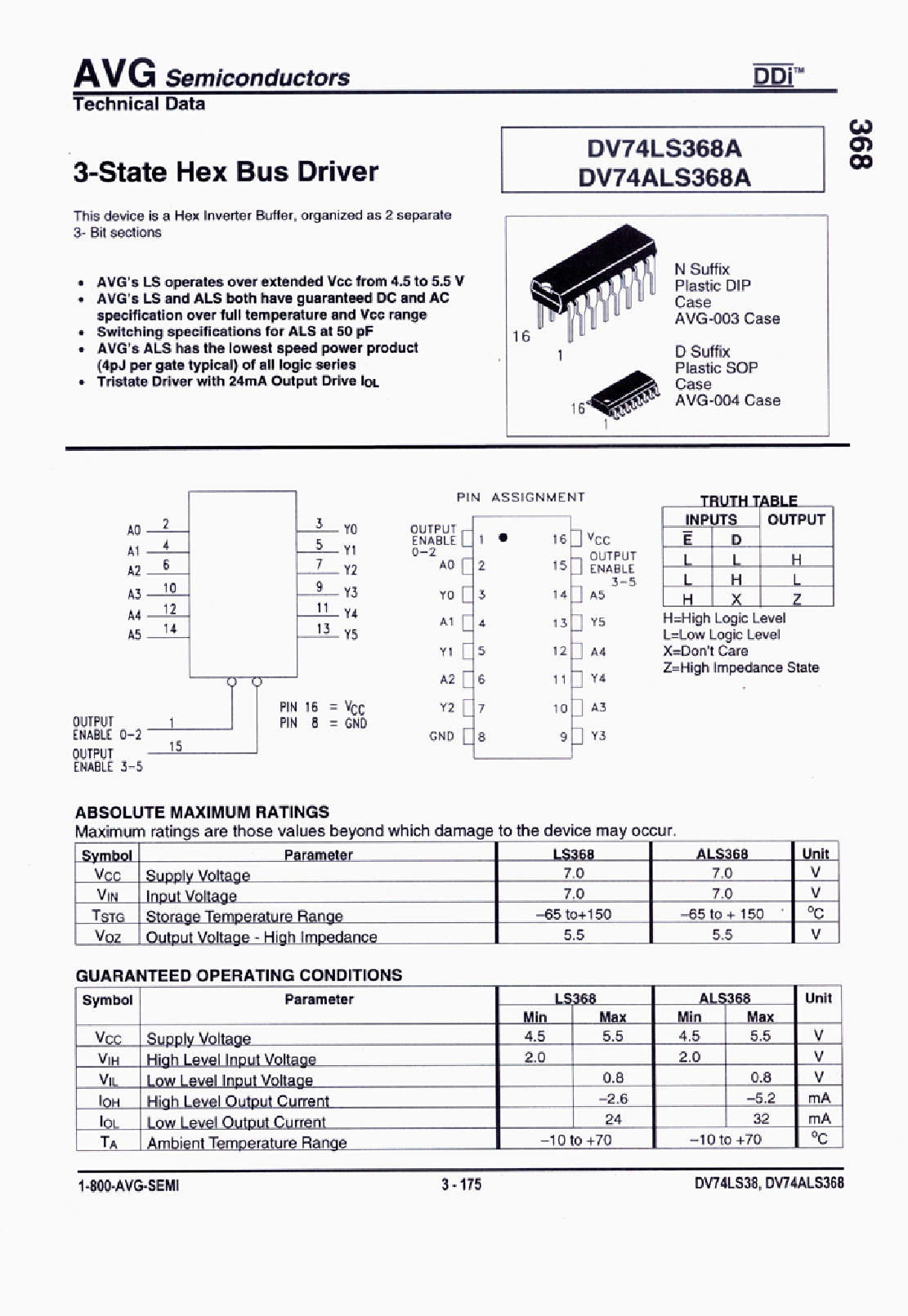

Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16

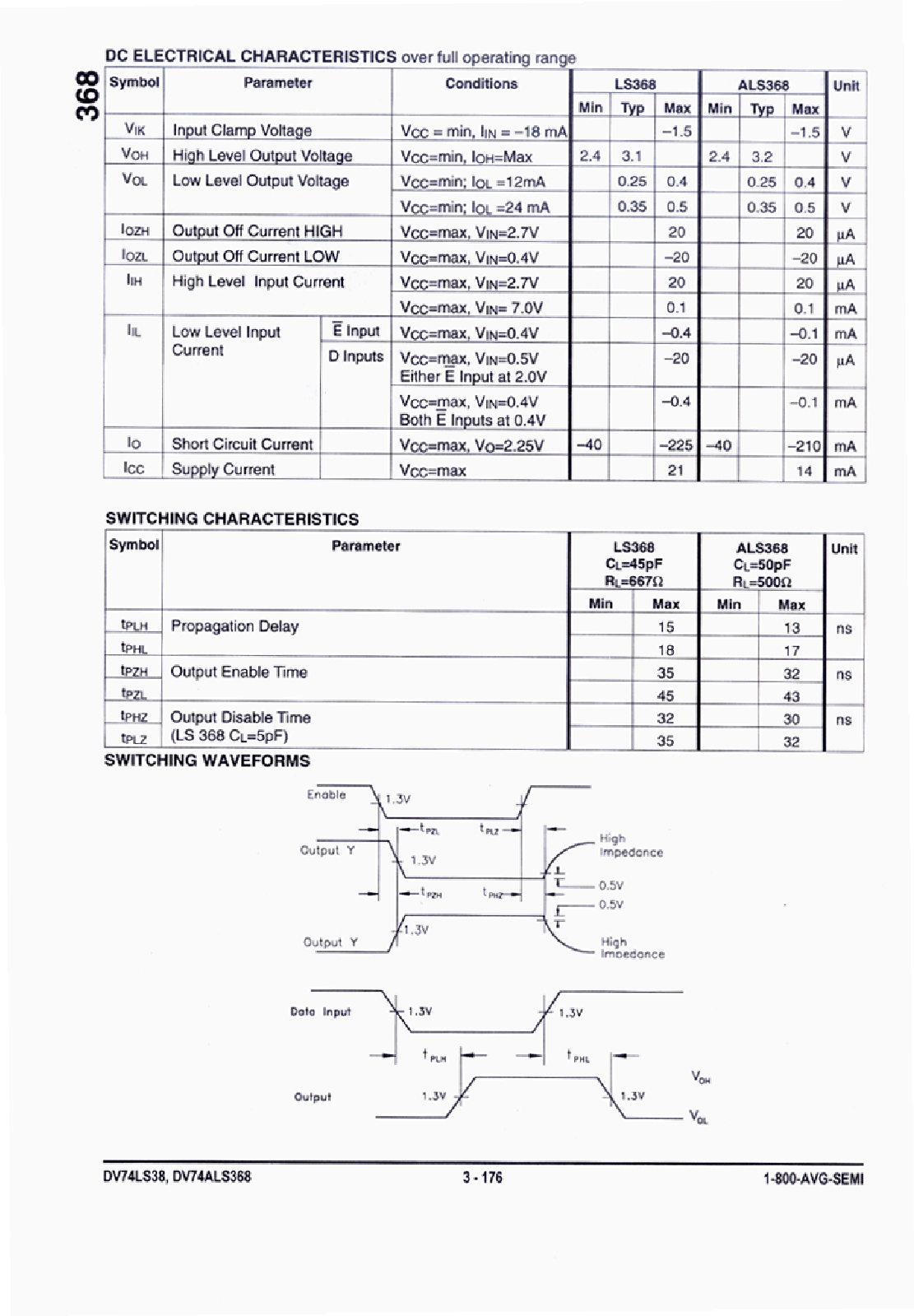

| Parameter Name | Attribute value |
| Maker | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Base Number Matches | 1 |
| DV74LS368AD | DV74ALS368AD | DV74ALS368AN | |
|---|---|---|---|
| Description | Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16 | Bus Driver, ALS Series, 1-Func, 6-Bit, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16 | Bus Driver, ALS Series, 1-Func, 6-Bit, Inverted Output, TTL, PDIP16, PLASTIC, DIP-16 |
| Maker | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | SOIC | SOIC | DIP |
| package instruction | SOP, | SOP, | DIP, |
| Contacts | 16 | 16 | 16 |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | - | ONE FUNCTION WITH TWO BITS | ONE FUNCTION WITH TWO BITS |
| series | - | ALS | ALS |
| JESD-30 code | - | R-PDSO-G16 | R-PDIP-T16 |
| length | - | 9.9 mm | 19.175 mm |
| Load capacitance (CL) | - | 50 pF | 50 pF |
| Logic integrated circuit type | - | BUS DRIVER | BUS DRIVER |
| Number of digits | - | 6 | 6 |
| Number of functions | - | 1 | 1 |
| Number of ports | - | 2 | 2 |
| Number of terminals | - | 16 | 16 |
| Maximum operating temperature | - | 70 °C | 70 °C |
| Minimum operating temperature | - | -10 °C | -10 °C |
| Output characteristics | - | 3-STATE | 3-STATE |
| Output polarity | - | INVERTED | INVERTED |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | - | SOP | DIP |
| Package shape | - | RECTANGULAR | RECTANGULAR |
| Package form | - | SMALL OUTLINE | IN-LINE |
| Maximum supply current (ICC) | - | 14 mA | 14 mA |
| propagation delay (tpd) | - | 17 ns | 17 ns |
| Certification status | - | Not Qualified | Not Qualified |
| Maximum seat height | - | 1.75 mm | 4.44 mm |
| Maximum supply voltage (Vsup) | - | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | - | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | - | 5 V | 5 V |
| surface mount | - | YES | NO |
| technology | - | TTL | TTL |
| Temperature level | - | COMMERCIAL | COMMERCIAL |
| Terminal form | - | GULL WING | THROUGH-HOLE |
| Terminal pitch | - | 1.27 mm | 2.54 mm |
| Terminal location | - | DUAL | DUAL |
| width | - | 3.9 mm | 7.62 mm |
