3004MAC-067: DescriptionRF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

3004MAC-067 Overview

RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3004MAC-067 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	SMA-M, I/P POWER-MAX(PEAK)=250W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

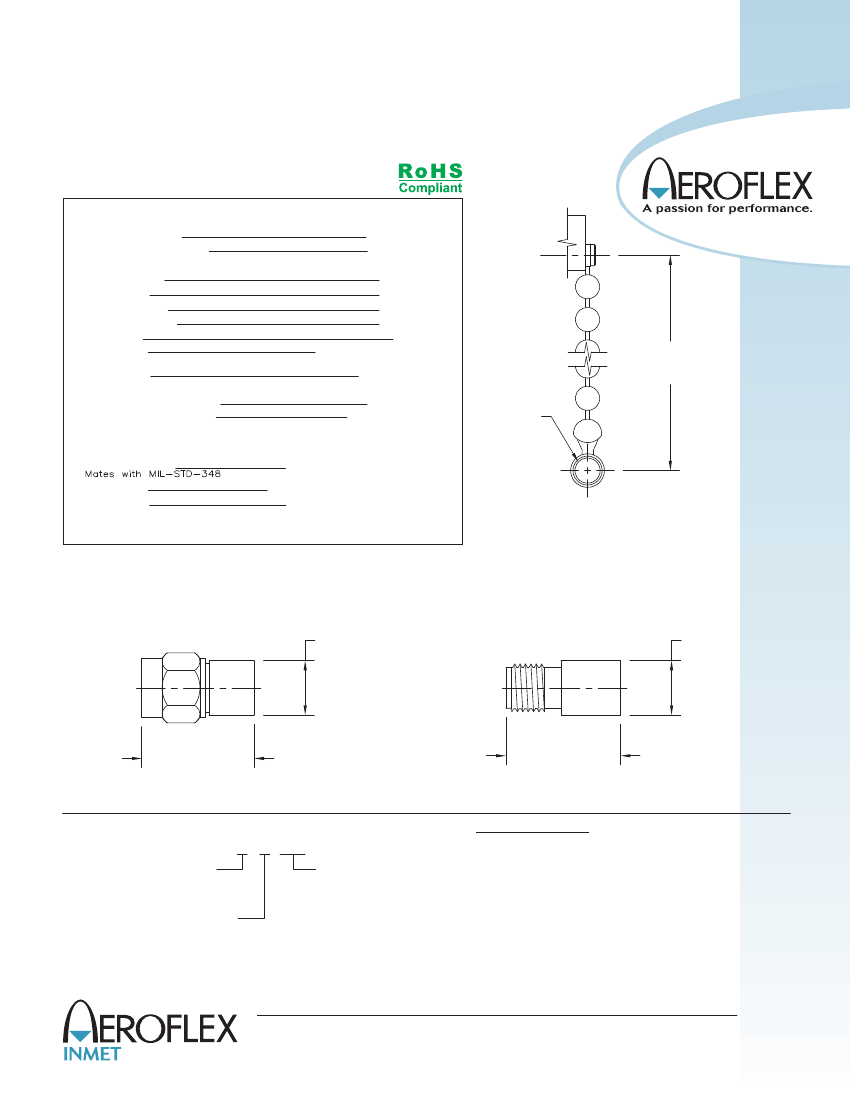

TERMINATIONS

SMA, up to 18 GHz, 2 Watts

SPECIFICATIONS:

Models: 3004MA, 3004FA, 3004MAC, 3004FAC

Electrical:

Frequency Range

Standard Freq. Values

VSWR

DC - 4 GHz

4 - 8 GHz

8 - 12.4 GHz

12.4 - 18 GHz

Impedance

Input Power

Peak Power

Temperature Coefficient

Operating Temp Range

DC - 18 GHz

6** & 18 GHz

1.15:1 Max.

1.20:1 Max.

1.25:1 Max.

1.30:1 Max.

50 Ohms

2 Watts Avg. @ +25°C

Derated Linearly to 1 Watt @ +125 C

250 Watts Max.

(5uSec Pulse, .05% Duty Cycle)

3.5 [89] Long

Bead Chain

Ø.13[3.3]

Thru

±250 ppm/°C

-65°C to +125°C

Mechanical:

SMA Connectors

Conductors

Bead Chain

Passivated Stainless Steel

Gold Plated Beryllium Copper

Passivated Stainless Steel

**For DC - 6 GHz Units add -067 to the Model Number

Model Number:

3004MA

SMA Male Connector

CHAIN DETAIL

Model Number:

3004FA

SMA Female Connector

Ø.28 [7.1]

.58 ±.05

[14.7 ±1.3]

.59 ±.05

[15.0 ±1.3]

HOW TO ORDER:

Model Number:

3004XAY-XXX

Connector Configuration

M = Male

F = Female

Style

= No Chain

C = Chain Included

Frequency Range

= DC - 18 GHz

067 = DC - 6 GHz

Ordering Examples:

Model Number:

3004MAC

DC - 18 GHz; SMA Male; Chain Included

Model Number:

3004FA-067

DC - 6 GHz; SMA Female; No Chain

Model Number:

3004MA

DC - 18 GHz; SMA Male: No Chain

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

specifications before purchasing and/or use.

3004A: REV -

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • sales@aeroflex-inmet.com
