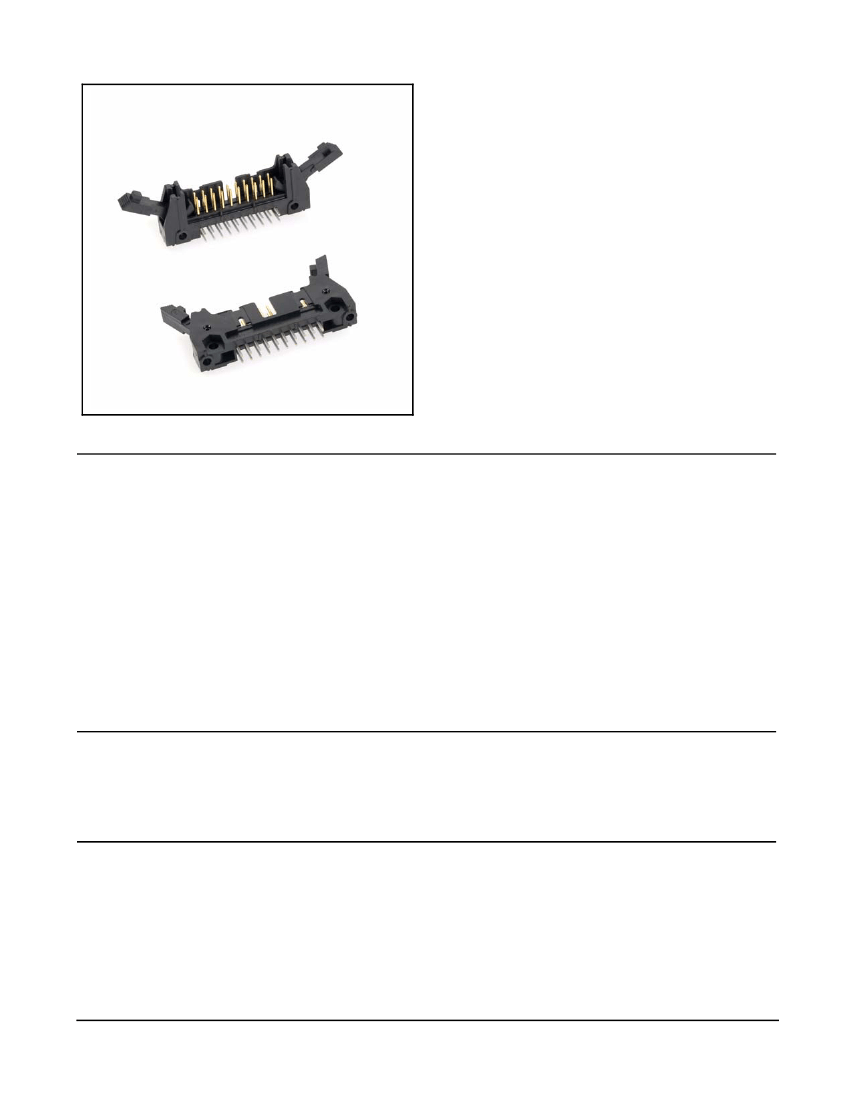

3M
™
Three-Wall Header
.100″
×
.100″ Latch/Ejector, Straight and Right Angle
3000 Series
• Military (with 3M's 3518 or N3518 polarizing key)
and center bump polarization
• Low profile
• Optional ejector latches
• Mounting holes for securing header to board
• Three wall shroud provides design flexibility
• Solder tail and wrap tail options
• Optional polarizing posts available
• Optional high temperature insulator suitable for "no
lead" soldering operations
• High temperature option is suitable for reflow
soldering using "paste in hole" techniques
• See Regulatory Information Appendix for chemical
compliance information
Date Modified: February 2, 2007
TS-0771-06
Sheet 1 of 5
Physical
Insulator
Material: Glass Filled Polyester (PBT)
Glass Filled Polyester (PCT) - High Temp Option
Flammability: UL 94V-0
Color: Gray (PBT), Beige (PCT), or Black (PCT)
Contact
Material: Copper Alloy
Plating
Underplating: 100
µ″
[ 2.54
µm
] Nickel - Overall
Wiping Area: 30
µ″
[ 0.76
µm
] Gold
Solder Tails: 200
µ″
[ 5.08
µm
] Tin Lead or Matte Tin (See Ordering Information)
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating:
1 A
Insulation Resistance:
>1
×
10
9
Ω
at 500 V
DC
Withstanding Voltage:
1000 V
RMS
at Sea Level
Environmental
-55°C to +105°C
Process Rating:
260°C (High Temp. PCT insulator) single pass (per J-STD-020C)
PBT gray insulator, maximum insulator temperature 191°C (solder
wave process only)
Moisture Sensitivity Level:
1 (per J-STD-020C) High Temp. (PCT) versions only
Temperature Rating:
UL File No.: E68080
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Three-Wall Header
-X0XX
Header without Latchs
.100″
×
.100″Latch/Ejector, Straight and Right Angle
-X2XX
Header with
Short Ejector/Latch
for 3M Sockets without
Strain Relief
.08
[2.0]
.08
[2.0]

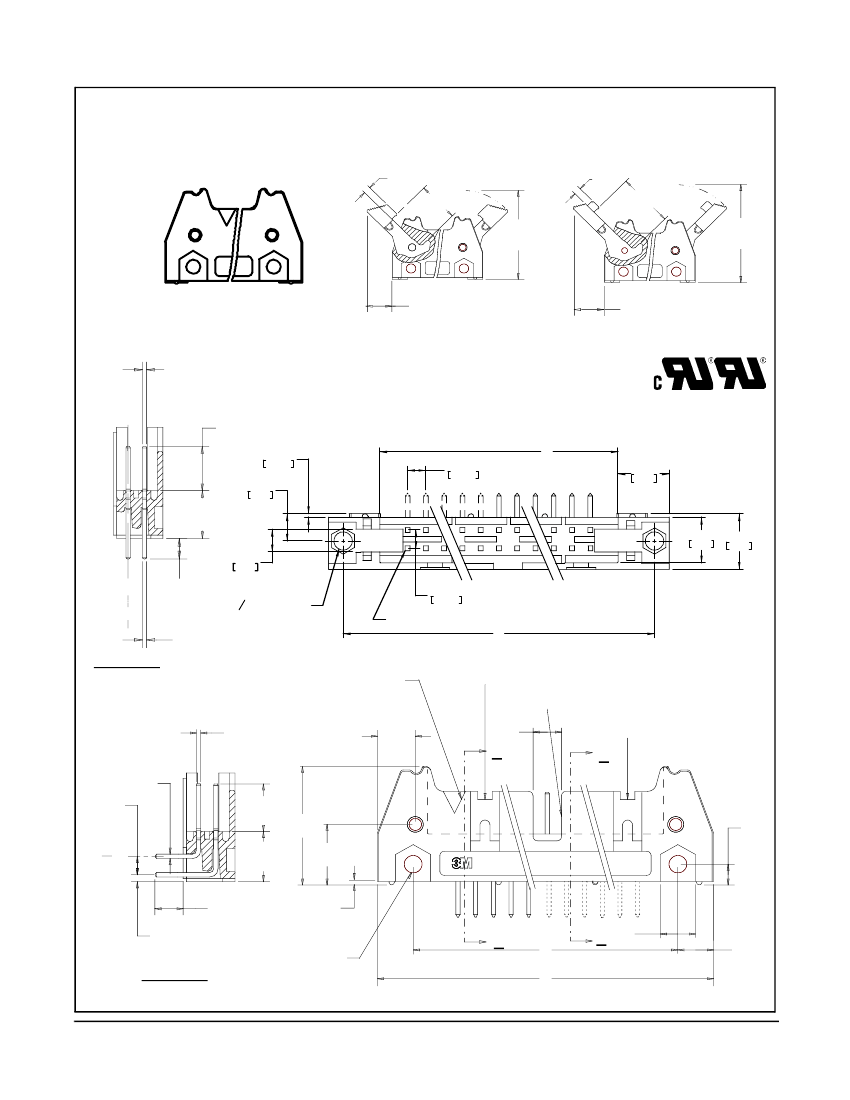

.424
±
.010
[ 10.77 ]
.97 Ref
[24.6]
.573
±
.010
[ 14.55 ]
3000 Series
-X3XX
Header with
Long Ejector/Latch
for 3M Sockets with
Strain Relief
1.07 Ref
[27.2]
.37 Ref
[9.4]
.46 Ref
[11.7]
.025
±
.002 Sq Typ
[ 0.64 ]
.24
[6.1]
.020
0.51
.15
3.8
D
.100
2.54
REF.
.28
7.1
.30
[7.6]
.25
6.4
.13
3.3
C
L
“Y”
F Typ
E
±
.010
.31
7.9
2X O .100 [2.54]
SEE NOTE #2
.100
2.54
POSITION #1
REF.
B
Notch A
(See Table 1 & Note1)
Notch B
(See Table 1)
.16
[4.1]
Notch C
(See Table 1 & Note 1)
Section A-A
(Straight)
Position 1
Orientation
Triangle
.025
±
.002 Sq
Typ
[ 0.64 ]
F Typ
.100 Ref
[2.54]
.24
[6.1]
.30
[7.6]
.21
[5.3]
A
B
.68
[17.3]
.35
[8.9]
.12
[3.0]
C
L “Y”
E
±
.010
.049
Ref
.020
[0.51]
A
2X Ø .100
[2.54]
(See Note 2)
C
A
B
.197
[5.00]
.20
[5.1]
TS-0771-06
Sheet 2 of 5
Section B-B
(Right Angle)
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Three-Wall Header
Table 1
Pin
Quantity
3M Part Number
A
B
.100″
×
.100″Latch/Ejector, Straight and Right Angle
Dimensions
C
D
Polarization
Notches Provided
3000 Series
10
14
16
20
26
34
40
50
60
64
3793
3314
3408
3428
3429
3431
3432
3433
3372
3764
1.26 [32.1]
1.46 [37.2]
1.56 [39.7]
1.76 [44.8]
2.06 [52.4]
2.46 [62.6]
2.76 [70.2]
3.26 [82.9]
3.76 [95.6]
3.96 [100.7]
1.105 [28.07]
1.305 [33.15]
1.405 [35.69]
1.605 [40.77]
1.905 [48.39]
2.305 [58.55]
2.605 [66.17]
3.105 [78.87]
3.605 [91.57]
3.805 [96.65]
.865 [21.97]
1.065 [27.05]
1.165 [29.59]
1.365 [34.67]
1.665 [42.29]
2.065 [52.45]
2.365 [60.07]
2.865 [72.77]
3.365 [85.47]
3.565 [90.55]
.71 [18.0]
.91 [23.1]
1.01 [25.6]
1.21 [30.7]
1.51 [38.3]
1.91 [48.5]
2.21 [56.1]
2.71 [68.8]
3.21 [81.5]
3.41 [86.6]
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
Table 2
3M Part
Number
Suffix
Contact Tail
Dimension E
Dimension F
Pin Cross Section
Diagonals
Corner Radii
Dimension G
-1XX2
-2XX2
-1X03
-2X03
Solder Tail for
.062 [1.57]
Thick PC Board
Solder Tail for
.094 [2.39] to
.125 [3.18]
Thick PC Board
.112
[2.84]
.155
[3.94]
0.0245
±
.0005
[0.622]
0.0245
±
.0005
[0.622]
0.028
±
.001
[0.71]
0.028
±
.001
[0.71]
0.0075 Ref
[0.191]
0.0075 Ref
[0.191]
ø
.035
±
.003
[0.89] (See Note 3)
ø
.035
±
.003
[0.89]
.300
[7.62]
Side to Side Stackability
or Ø.116
Ø.106
[2.69]
[2.95]
(See Note 2)
G Dim
“Y”
.41
[10.4]
Max to Edge of PCB
for Daisy Chain
Ø.106 or
Ø.116
[2.69]
[2.95]
(See Note 2)
G Dim
C
L
Position 1
.100
±
.003
[2.54]
.232
[5.89]
C
“Y”
C
L
.029
[0.74]
.060
[1.52]
Position 1
.100
±
.003
[2.54]
.352
[8.94]
B
.100
±
.003
[2.54]
.100
±
.003
[2.54]
Recommended Mounting Hole Pattern
(Right Angle)
Recommended Mounting Hole Pattern
(Straight)
[mm]
Tolerance Unless Noted
Notes:
1. Notches A & C will accomodate 3M Polarizing Keys (3M Part #3518 or N3518).
2. Accepts Rear and Front mounting hardware:
Rear Entry: #4-24 thread cutting screw, 3M Part #3341-5, .116 [2.95] dia mounting hole
Front Entry: (Prior to installation of latch on Straight Versions) #2-56 bolt and nut, 3M Part #3341-6,
.106 [2.69] dia mounting hole
3. The recommended PCB hole size for the kinked tail positions on the .112 solder tail connector is .035
±
.002.
Kink is located .05” below bottom surface of plastic. External radius of kink toward part centerline.
.0
Inch
±
.1
.00
.000
±
.01
±
.005
Inch
[ ] Dimensions for
Reference only
TS-0771-06
Sheet 3 of 5
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Three-Wall Header
Ordering Information
Blank = Std. Temp Gray (PBT) /(Blank or UB Pltg. Req'd.)
N = High Temp Beige (PCT) /(Blank or UB Pltg. Req'd.)
N = High Temp Black (PCT)/(RB Plating Req'd)
.100″
×
.100″Latch/Ejector, Straight and Right Angle
3000 Series
X3XXX-XXXX XX
3M Part Number
(See Table 1)
Latch/Ejector System
0 = No Latch/Ejector
2 = Short Roll PinLatch/Ejectors
3 = Long Roll Pin Latch/Ejectors
blank or UB = 30 µ" Gold with Sn/Pb Tails (App. E3 & C2 Apply)
RB = 30 µ" Gold with Matte Tin Tails (App. E1 & C1 Apply)
Shroud and Pin Configuration
1 = 3 Wall, Right Angle
Solder Tail
2 = 3 Wall, Straight Solder Tail
Tail
02 = Solder Tail for .062 [1.57] Thick Board
K2= Kinked Solder Tails for .062 [1.57] Thick Board
03 = Solder Tails for .094 to .125 [2.39 to 3.18] Thick Board
Part Customization
This spec sheet details our standard offering.
3M has several capabilities that can provide a part tailored to
your specific needs. Ask your 3M sales representative or
customer service for more details.
Use of snap-in style latch/ejectors in either short (N3XXX-
X5XX) or long (N3XXX-X6XX) styles, installed or shipped
separately (the -5 & -6 snap-in latches are dimensional and
functional equivalents to the -2 & -3 roll pin latches) which are
also available separately with roll pins included. Refer to
chart below.
Kinked Tail (K2 option) positions:
2500 & 3000 Series Shrouded Header
Total
Number of
Pins
10
14
16
20
24
If ordering snap-in or roll pin style latches separately, please use the below chart
Number of
Tails Kinked
4
4
4
4
4
4
4
4
4
4
4
4
4
Positions Kinked
3
3
3
3
3
3
5
7
7
7
7
11
11
4
4
4
4
4
4
6
8
8
8
8
12
12
7
11
13
17
21
23
25
27
27
33
43
49
53
8
12
14
18
22
24
26
28
28
34
44
50
54
26
30
Color
Gray
Beige
Black
Gray
Beige
Black
Standard Temperature (PBT)
High Temperature (PCT)
High Temperature (PCT)
High Temperature (PPA)
High Temperature (PPA)
High Temperature (PPA)
Short Latch
3505-2
N3505-2
N3505-2B
3505-30
N3505-30
N3505-30B
Long Latch
3505-3
N3505-3
N3505-3B
3505-31
N3505-31
N3505-31B
Latch Style
Roll Pin
Roll Pin
Roll Pin
Snap-In
Snap-In
Snap-In
34
36
40
50
60
64
• Selective pin removal (ATA or other compatibility)
• Wire wrap tail styles
Kinked Tail Detail:
Kink is located .05” below bottom surface of plastic.
External radius of kink toward part centerline.
TS-0771-06
Sheet 4 of 5
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Three-Wall Header
.100″
×
.100″Latch/Ejector, Straight and Right Angle
3000 Series
Polarizing Post
.321
[8.15]
3 2 0 1 -3
3 2 0 1 -4
PBT
LCP
G ra y
B la c k
.100 Dia
[2.54]
Note: Insert Post into one mounting hardware hole on
bottom of header. Set post to protrude .115″ [2.92].
Polarizing Keys
Dim A
N3518
3518
LCP
PBT
Blac k
Gray
.02
.02
Breakaway Tab
.34 Ref
[8.6]
A
.09
[2.3]
.15
[3.8]
Note: #2216 B/A Scotchweld can be used to adhere keys.
Mounting Hardware
3341-5
(Installed from bottom of board)
3341-6
(Must be inserted prior to latch on
vertical headers)
.31
[7.9]
.50
[12.7]
Panhead Thread Cutting Screw:
#4-24 X 5/16″
Type: USA Std BT, Federal BG
Hex Head Bolt, Nut and Washer
Bolt - #2-56 X 1/2″
3341-5 & 6
Material - Stainless Steel
TS-0771-06
Sheet 5 of 5
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
