DX10BM-100SE1: DescriptionD Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, M2.6x0.45, Receptacle; CategoryThe connector The connector; File Size296KB，4 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

DX10BM-100SE1 Overview

D Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, M2.6x0.45, Receptacle

DX10BM-100SE1 Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
body width	0.354 inch
subject depth	0.453 inch
body length	3.313 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	400VAC V
Insulation resistance	250000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DX10BM
Plug contact pitch	0.05 inch
Installation option 1	M2.6X0.45
Installation option 2	SCREWLOCKS
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.154 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	100
Base Number Matches	1

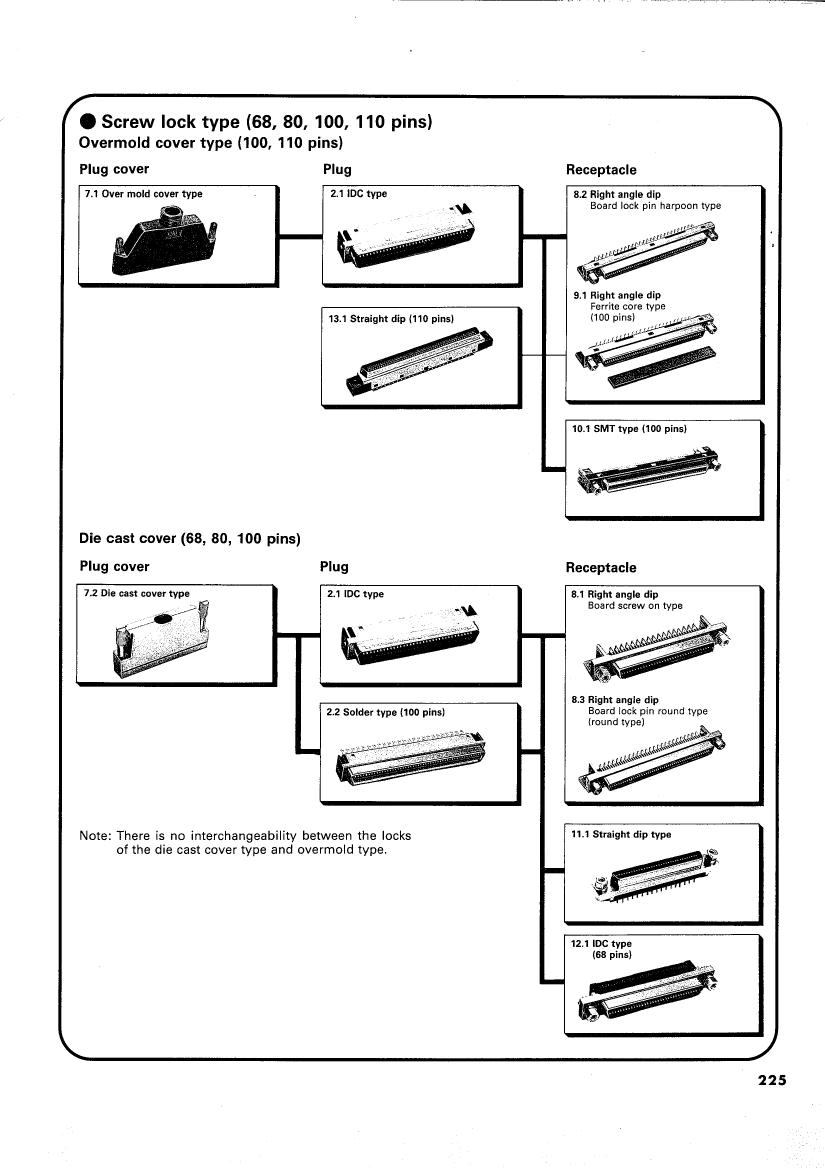

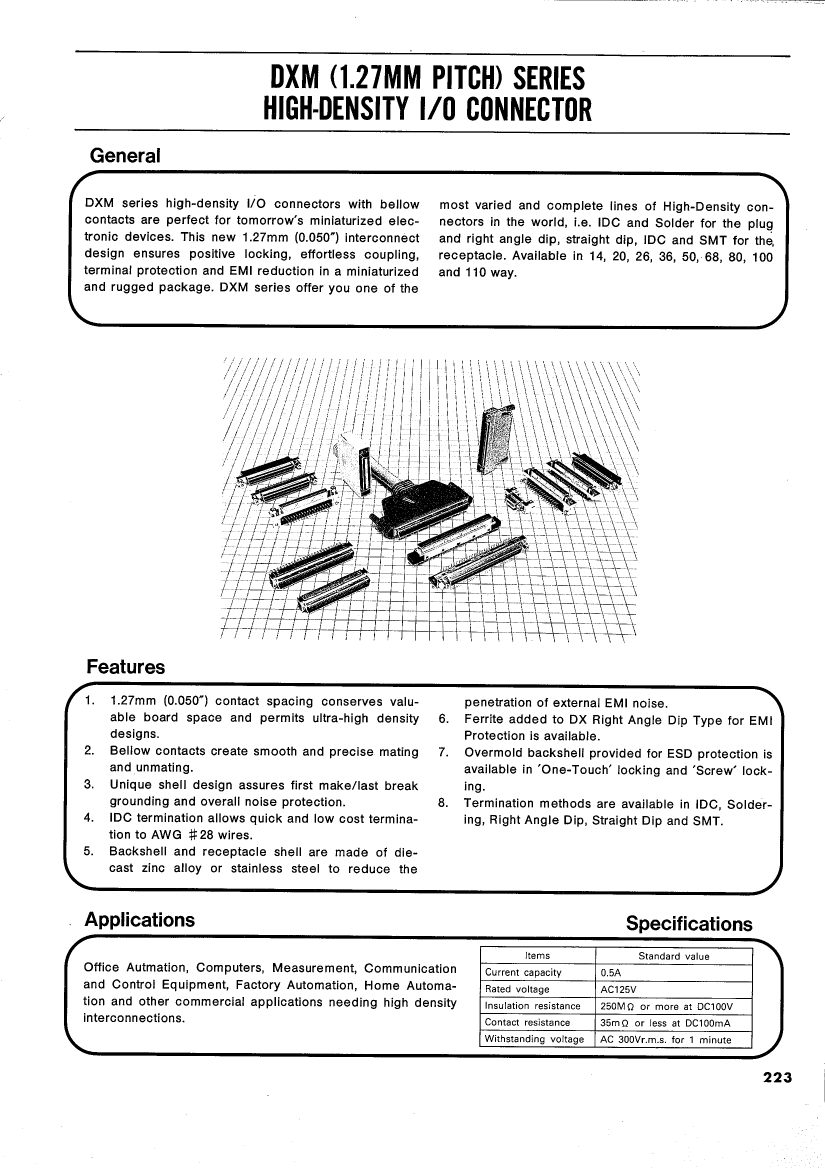

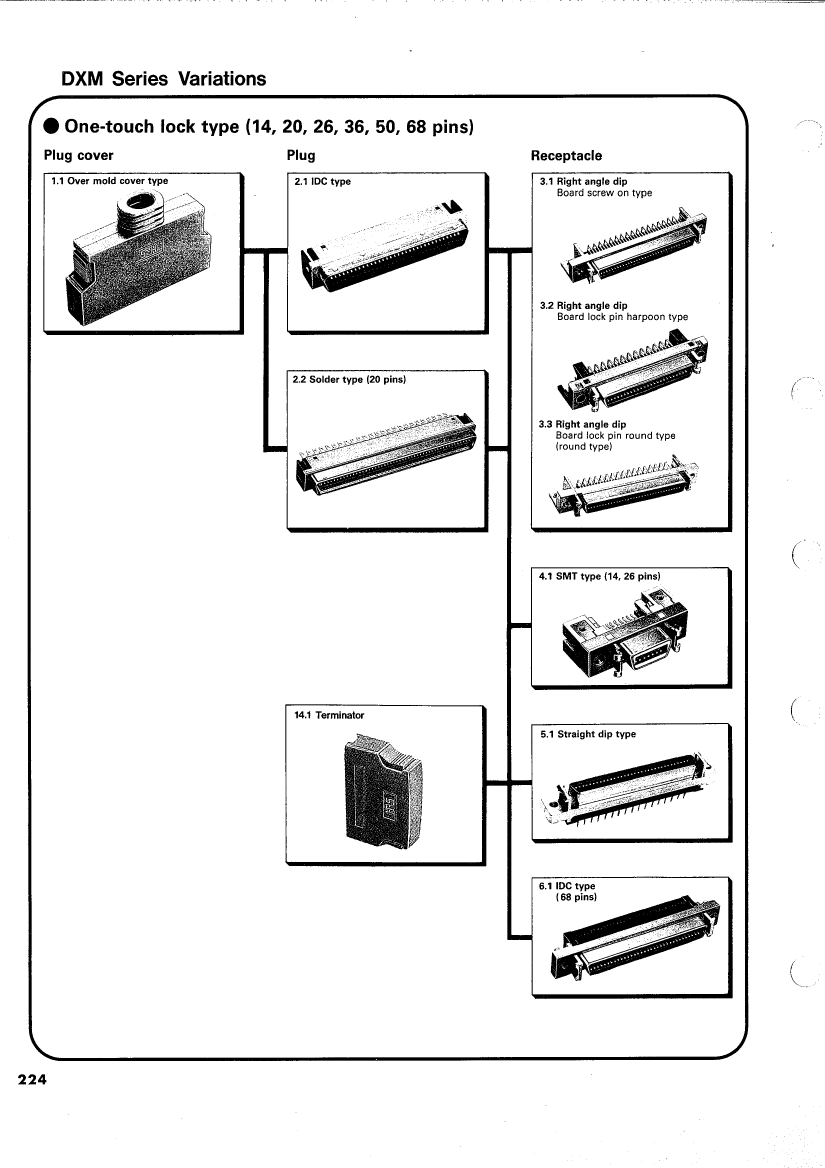

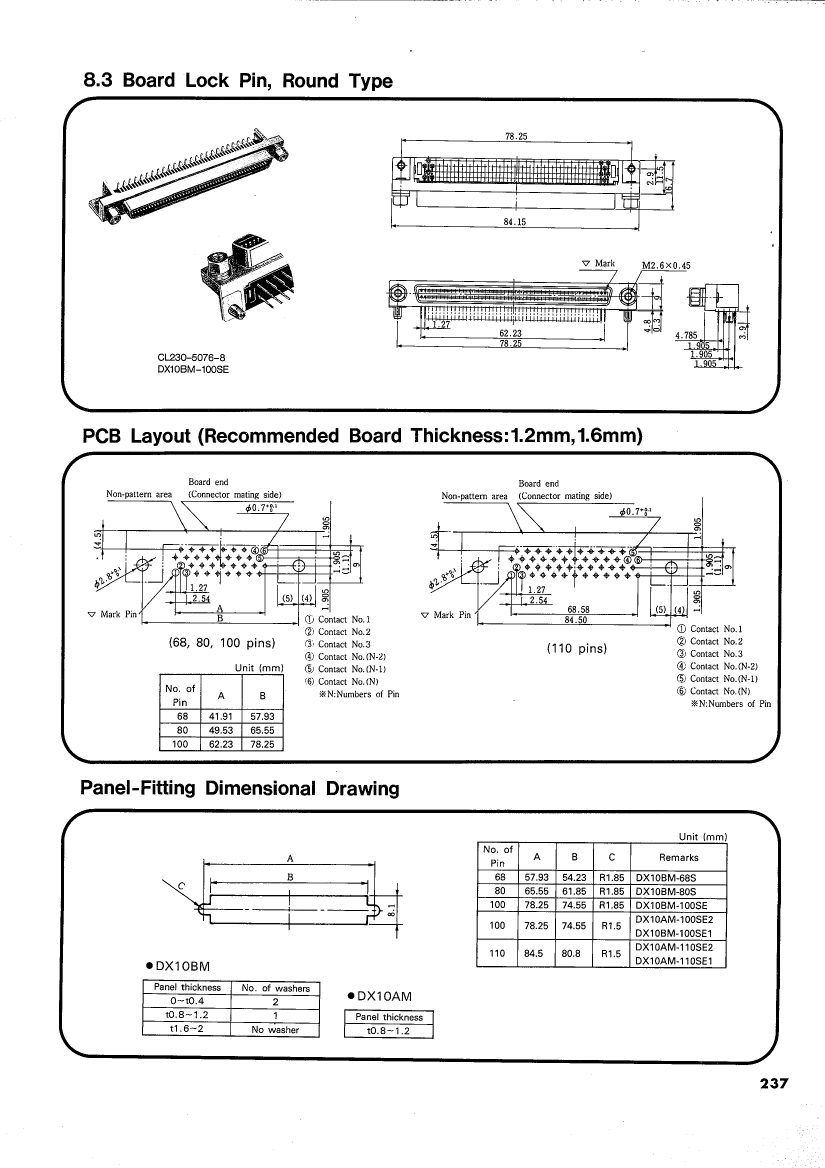

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
