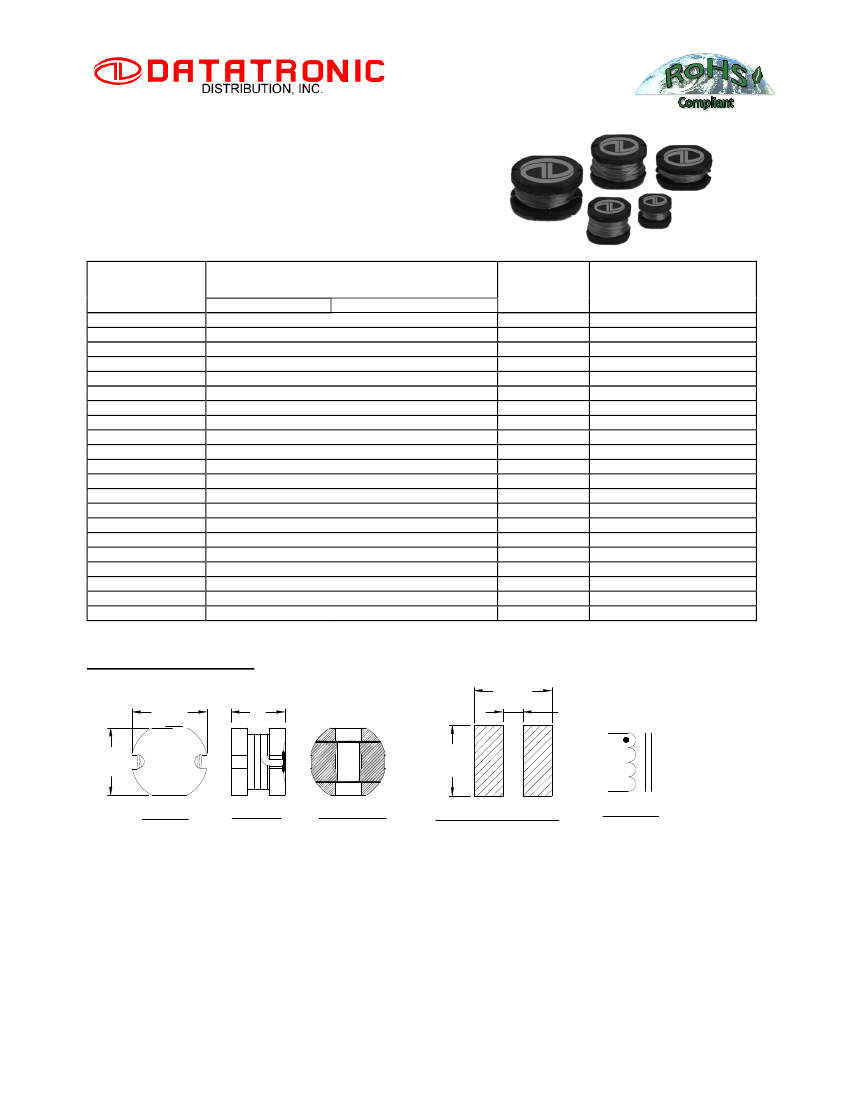

SMD INDUCTOR DR333 SERIES
Features
Low Profile Surface Mount Design
Inductance Range from 1.0µH to 68µH
Operating Temp. -20°C to +80°C
Tinned Leads with Leaded Solder is Available
(note 5)
ELECTRICAL SPECIFICATIONS AT 25ºC
PART No.
DR333-102
DR333-142
DR333-182
DR333-222
DR333-272
DR333-332
DR333-392
DR333-472
DR333-562
DR333-682
DR333-822
DR333-103
DR333-123
DR333-153
DR333-183
DR333-223
DR333-273
DR333-333
DR333-393
DR333-473
DR333-563
DR333-683
INDUCTANCE (H)
1.0
20%
1.4
20%
1.8
20%
2.2
20%
2.7
20%
3.3
20%
3.9
20%
4.7
20%
5.6
20%
6.8
20%
8.2
20%
10
20%
12
20%
15
20%
18
20%
22
20%
27
20%
33
10%
39
10%
47
10%
56
10%
68
10%
@ 7.96MHz,0.25V
@ 7.96MHz,0.25V
@ 7.96MHz,0.25V
@ 7.96MHz,0.25V
@ 7.96MHz,0.25V
@ 7.96MHz,0.25V
@ 7.96MHz,0.25V
@ 7.96MHz,0.25V
@ 7.96MHz,0.25V
@ 7.96MHz,0.25V
@ 7.96MHz,0.25V
@ 2.52MHz,0.25V
@ 2.52MHz,0.25V
@ 2.52MHz,0.25V
@ 2.52MHz,0.25V
@ 2.52MHz,0.25V
@ 2.52MHz,0.25V
@ 2.52MHz,0.25V
@ 2.52MHz,0.25V
@ 2.52MHz,0.25V
@ 2.52MHz,0.25V
@ 2.52MHz,0.25V
DCR
() Max.
0.0487
0.0562
0.0637
0.0712
0.0787
0.0862
0.0937
0.1087
0.1257
0.1312
0.1462
0.182
0.210
0.235
0.338
0.378
0.522
0.540
0.587
0.844
0.937
1.117
RATED CURRENT
(A) Max.
2.56
2.52
1.95
1.75
1.58
1.44
1.33
1.15
0.99
0.95
0.84
1.04
0.97
0.85
0.74
0.68
0.62
0.56
0.52
0.44
0.42
0.37
MECHANICAL OUTLINES
5.0
[0.196]
4.5 ± 0.3
[0.177]
3.2 ± 0.3
[0.126]
1.5
[0.059]
1
4.0 ± 0.3
[0.157]
XXX
TOP VIEW
SIDE VIEW
BOTTOM VIEW
4.5
[0.177]
2
PCB SOLDER PAD LAYOUT (REF.) SCHEMATIC
NOTES:
1. All dimensions are shown in millimeters “mm” [inches “in”].
2. General tolerance
0.25mm
[0.010 in.], unless otherwise specified.
3. Irated for an approximate 40°C temperature rise or 20% drop maximum of the nominal value, whichever is lower.
4. Tape and reel quantity, 2000 pcs/reel.
5. For non-RoHS parts, replace DR prefix with 42- (e.g. DR333- becomes 42-333-).
6. Terminal finish is compliant to RoHS requirements. Solder in accordance with J-STD-020D.
