Q25FS5550016313: Description1-Port Saw Resonator,; CategoryPassive components Crystal/resonator; File Size219KB，3 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

Q25FS5550016313 Overview

1-Port Saw Resonator,

Q25FS5550016313 Parametric

Parameter Name	Attribute value
Maker	Seiko Epson Corporation
Reach Compliance Code	unknown
Other features	TR, 13 INCH
Crystal/Resonator Type	1-PORT
frequency stability	0.0122%
Installation features	SURFACE MOUNT
Nominal operating frequency	315.09 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

SAW Resonator

Product name

Product Number / Ordering code

Pb free / Complies with EU RoHS directive

Reference weight Typ. 112 mg

FS-555

FS-555 315.090000MHz 99.0 +50.0-50.0

Q25FS55500163xx

Please refer to the 5.Packing information about xx (last 2 digits)

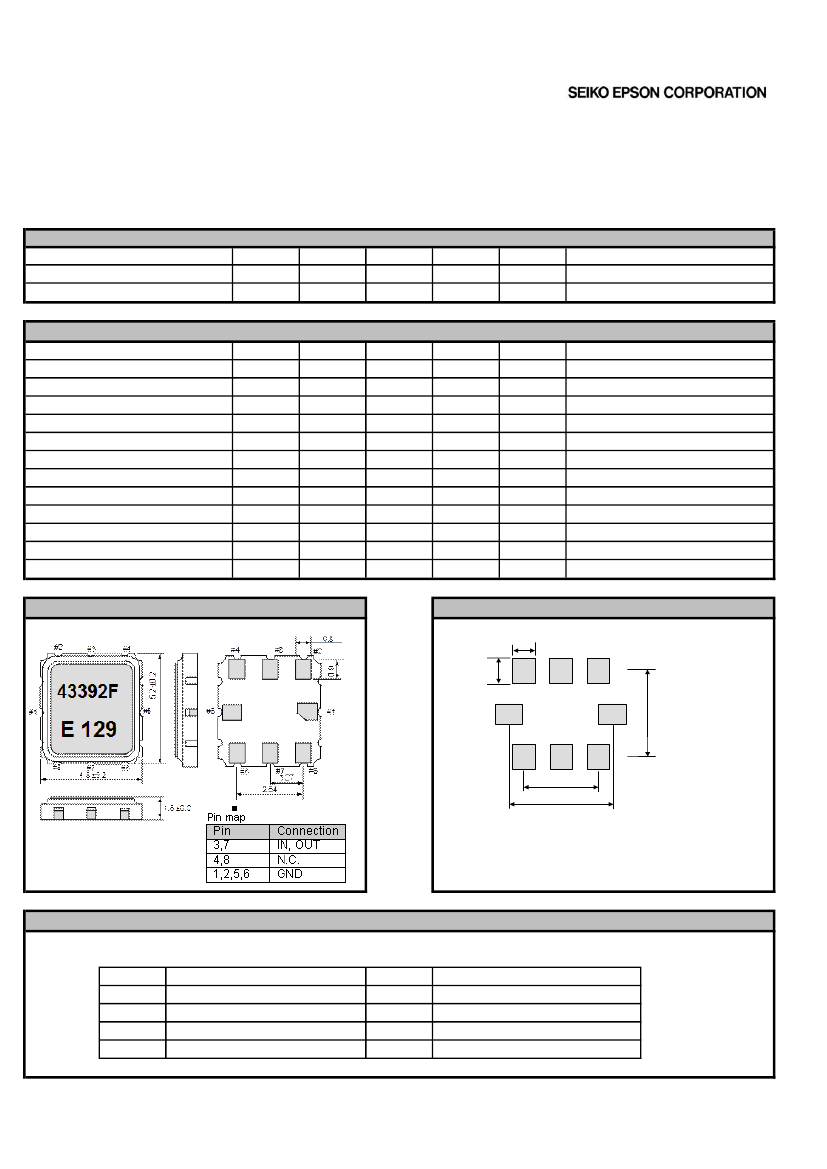

1.Absolute maximum ratings

Parameter

Storage temperature

Maximum drive level

Symbol

T_stg

Min.

-40

Typ.

Max.

10.0

Unit

ºC

Conditions / Remarks

Suppose to be undestroyed

2.Specificatoins(characteristics)

Parameter

Symbol

Nominal frequency

Operating temperature

Level of drive

Frequency tolerance

Turnover temperature

Parabolic coefficient

Motional resistance (ESR)

Motional capacitance

Shunt capacitance

Motional inductance

Inharmonic spurious

Frequency aging

f_nom

T_use

f_tol

RS/R1

f_age

Min.

-40

-50

R1 x 2

-10

Typ.

315.09

-3.4

2.6

TBD

Max.

Unit

MHz

ºC

x 10

-6

ºC

x 10

-8

/ºC

Ω

Conditions / Remarks

312MHz

x10

-6

/yea T_use= +25degC

3.External dimensions

(Unit: mm)

4.Footprint(Recommended)

0.95

(Unit: mm)

1.4

2.54

3.5

#1,#2,#5,#6 are connected

to the cover.

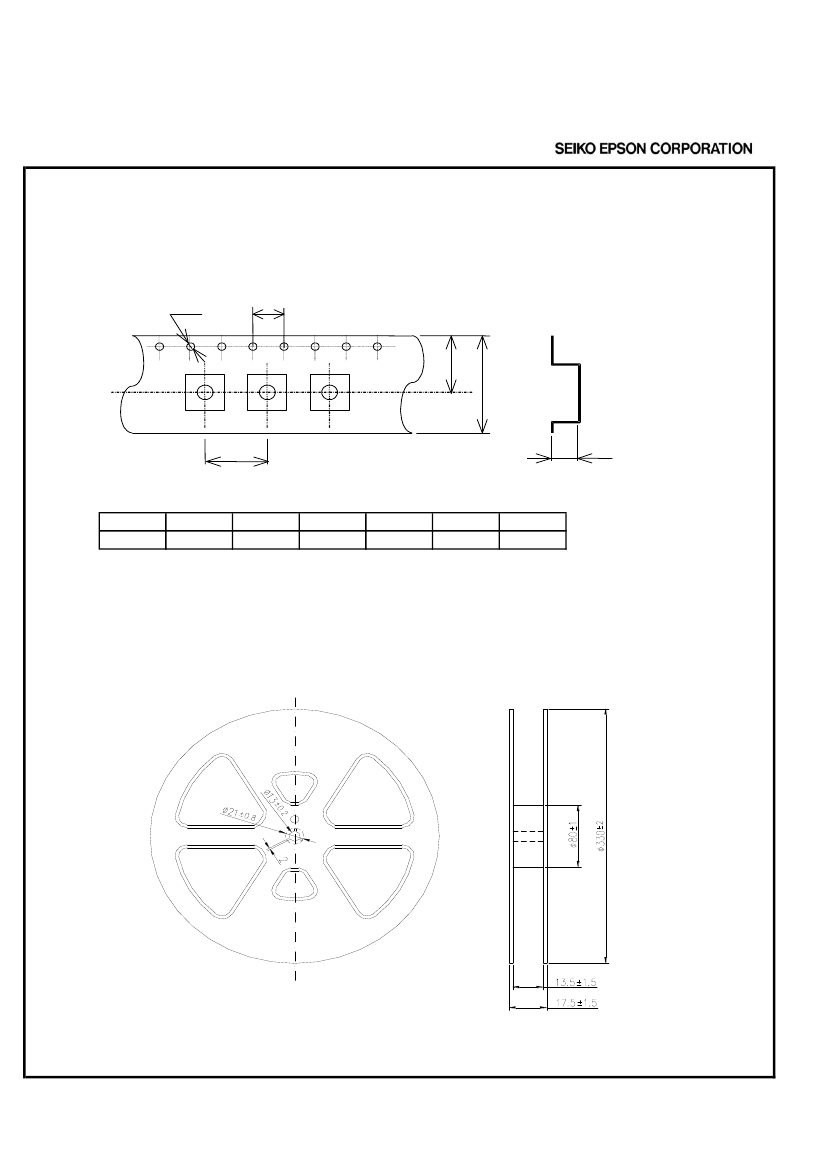

5.Packing information

[ 1 ]Product number last 2 digits code (xx) description

Q25FS55500163xx

The recommended code is "00"

Code

Condition

Any Q'ty vinyl bag(Tape cut)

Any Q'ty / Reel

250pcs / Reel

500pcs / Reel

Code

Condition

1000pcs / Reel

2000pcs / Reel

3000pcs / Reel

4000pcs / Reel

1 Page

4.4

6.Reflow profile

Pre Heating Temperature

Tp1 ~ Tp2 = + 170 °C

Heating Temperature

TMlt = + 220 °C

Peek Temperature

TMax. = + 260 °C

Point of measuring

In case of Solder ability

Terminal.

In case of Resistance to soldering heat

Surface.

Temperature

+260ºC

TMax.

+220ºC

Tmlt

Tp2

Tp1

35s

100s

t(time)

7.Notice



This material is subject to change without notice.



Any part of this material may not be reproduced or duplicated in any form or any means without the written permission

of Seiko Epson.



The information about applied circuitry, software, usage, etc. written in this material is intended for reference only.

Seiko Epson does not assume any liability for the occurrence of infringing on any patent or copyright of a third party.

This material does not authorize the licensing for any patent or intellectual copyrights.



When exporting the products or technology described in this material, you should comply with the applicable

export control laws and regulations and follow the procedures required by such laws and regulations.



You are requested not to use the products (and any technical information furnished, if any) for the development

and/or manufacture of weapon of mass destruction or for other military purposes. You are also requested that you

would not make the products available to any third party who may use the products for such prohibited purposes.



These products are intended for general use in electronic equipment. When using them in specific applications that require

extremely high reliability, such as the applications stated below, you must obtain permission from Seiko Epson in advance.

Space equipment (artificial satellites, rockets, etc.)

/ Transportation vehicles and related (automobiles, aircraft, trains, vessels, etc.)

/ Medical instruments to sustain life

/ Submarine transmitters

/ Power stations and related

/ Fire work equipment and security equipment

/ Traffic control equipment

/ And others requiring equivalent reliability.



All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective.

8.Contact us

http://www5.epsondevice.com/en/contact/

3 Page
