24_BNC-75-2-15/133_NH: DescriptionRF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, ROHS COMPLIANT; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric Compare View All

24_BNC-75-2-15/133_NH Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, ROHS COMPLIANT

24_BNC-75-2-15/133_NH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC 60169-8; MIL-STD-348A/301
subject depth	1.031 inch
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	1 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell material	BRASS
Terminal length	0.393 inch
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

DATA SHEET

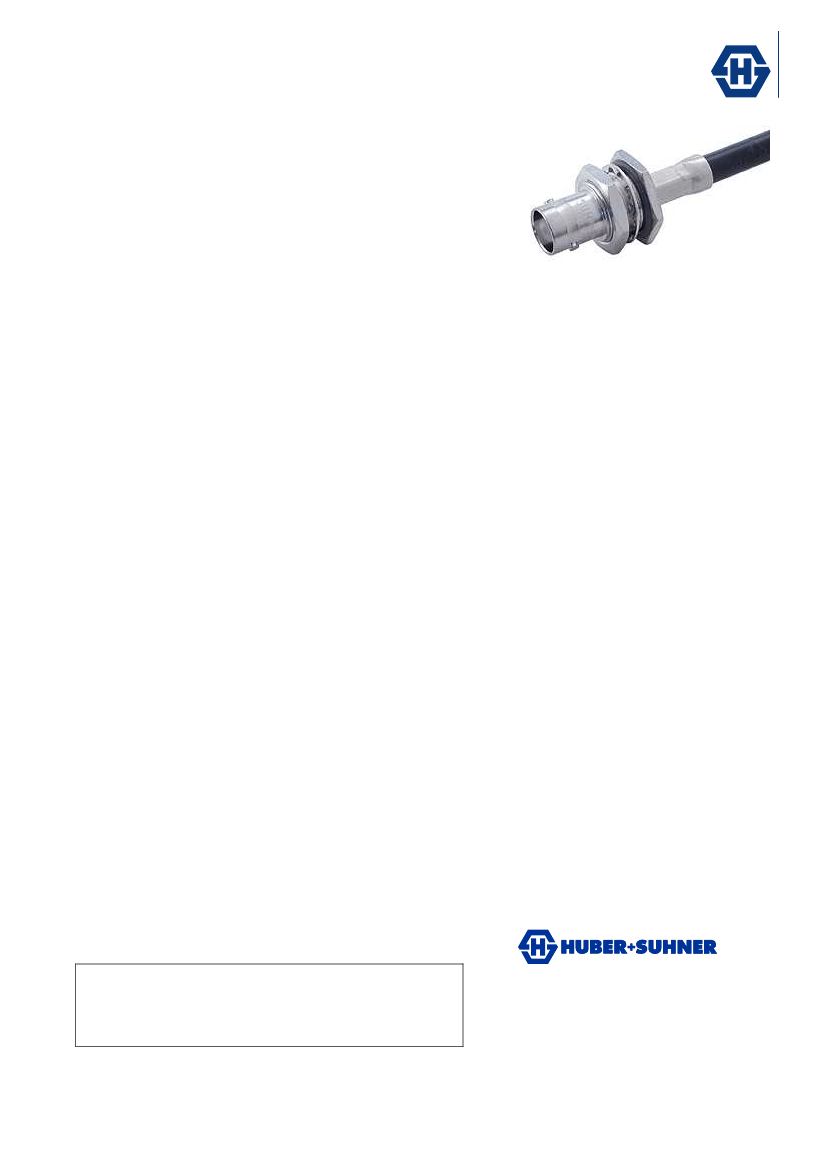

Coaxial Cable Connector: 24_BNC-75-2-15/133_N

Description

Rev.: F

Straight bulkhead cable feed through

Interface Standards

Interface compatible with IEC 61169-8

Technical Data

Electrical Data

Impedance

Interface frequency max.

Ω

1 GHz

crimped

0.0169 kg

-65 °C to 165 °C

compliant

Material

Copper Beryllium / Brass

Brass

PFA / PTFE

MVQ (Silicone Rubber)

Brass

Bronze

Copper

DOU-00009303

DCA-00008942

DOC-0000180036

DOU-00008751

24_BNC-75-2-15/133_NH

24_BNC-75-2-15/133_NE

G_02133_D-05, BT 3002

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

Mechanical Data

Centre contact

Outer contact

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Gasket

Fastening nut

Washer

Crimp ferrule

Material Data

24_BNC-75-2-15/133_NH Related Products

	24_BNC-75-2-15/133_NH	24_BNC-75-2-15/133_NE
Description	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, ROHS COMPLIANT	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
Maker	HUBER+SUHNER	HUBER+SUHNER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Other features	STANDARDS: IEC 60169-8; MIL-STD-348A/301	STANDARDS: IEC 60169-8; MIL-STD-348A/301
subject depth	1.031 inch	1.031 inch
Characteristic impedance	75 Ω	75 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Contact style	COAX	COAX
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	YES	YES
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4
MIL compliance	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Number of ports	1	1
Maximum operating frequency	1 GHz	1 GHz
Maximum operating temperature	165 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
reliability	COMMERCIAL	COMMERCIAL
Shell material	BRASS	BRASS
Terminal length	0.393 inch	0.393 inch
Termination type	CRIMP	CRIMP
Total number of contacts	1	1
Base Number Matches	1	1
