PIN GRID ARRAY SOCKETS
SOLDER TAIL / SURFACE MOUNT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

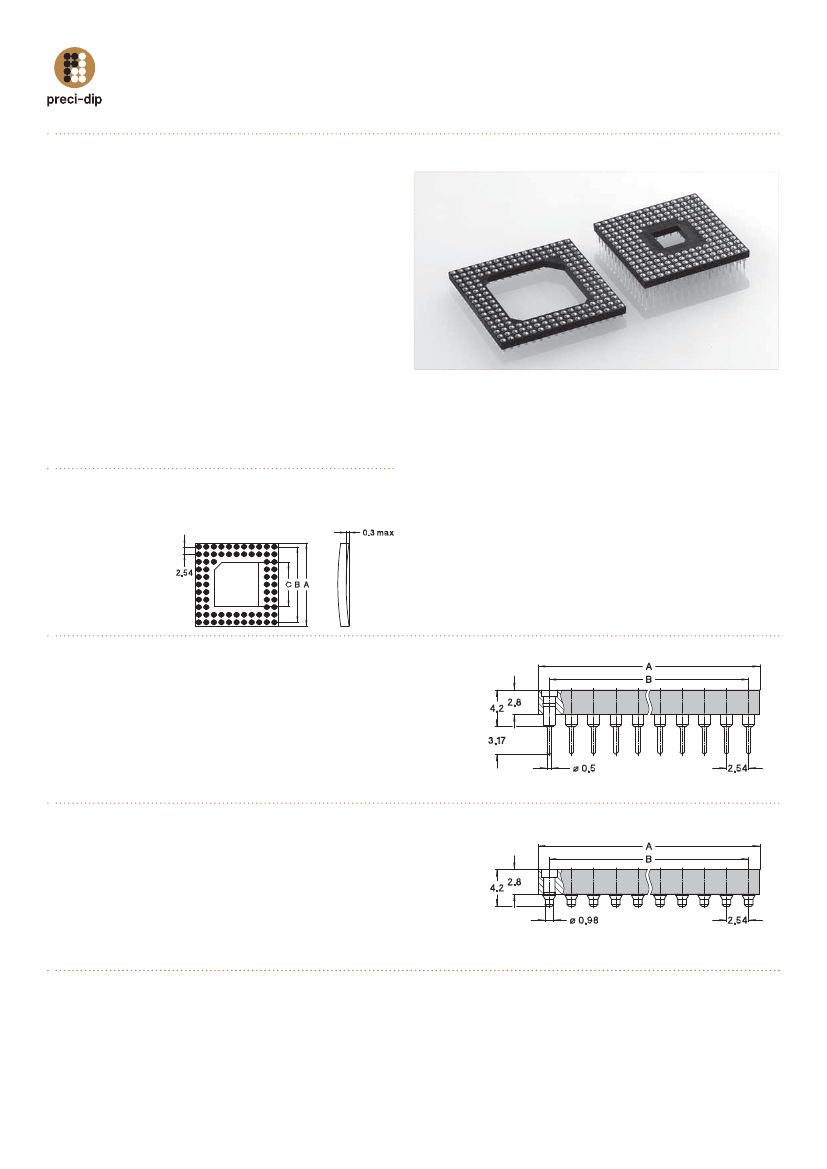

Pin grid array sockets, standard solder version and surface mount with floating contacts.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
FL AMMABILIT Y
SLEEVE
CONTACT CLIP (6 FINGER)
ACCEPTED PIN Ø
FORCES
MECHANICAL LIFE
RATED CURRENT
CONTACT RESISTANCE
DIELECTRIC STRENGTH
Black glass filled polyester PCT-GF30-FR
UL 94V-O
Brass CuZn36Pb3 (C36000)
Beryllium copper (C17200)
0.40 to 0.56 mm
0.7 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
Min. 100 cycles
1A
Max. 10 m
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87
83
Tin
Tin
Flash gold
0.75 μm gold
Other plating on request (see page 178 for plating specs).

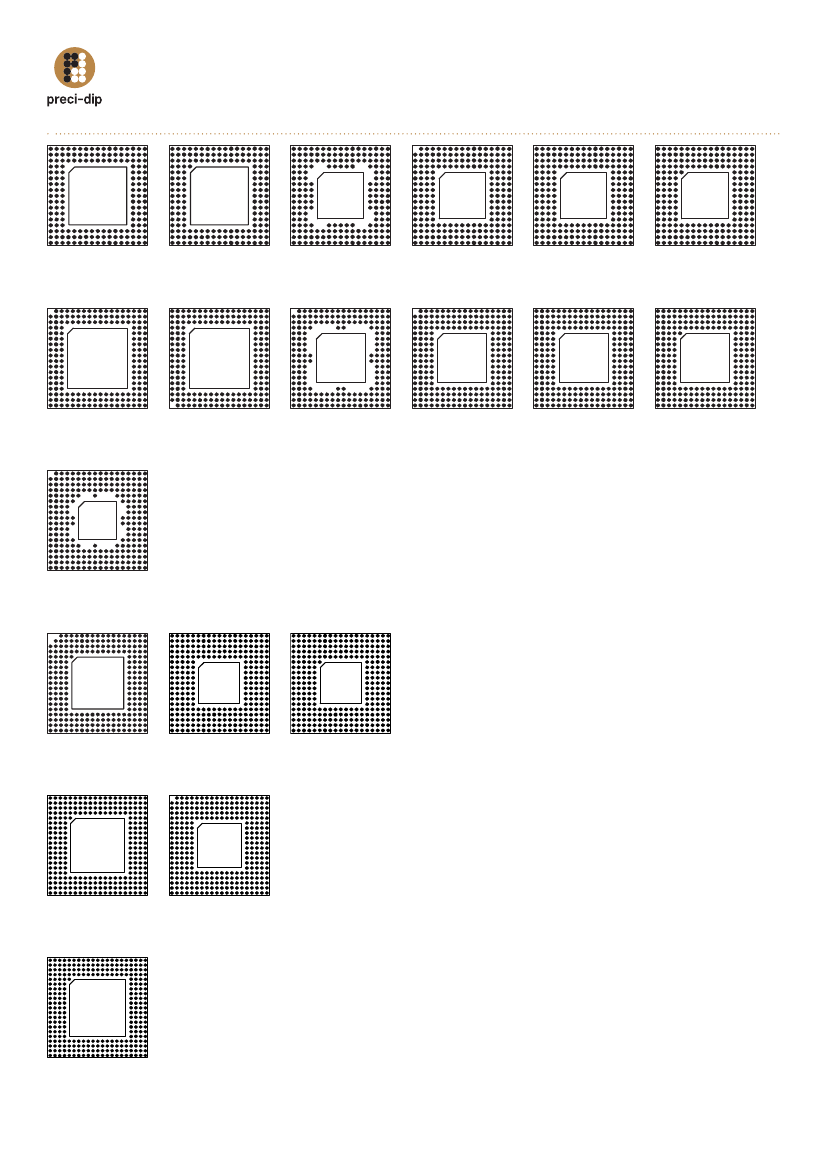

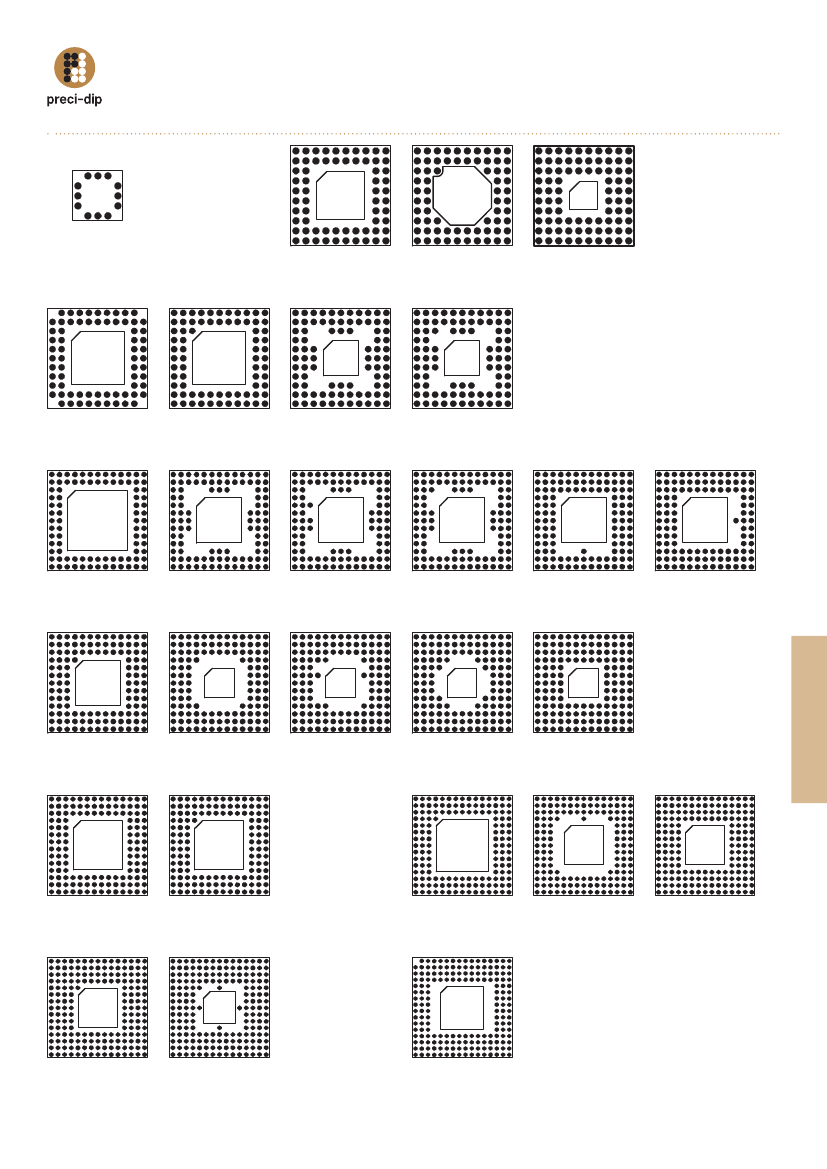

Replace
NNN
with the number of poles and
XX-XXX
with body size
and layout numbers as indicated on pages 159 to 160.
For example a 17x17 pin configuration with window and 168 contacts
as shown on page 160 becomes 510-83-168-17-101101.
Options:
please consult for availability
- PGA sockets with optional standoffs
- PGA sockets with solder tails, length 4.2 mm
- PGA sockets with low profile contacts and solder tails of 2.8 mm length
- PGA interconnect sockets with other contact lengths.
DIMENSIONS
Calculate with n1 = number of contacts in one line and n2 =
characteristic size of the window
A = n1x2.54
B = (n1-1)x2.54
C = (n2x2.54)-0.40
510-PP-NNN-XX-XXX101
PGA sockets with standard solder tails, length 3.17 mm.
514-PP-NNN-XX-XXX117
PGA sockets with self-aligning SMD floating contacts.
Contact diameter of soldering end 0.98 mm, allowing PCB pads
as small as 1.1 mm.
156
Due to technical progress, all information provided is subject to change without prior notice.
