GL2L5MS180D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> GL2L5MS180D

Preview

GL2L5MS180D: DescriptionActive Delay Line, 1-Func, PDSO16, SOP-16; Categorylogic logic; File Size187KB，2 Pages; ManufacturerSUSUMU

Download Datasheet Parametric View All

GL2L5MS180D Overview

Active Delay Line, 1-Func, PDSO16, SOP-16

GL2L5MS180D Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Output impedance nominal value (Z0)	50 Ω
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	4.85 mm
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Total delay nominal (td)	1.8 ns
Base Number Matches	1

Preview

Download Datasheet

View All

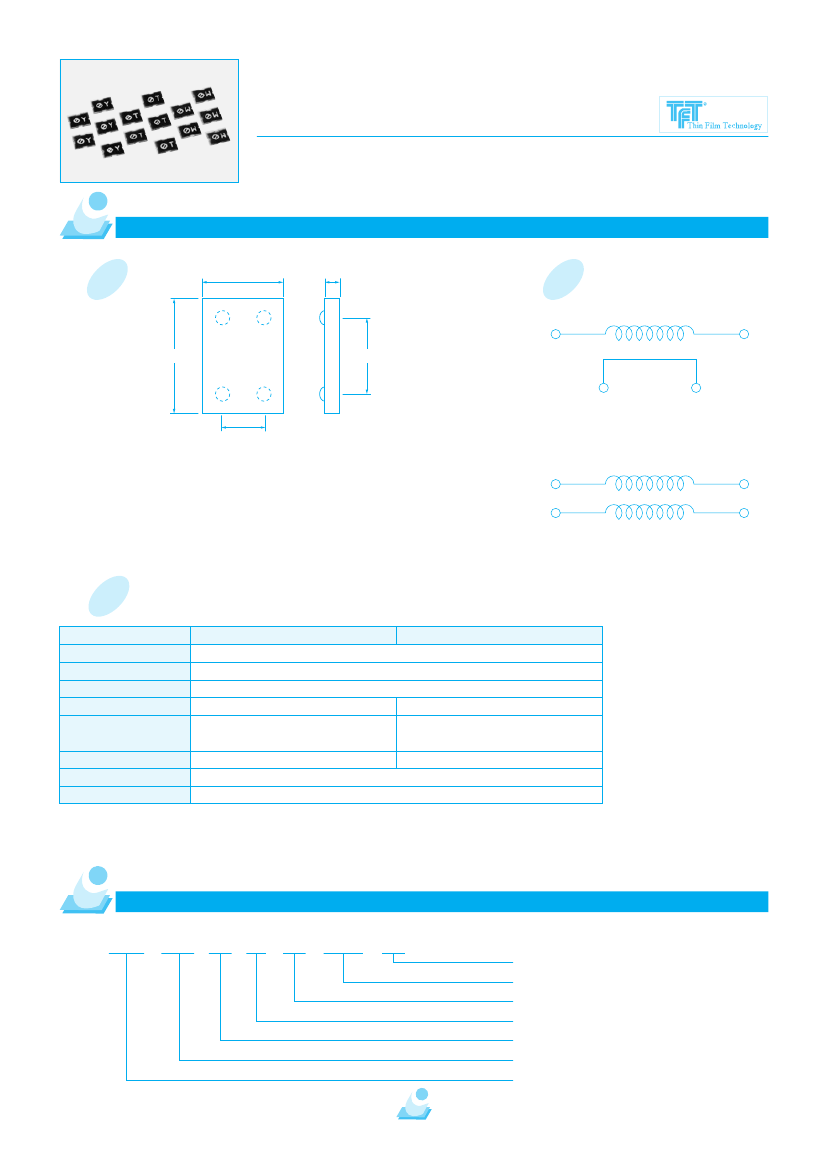

BL1L series, ball-grid-array thin

film delay lines

These delay lines offer the same excellent frequency performance as GL delay lines but

come in a solder bump configuration that takes up less board space than the GL series. As with all of TFT s delay

lines, these feature stripline conductors on ceramic for high speed, high stability performance.

SPECIFICATIONS

6.4 0.20

H

Now under development

Mechanical

7 8

1.27 typ

10.20

0.20

Time Delay

0.1 0.9n sec

1.0 1.8n sec

1.9 2.7n sec

2.8 3.5n sec

H

1.70max

2.30max

2.80max

2.90max

Code

L

M

N

O

Equivalent circuit

3

10

1 14

1 2

0.8MAX.

13 14

PART NUMBER

1.2typ

(dimension:mm)

Electrical

Type

Time Delay

Time Delay Tolerance

Characteristic Impedance

Rated Current

DC Resistance

Insulation resistance

Operating Tem. Range

Storage Tem. Range

BL1L5

0.1 3.5n sec.(0.1n sec. Step)

0.05n sec.

50 5

100mA

1.0 /n sec. Max.

100 (DC50V)

40 85 C

55 125 C

BL1L 5 N T 250 S T1

Package

(T Tape, 1 100)

Serial code

Time Delay

(250 2.50n sec)

solder bump

Height code

Impedance

Part Code,

Number of elements

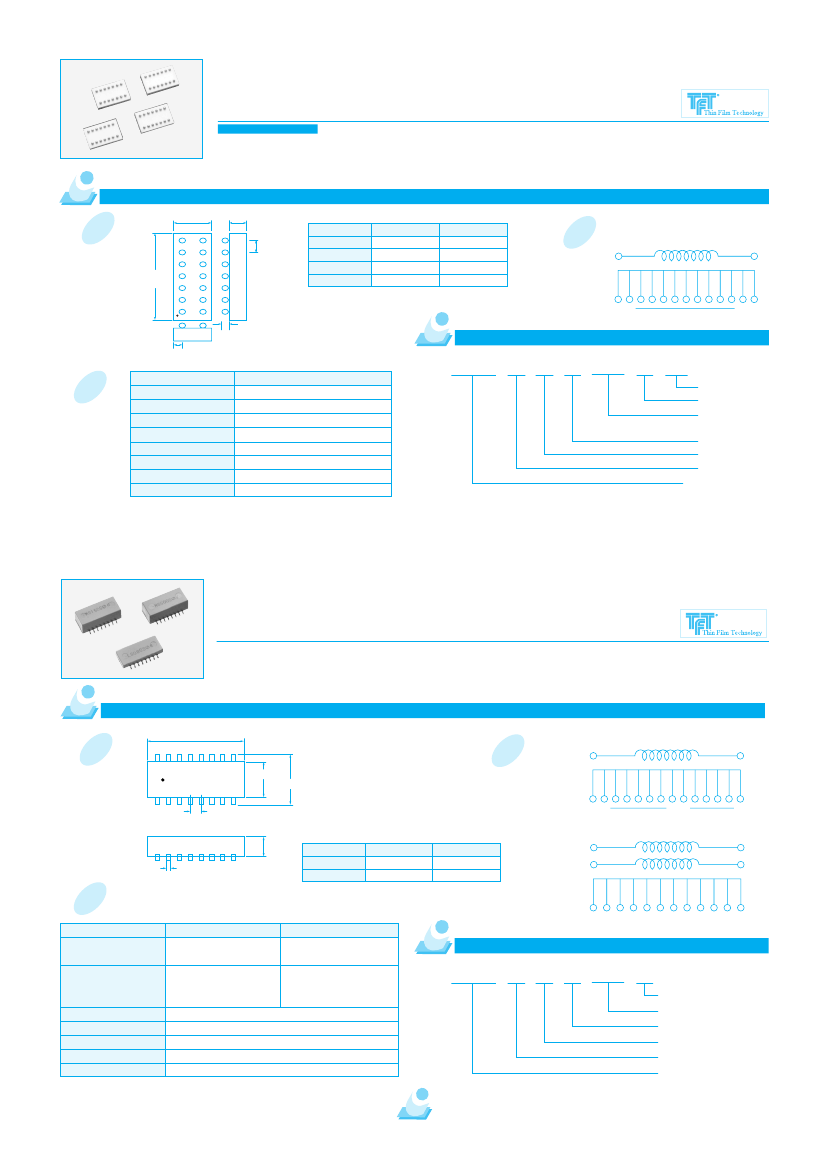

GL1L/GL2L series, SOP(small outline package)

thin film differential delay lines

These delay lines offer the same excellent frequency performance as SIP delay lines but come in a gullwinged surface mount

package. The differential SMT is useful for PECL application, and contains two identical transmission lines matched for

the time delay. Featuring a stripline shielded construction, these parts offer very low EMI/RFI, and are ideal for high

frequency/tight tolerance timing and deskew applications.

SPECIFICATIONS

13.66max

GL1L

9

Mechanical

16

Equivalent circuit

6.06max

8.35max

2

10

MS250SθE

1

1.27 0.13

8

1 3

9 11

GL2L

16

H

0.56max

(dimension : mm)

Time Delay

0.1 1.0ns

1.1 5.0ns

H

2.37max

4.85max

Code

L

M

2

15

7

10

Electrical

1 3 4 5 6 8 9 11 12 13 14 16

Type

Time Delay

GL1L

0.1 5.0ns(0.1ns step)

GL2L

0.1 3.0ns(0.1ns step)

3.5 4.5ns(0.5ns step)

0.05ns(0.1 2.9ns)

0.5/+0.1ns(3.0ns)

0.1ns(3.5 4.5ns)

0 150ppm/ C

50 5

200ps/ns

100mA

25 85 C

PART NUMBER

Time Delay Tolerance

Temp. coefficient of Td

Characteristic Impedance

Rise/fall time

Rated Currrent

Operating Temperature

0.05ns

GL1L 5 M S 250 S

Circuit : S(GL1L),D(GL2L)

Time Delay : (250 2.50ns)

Lead Frame

Height code

Impedance : (5 50V)

Part Code

susumu group catalog
