Memory Card Connectors
Contents
I
ntroduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PCMCIA PC MEMORY CARD CONNECTORS
Features/Benefits
Series 5025, 5027, 5069, 9170 . . . . . . . . . . . . . . . . . . . 3
Series 5620
Product Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . 33
Header/Ejector Assembly H=0mm
(Connector/Assembly) . . . . . . . . . . . . . . . . . . . . . . . 38
Header/Ejector Assembly H=2mm
(Connector/Ejector Assembly) . . . . . . . . . . . . . . . . . 39
Series 5025
Product Selection Guide
(Single SMT, Single DIP, Dual DIP/DIP) . . . . . . . . . 4, 5
SMT Single Header/Ejector Assembly . . . . . . . . . . . . . 6, 7
DIP Single Header/Ejector Assembly . . . . . . . . . . . . . . 8, 9
DIP Dual Header/Ejector Assembly . . . . . . . . . . . . . 10, 11
Series 5611/5612
How To Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Series 5612
Card Kit Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Series 5611
Receptacle Connector (Single Side, Straddle Tail) . . . . . . . 42
Receptacle Connector Package (Tape & Reel Package) . . 43
Series 5069
Product Selection Guide (Single Side, Straddle Tail) . . . . 12
Receptacle Connectors (Single Side, Straddle) . . . . . . . . 13
Series 5027
Product Selection Guide
(Connector Style, Ejector Style) . . . . . . . . . . . . . . . . 14
Header/Ejector Assembly H=0mm (Connector, Ejector) . 15
Header/Ejector H=0mm (Assembly) . . . . . . . . . . . . . . . . 16
Header/Ejector H=2.2mm (Connector, Ejector) . . . . . . . . 17
Header/Ejector H=2.2mm (Assembly) . . . . . . . . . . . . . . 18
Card Bus SMT Connector Vacuum Cover H=0mm. . . . . 19
MULTI MEDIA CARD CONNECTORS
Series 5038
Features/Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
With Ejector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Without Ejector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Spring Eject Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
SECURE DIGITAL MEMORY CARD
CONNECTORS
Series 5638
Features/Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Spring Eject Type . . . . . . . . . . . . . . . . . . . . . . . . . . . 49-50
Without Ejector Type . . . . . . . . . . . . . . . . . . . . . . . . 51-52
Type II Frameless Card Kit
Series 9170
Features/Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Product Selection Guide
(PCMCIA Type II - Frameless Card Kit) . . . . . . . . . . . 21
68 Position Receptacle . . . . . . . . . . . . . . . . . . . . . . . . . 22
68 Position Card Bus . . . . . . . . . . . . . . . . . . . . . . . . . 23
Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
I/O Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Dual I/O Concepts and Blank I/O. . . . . . . . . . . . . . . . . . 26
Extended Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Mating I/O Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Assembly Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
PCB Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cross Section View . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
S.O. DIMM CONNECTORS
Series 6401/6402/6403
Features/Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Series 6402
144P Right Angle SMT with Plastic Latch
H=4.0mm, H=5.2mm . . . . . . . . . . . . . . . . . . . . . . . 54
H=5.6mm, Tray Package. . . . . . . . . . . . . . . . . . . . . 55
Series 6401
72P Right Angle SMT
H=5.5mm, Tray Package. . . . . . . . . . . . . . . . . . . . . 56
COMPACT FLASH MEMORY CARD
CONNECTORS
Type I Series 5610/5611/5612
. . . . . . . . . . . . . . . . . 32
Type II Series 5620
. . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Series 5610
Product Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . 33
Header/Ejector Assembly H=0mm (Connector, Ejector) . 34
Header/Ejector Assembly H=0mm (Assembly) . . . . . . . . 35
Header/Ejector Assembly H=2mm (Connector, Ejector) . 36
Header/Ejector Assembly H=2mm (Assembly) . . . . . . . . 37
Series 6403
144P Straight SMT Type
3.3V, 5.0V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Series 6403
144P Straight Through Hole Type
3.3V, 5.0V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
S.O. DIMM CONNECTORS
Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
INTERNET/FAX/CD ROM/SOFTWARE
Additional Information on AVX Products . . . . . . . . . . . . . 60
ELCO
1
Memory Card Connectors
Introduction
AVX offers a broad range of Memory Card connectors for removable storage memory applications in hand held data and
communications equipment.
PCMCIA
5025 Connectors, SMT, DIP, Zero standoff, 5v, Normal and Reverse, Single and Dual
5025 Ejectors, SMT, DIP, Zero standoff, 5v, Normal and Reverse, Single and Dual
5069 Connectors, Single/Double sided, Zero Standoff, 5v, Reverse
5027 Connectors, SMT, Zero and 2.2mm standoff, 3.3v and 5v, Normal and Reverse
5027 Ejectors, SMT, Zero and 2.2mm standoff, 3.3v and 5v, Normal and Reverse
5027 Cardbus Connectors, SMT, Zero standoff
9170 Type II Frameless Kit, Covers, 68 position connector, 3.3v and 5v and I/O options
9170 Frameless Kit Plug Accessories
Custom I/O Bulge Options
COMPACT FLASH (CF)
5610
5610
5620
5620
5611
5612
Connectors, Type I, Zero and 2mm standoff, Normal and Reverse
Ejectors, Type I, Zero and 2mm standoff, Normal and Reverse
Connectors, Type II, Zero and 2mm standoff, Normal and Reverse
Ejectors, Type II, Zero and 2mm standoff, Normal and Reverse
Connectors, Type I & II, Single/Double sided
Covers With Insulating Tape
MULTIMEDIA CARD (MMC)
5038 Connectors, Non-eject, push eject, and push/push eject options
SECURE DIGITAL (SD)
5638 Connectors, Non-eject, push eject, and push/push eject options
S.O. DIMM
6401 Connectors, SMT RA, 5.5mm profile height
6402 Connectors, SMT, RA, profile height options 4, 5.2 and 5.6mm
6403 Connectors, SMT/DIP, ST, 3.3v and 5v
2
ELCO
PCMCIA PC Memory Card Connectors
Features/Benefits

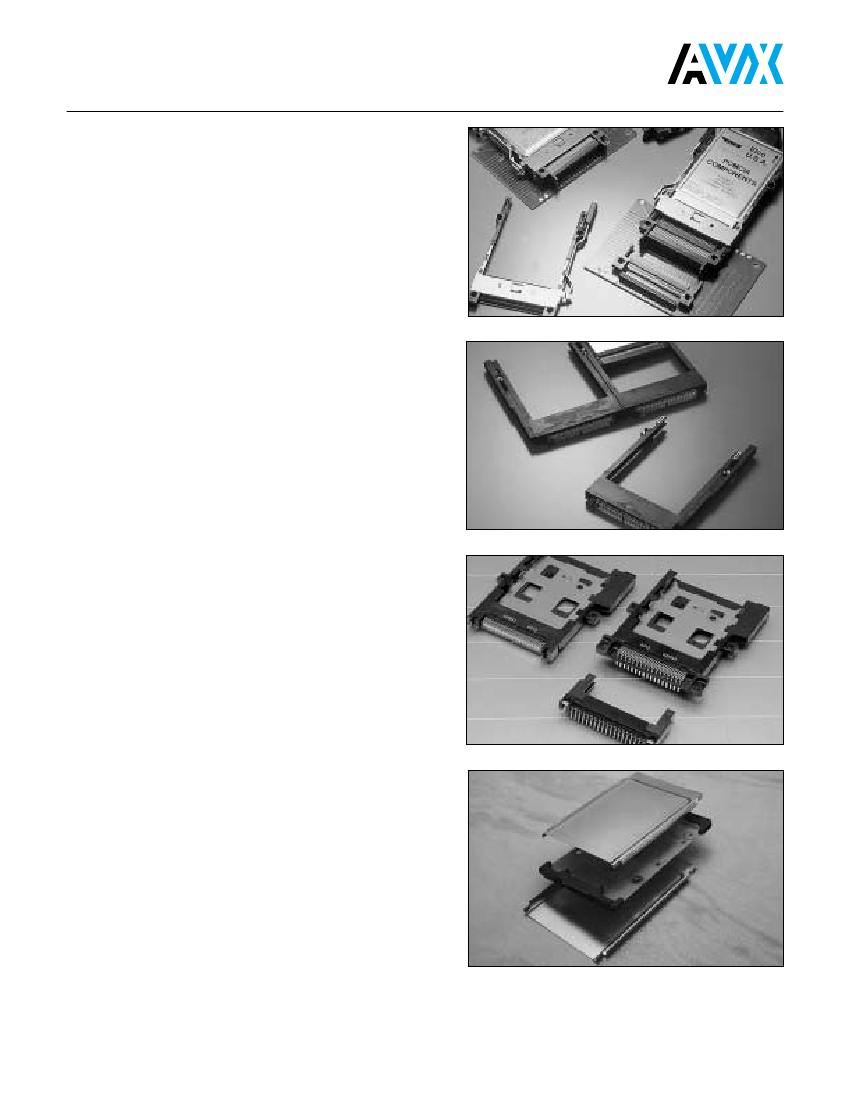

SERIES 5025
Series 5025 offers single or double stacked header combinations in SMT
or Through Hole.
Also, this series meets the requirements of Ver. 4.2/PCMCIA Type I, II and
III equipment.
Upper and lower stage of header offers the combination of DIP/SMT and
DIP/DIP.
TECHNICAL SPECIFICATIONS
Number of Contacts:
Pitch:
Current Rating:
Voltage Rating:
DW Voltage:
Mating Cycles
68, 136 (with ESD terminal)
1.27mm (0.05)
0.5A Max.
5V Max.
500V rms/min.
10,000
SERIES 5027
T
his is an SMT lightweight connector for 3.3v or 5v cards.
Height is 5.0mm (0.197), weight is under 10 grams (with single ejector
mechanism) which is one of the lightest available in this industry.
Dual type is 2 pcs, side-by-side configuration and you can choose
“With Ejector type” or “Without Ejector type”.
This meets the requirements of PCMCIA, Type I, II and III.
TECHNICAL SPECIFICATIONS
Number of Contacts:
Pitch:
Current Rating:
Voltage Rating:
DW Voltage:
Mating Cycles
68, 136
1.27mm (0.05)
0.5A Max.
5V Max.
500V rms/min.
10,000
SERIES 5069
1.27mm (0.05) pitch 68 positions plug connector designed for PC card.
Contacts on the card side is arranged in two rows and the substrate
side has DIP type and SMT type.
Receptacle (card side) connector is also available.
TECHNICAL SPECIFICATIONS
Number of Contacts:
Pitch:
Current Rating:
Voltage Rating:
DW Voltage:
Mating Cycles
68
1.27mm (0.05)
0.5A Max.
5V Max.
500V rms/min.
10,000
SERIES 9170
9170 Series is the PC card connector. It complies with JEIDA/PCMCIA
Type II.
Greatest PCB # spacing available in the market allowing design engineer
to compact more electronics components onto the PCB board.
Assembly tooling can be supplied to reduce OEM cycle time.
Top/Bottom cover has a unique patented interlocking mechanism, which
offers a Robust construction.
Complete I/O connection system is available.
Dedicated I/O connector offered with options of with/without co-axial
contacts or Blank I/O.
ELCO
3
