39-26-5104 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-26-5104

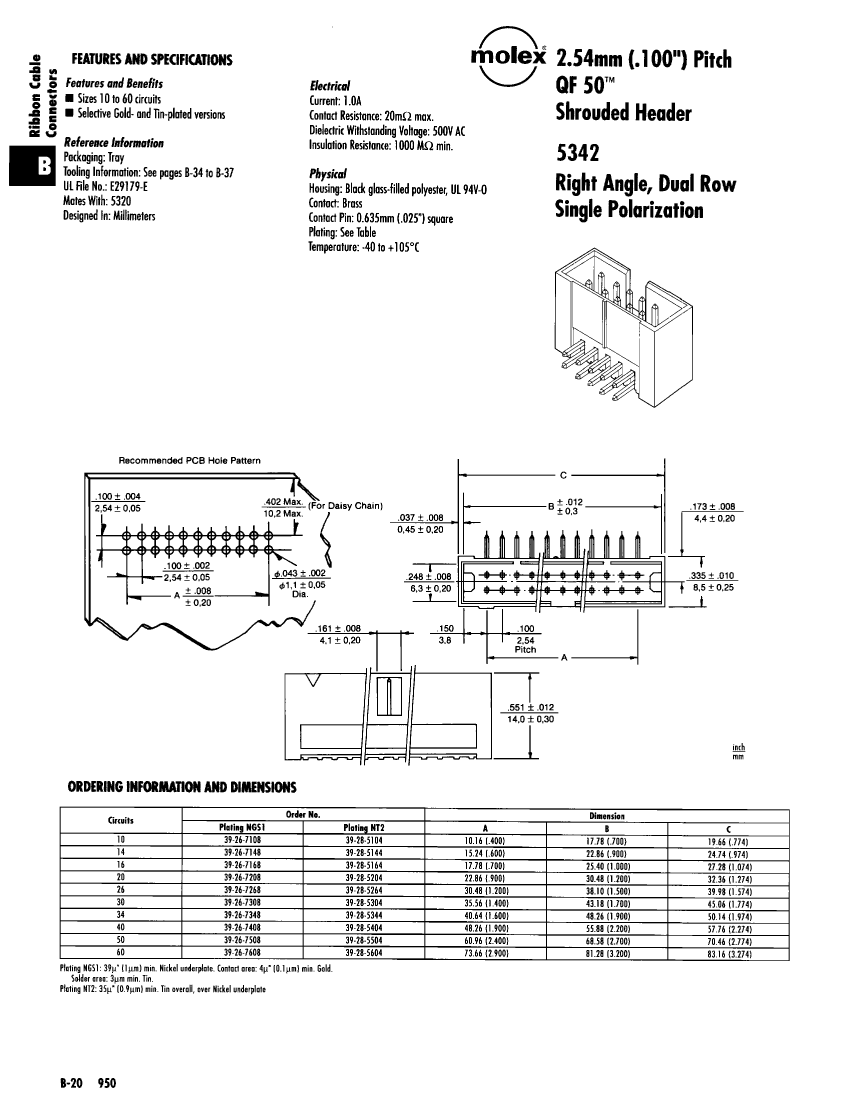

39-26-5104: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39-26-5104 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

39-26-5104 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	QF 50
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5342
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

39-26-5104 Related Products

	39-26-5104	39-26-5604	39-26-5164	39-26-5264	39-26-5304	39-26-5504	39-26-5144	39-26-5404	39-26-5204	39-26-5344
Description	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	QF 50	QF 50	QF 50	QF 50	QF 50	QF 50	QF 50	QF 50	QF 50	QF 50
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	5342	5342	5342	5342	5342	5342	5342	5342	5342	5342
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	60	16	26	30	50	14	40	20	34
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1	1
