20P-JANK-GSAN-2-TF(LF)(SN) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 20P-JANK-GSAN-2-TF(LF)(SN)

20P-JANK-GSAN-2-TF(LF)(SN): DescriptionBoard Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size135KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

20P-JANK-GSAN-2-TF(LF)(SN) Overview

Board Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug, ROHS COMPLIANT

20P-JANK-GSAN-2-TF(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	LOW PROFILE
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

0.4mm pitch/Board-to-board connectors

JAN

CONNECTOR

Emboss Tape

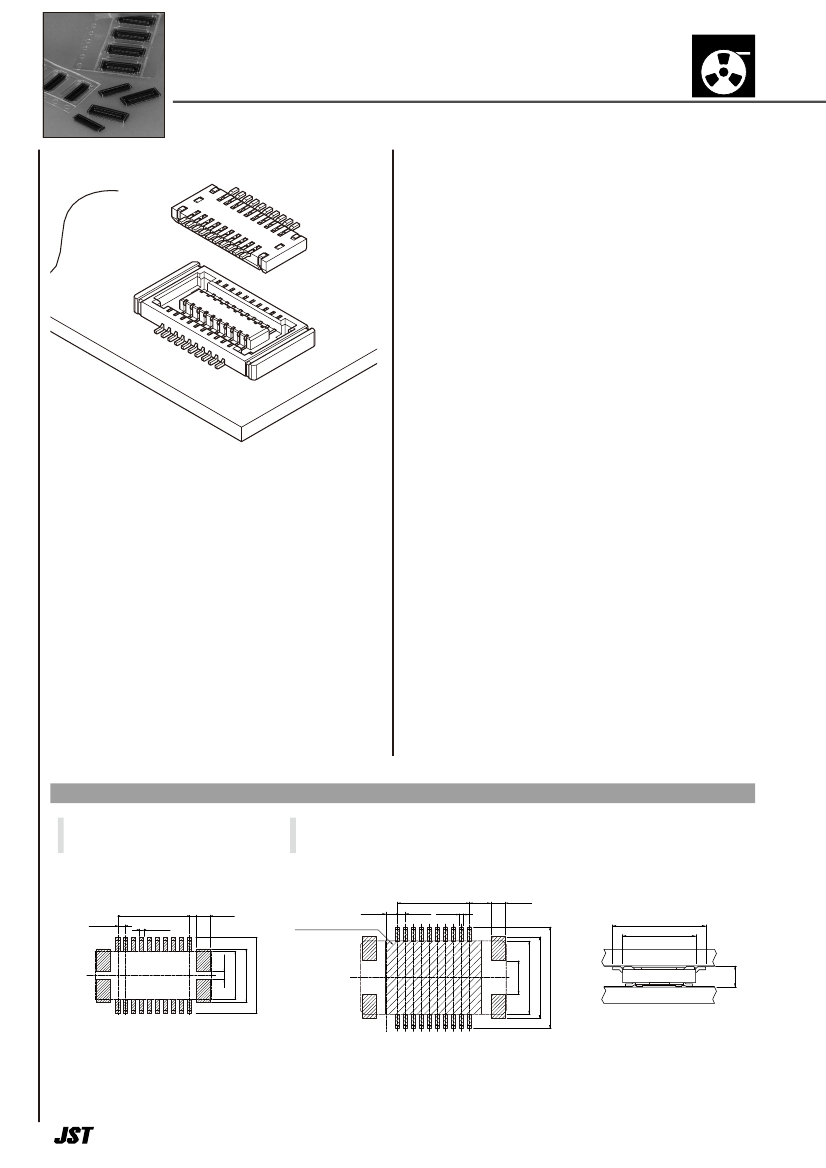

Specifications –––––––––––––––––––

This JAN connector is a board-to-board

connector with stacking height 1.0mm and

0.4mm pitch, which is the lowest-profile

connector in the [electro mechanical

component] industry.

In consideration of operability at user side,

although it is 1.0mm low profile, when

mating receptacle with plug, the connector

structure, where the large amount of

guiding connector can be taken, is

adopted, and differentiates JAN connector

with added value.

• Locking mechanism of contact

• Wiping contact structure

• Reinforcement tabs

• Current rating: 0.2A AC, DC

• Voltage rating: 30V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/70m

Ω

max.

After environmental testing/140m

Ω

max.

• Insulation resistance:

50M

Ω

min.

• Withstanding voltage: 100V AC/minute

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Certified LR20812

Receptacle

Recognized E60389

PC board layout (viewed from component side) and Assembly layout

Plug

±0.05

0.4

±0.03

±0.05

＋0.05

1.05

±0.1

＋0.05

0.7

±0.1

（4.7）

3.7

0.35

±0.1

0.7

±0.1

0.5

Pattern prohibition area

±0.1

0.4

±0.03

0.2

0.5

±0.1

2.4

2.7

±0.1

3.8

±0.1

1.8

±0.1

3.7

±0.1

4.1

±0.1

5.1

±0.1

Note: 1. Tolerances are non-cumulative:

0.03mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

1.0
