Product datasheet
Characteristics

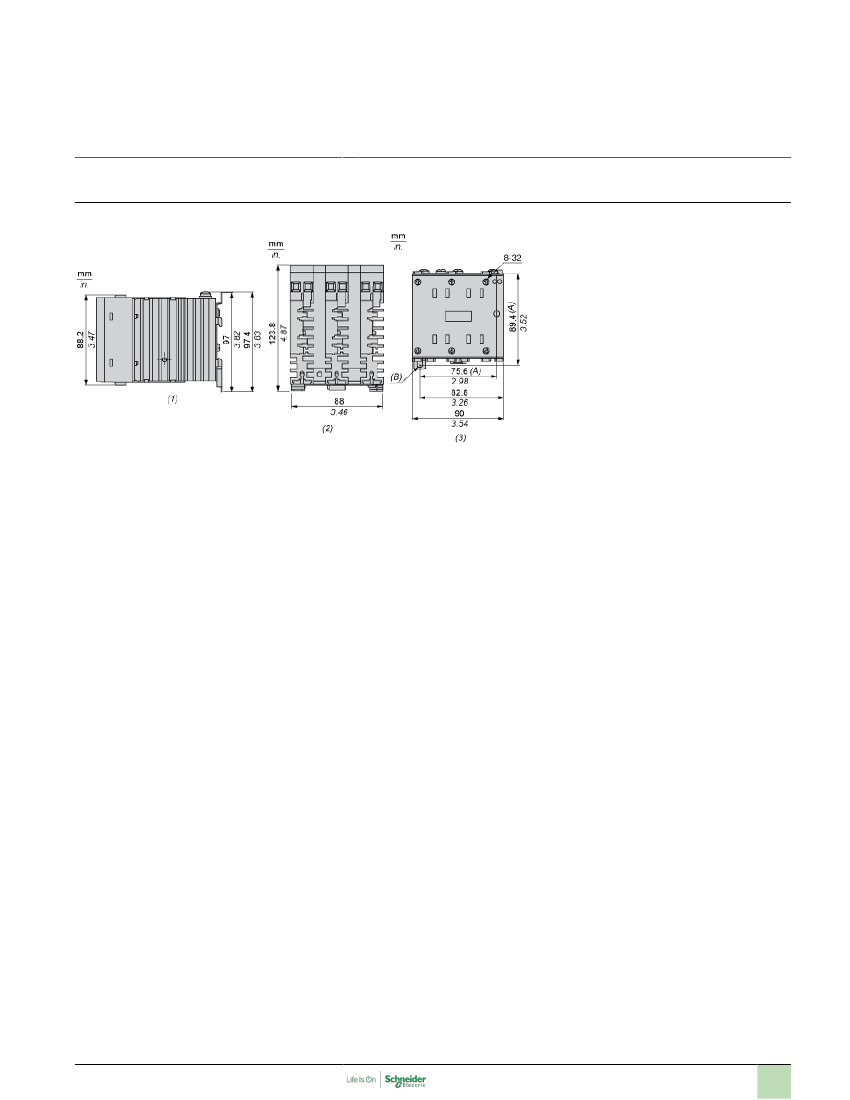

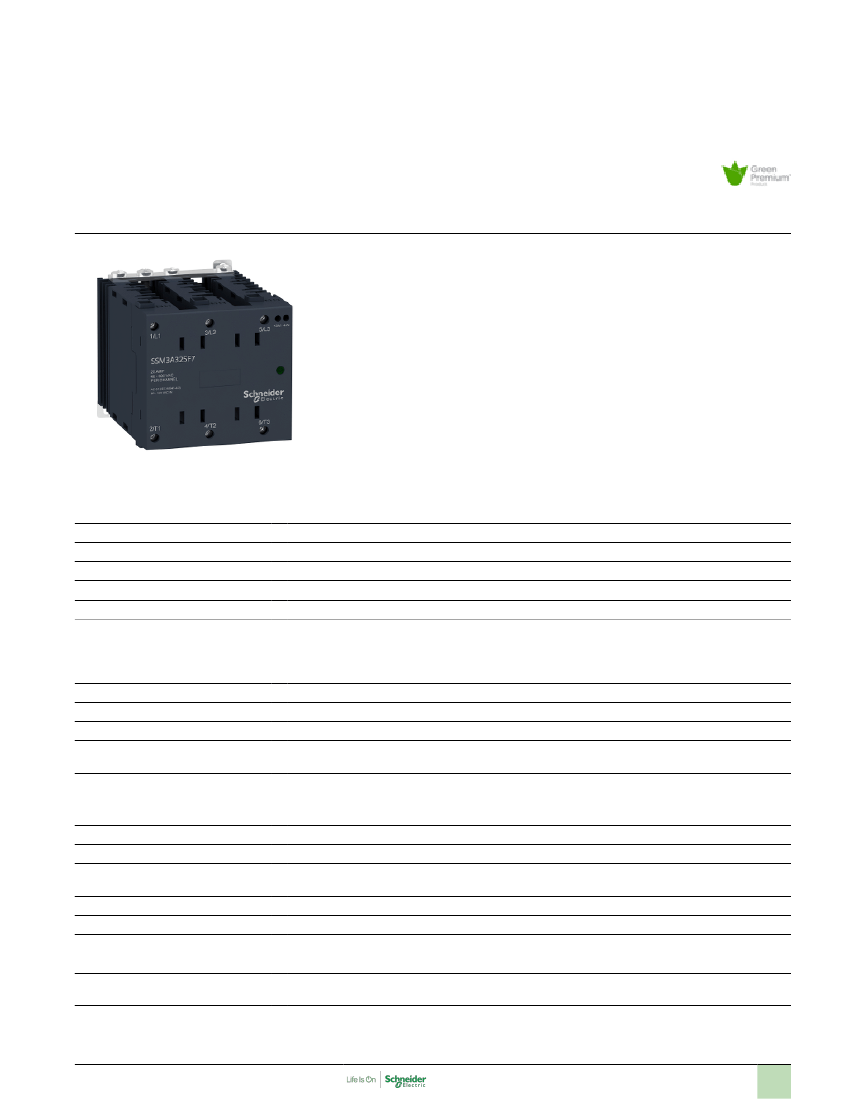

SSM3A325F7
solid state relay - DIN rail mount - input
90-140Vac, output 48-600Vac, 25A
Main
Range of product
Product or component type
Device short name
Number of channels
Number of phases
Zelio Relay
Solid state relay
SSM3
3
3 phases
Complementary
Mounting support
Output voltage
[Uc] control circuit voltage
Contacts type and configuration
Tightening torque
Connections - terminals
Maximum capacitance
Insulation resistance
Local signalling
Switching voltage
Input current
Solid state output type
Load current
Transient overvoltage
Surge current
Maximum voltage drop
Motor power hp
Aug 18, 2019
Symmetrical DIN rail
48...600 V AC
90...140 V AC
3 NO
0.6...0.7 N.m for input
1.36...1.7 N.m for output
Screw terminals: 0.2...1.3 mm², (AWG 24...AWG 16) for input
Screw terminals: 1.3...5.3 mm², (AWG 16...AWG 10) for output
8 pF for input/output
1000 MOhm
Input status: LED (green)
90 V turn-on
10 V turn-off
15…19 mA
Zero voltage switching
0.1…25 A
1100 V
286 A for 20 ms at 50 Hz
300 A for 16.6 ms at 60 Hz
<1.35 V on-state
1 hp 40 °C 240 V AC
2 hp 40 °C 380 V AC
1
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
3 hp 40 °C 480 V AC
Maximum I²t for fusing
Maximum leakage current
DV/Dt
Response time
Power factor
Overvoltage category
Net weight
410 A².s for 10 ms at 50 Hz half cycle
374 A².s for 8.3 ms at 60 Hz half cycle
0.25 mA off-state
500 V/µs off-state at maximum voltage
30 ms (turn-off)
20 ms (turn-on)
0.5 (with maximum load)
III
0.74 kg
Environment
Dielectric strength
Pollution degree
Standards
4 kV AC for input/output
4 kV AC for input or output to case
2
IEC 60950-1
UL 508
CSA C22.2 No 14
UL
EAC
CSA
CSA
UL
CE
EAC
IP20
-20…80 °C
-40…100 °C
Product certifications
Marking
IP degree of protection
Ambient air temperature for operation
Ambient air temperature for storage
Offer Sustainability
Sustainable offer status
REACh Regulation
EU RoHS Directive
Mercury free
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
Green Premium product
REACh Declaration
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Yes
Yes
Download RoHS China Declaration
Product Environmental Profile
End of Life Information
Contractual warranty
Warranty
18 months
2
