7650-7121: DescriptionTelecom and Datacom Connector, 96 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

7650-7121 Overview

Telecom and Datacom Connector, 96 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

7650-7121 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	SPLIT BOARD LOCK
body width	0.543 inch
subject depth	0.837 inch
body length	6.726 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	500VAC V
Insulation resistance	10000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	7650
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	12
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRONZE
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
Base Number Matches	1

Preview

Download Datasheet

View All

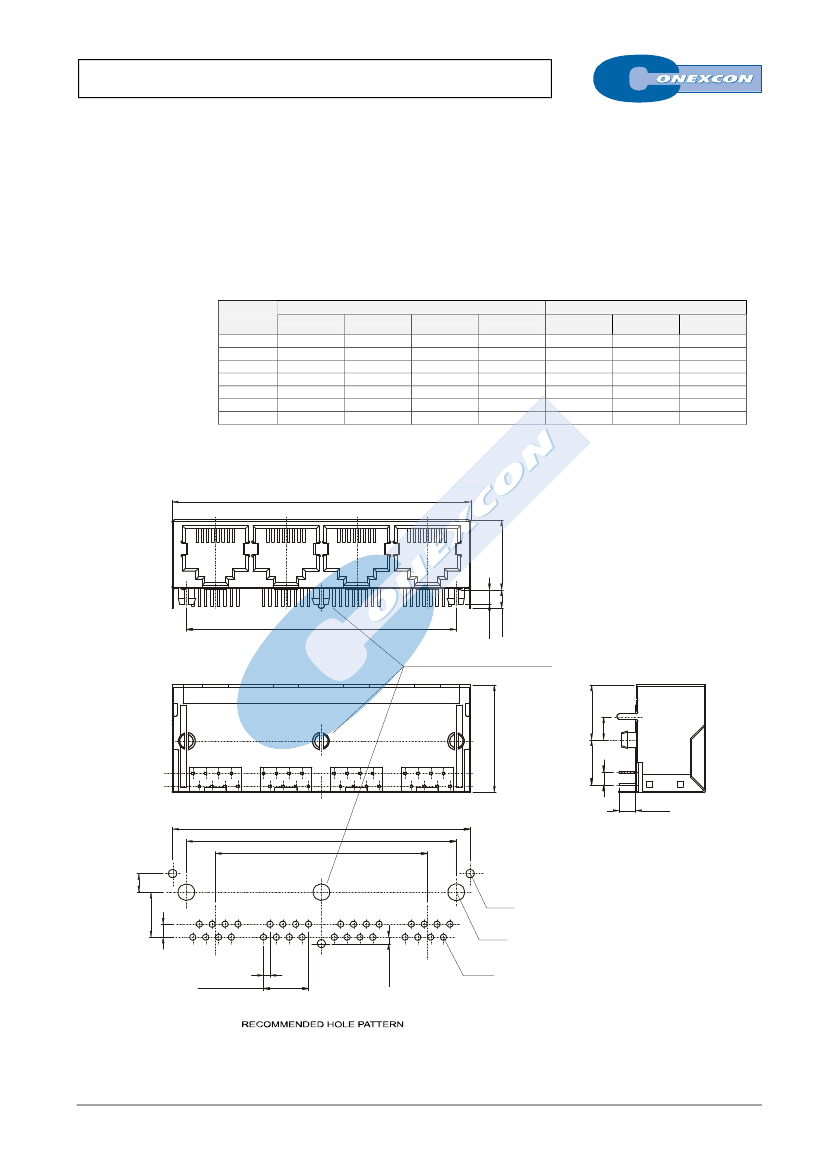

MULTI-PORT SIDE ENTRY PCB JACK FCC-68

7650 SERIES.

For PCB Solder. Shielded RJ45

Features



Available in 8/8 circuits

Available in 2, 4, 5, 6, 8, 10 and 12 Ports

Insulator Material: Glass filled polyester UL 94V-0

Contacts: Golden phosphor bronze of 0.35mm

Different plating options are available







Shielded Material: Bronze with nickel plated

Gold plating over nickel in Contact Area

Tin plating over nickel in Solder Area

Mates with FCC-68 modular plugs

With fixing post according to versions

Ordering and Dimensional Information

Dimensional Information

Part Number

Flanged

Flangeless

D=3.68mm

D=4.57mm

7650 –

T023

7650 –

T022

7650 –

T043

7650 –

T053

7650 –

T063

7650 –

T083

7650 –

T103

7650 –

T123

7650 –

T042

7650 –

T052

7650 –

T062

7650 –

T082

7650 –

T102

7650 –

T122

PORTS

2

4

5

6

8

10

12

Dimensions

Flanged

D=4.57mm

7650 –

T024

7650 –

T044

7650 –

T054

7650 –

T064

7650 –

T084

7650 –

T104

7650 –

T124

A

31.12 (1.226)

59.03 (2.325)

73.03 (2.876)

87.00 (3.426)

114.94 (4.526)

142.88 (5.626)

170.82 (6.726)

B

25.40 (1.000)

53.34 (2.100)

67.31 (2.650)

81.28 (3.200)

109.22 (4.300)

137.16 (5.400)

165.10 (6.500)

C

30.87 (1.216)

58.81 (2.316)

72.78 (2.866)

86.75 (3.416)

114.69 (4.516)

142.63 (5.616)

170.57 (6.716)

Flangeless

D=3.68mm

7650 –

T021

7650 –

T041

7650 –

T051

7650 –

T061

7650 –

T081

7650 –

T101

7650 –

T121

T = Contact Plating

A

B

In versions of 8, 10 and 12 Ports

2.85

3.65

13.80



T =

4.

6µ” gold over 50µ” nickel

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

T =

7.

50µ” gold over 50µ” nickel

10.89

21.27

8.89

2.54

D

3.20

REF

C

B

13.97 x 3=41.91

D

8.89

2.54

ø 1.60

ø 3.25

1.27*7=8.89

FULL LINE CATALOGUE

1.27

ø 0.90

I-XX
