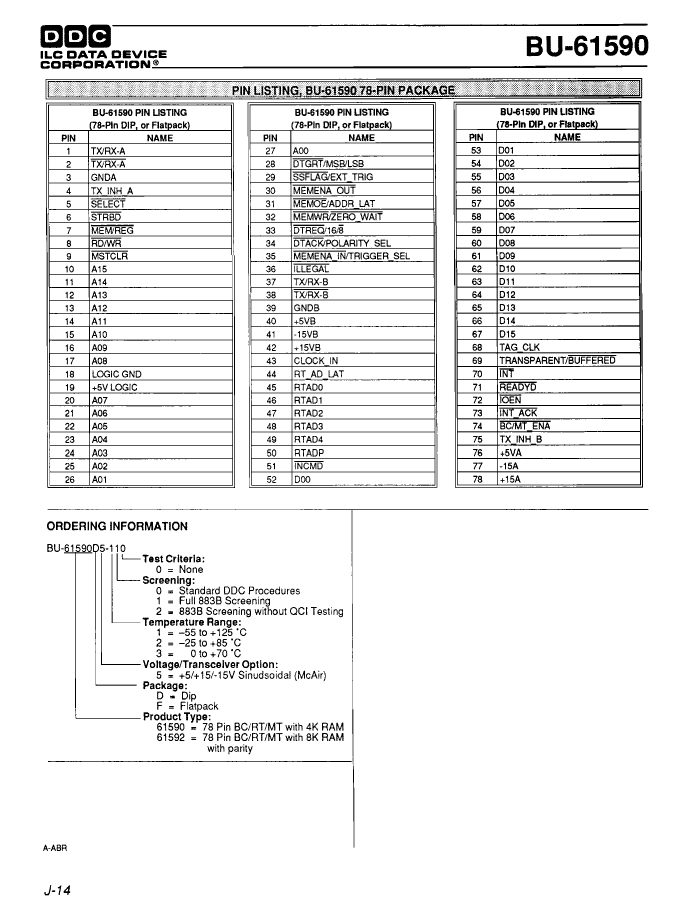

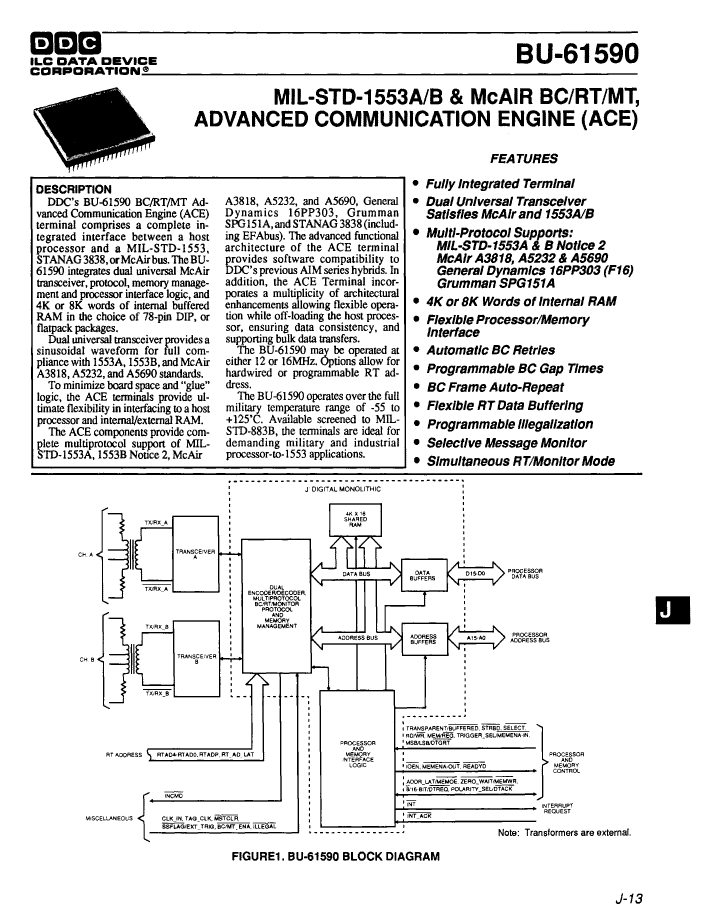

BU-61592F5-120: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDFP78, FP-78; CategoryThe embedded processor and controller Microcontrollers and processors; File Size99KB，2 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

BU-61592F5-120 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDFP78, FP-78

BU-61592F5-120 Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	DFP
package instruction	FP-78
Contacts	78
Reach Compliance Code	unknown
Other features	ADDITIONAL POWER SUPPLY +/-15V
Address bus width	16
boundary scan	NO
maximum clock frequency	16 MHz
letter of agreement	MIL-STD-1553A; MIL-STD-1553B
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	R-CDFP-F78
low power mode	YES
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	78
On-chip data RAM width	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
RAM (number of words)	4096
Maximum slew rate	190 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1

Preview

Download Datasheet

View All

BU-61592F5-120 Related Products

	BU-61592F5-120	BU-61592F5-110	BU-61592D5-100	BU-61592D5-110	BU-61592D5-120	BU-61592F5-100
Description	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDFP78, FP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDFP78, FP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDIP78, DIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDIP78, DIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDIP78, DIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CDFP78, FP-78
Parts packaging code	DFP	DFP	DIP	DIP	DIP	DFP
package instruction	FP-78	FP-78	QIP,	QIP,	QIP,	FP-78
Contacts	78	78	78	78	78	78
Reach Compliance Code	unknown	unknown	compliant	compliant	compliant	unknown
Other features	ADDITIONAL POWER SUPPLY +/-15V	ADDITIONAL POWER SUPPLY +/-15V	ADDITIONAL POWER SUPPLY +/-15V	ADDITIONAL POWER SUPPLY +/-15V	ADDITIONAL POWER SUPPLY +/-15V	ADDITIONAL POWER SUPPLY +/-15V
Address bus width	16	16	16	16	16	16
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
letter of agreement	MIL-STD-1553A; MIL-STD-1553B	MIL-STD-1553A; MIL-STD-1553B	MIL-STD-1553A; MIL-STD-1553B	MIL-STD-1553A; MIL-STD-1553B	MIL-STD-1553A; MIL-STD-1553B	MIL-STD-1553A; MIL-STD-1553B
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	16	16	16	16	16	16
JESD-30 code	R-CDFP-F78	R-CDFP-F78	R-CQIP-P78	R-CQIP-P78	R-CQIP-P78	R-CDFP-F78
low power mode	YES	YES	YES	YES	YES	YES
Number of serial I/Os	2	2	2	2	2	2
Number of terminals	78	78	78	78	78	78
On-chip data RAM width	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DFP	QIP	QIP	QIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	4096	4096	4096	8000	4096	4096
Maximum slew rate	190 mA	190 mA	190 mA	190 mA	190 mA	190 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	PIN/PEG	PIN/PEG	PIN/PEG	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Maker	Data Device Corporation	Data Device Corporation	Data Device Corporation	-	Data Device Corporation	Data Device Corporation
Base Number Matches	1	1	1	1	-	-
