Product Specifications
4196914/10 | 5504M BLUE CPK
Product Classification
Portfolio
Brand
Product Type
Regional Availability
Uniprise®
Ultra II®
Twisted pair cable
North America
Ultra II® 5504M ETL Verified Category 5e U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length,
CommPak

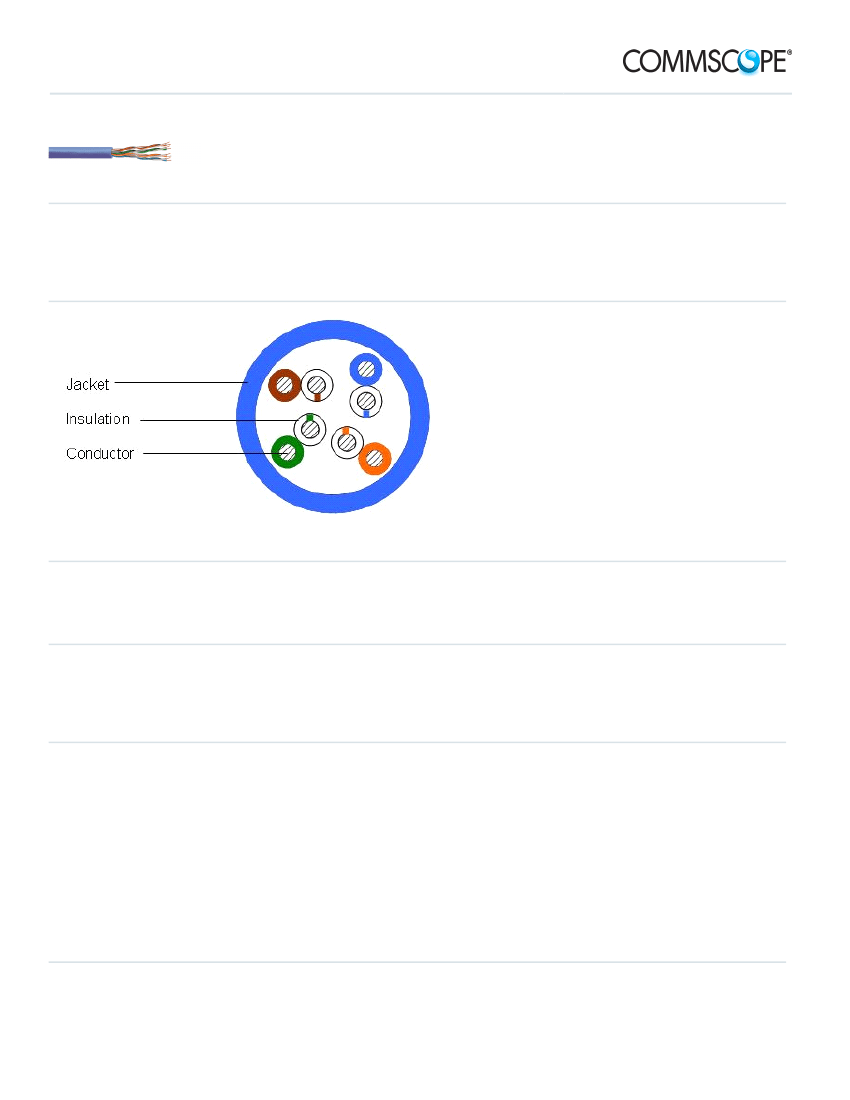

Cross Section Drawing
Construction Materials
Jacket Material
Conductor Material
Insulation Material
PVC
Bare copper
FEP
|
Polyolefin
Dimensions
Cable Length
Cable Weight
Diameter Over Jacket
Jacket Thickness
305 m
|
1000 ft
|
|
0.193 in
0.019 in
22.33 lb/kft
4.902 mm
0.483 mm
Electrical Specifications
ANSI/TIA Category
Characteristic Impedance
dc Resistance Unbalance, maximum
dc Resistance, maximum
Delay Skew, maximum
Mutual Capacitance
Operating Frequency, maximum
Transmission Standards
Safety Voltage Rating
Dielectric Strength, minimum
Note
5e
100 ohm
5%
9.38 ohms/100 m
15 ns
4.6 nF/100 m @ 1 kHz
350 MHz
ANSI/TIA-568-C.2
300 V
1500 Vac
|
2500 Vdc
All electrical transmission tests include swept frequency measurements
|
CENELEC EN 50288-3-1
|
ISO/IEC 11801 Class D
Nominal Velocity of Propagation (NVP) 72 %
Environmental Specifications
Environmental Space
Smoke Test Method
Flame Test Method
Plenum
CMP
CMP
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 19,
2017
page 1 of 3
January 11, 2018
Product Specifications
4196914/10 | 5504M BLUE CPK
Installation Temperature
Operating Temperature
0 °C to +60 °C (+32 °F to +140 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type
Packaging Type
Pairs, quantity
Cable Component Type
Jacket Color
Product Number
Brand
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
U/UTP (unshielded)
CommPak® box
4
Horizontal
Blue
5504M
Ultra II®
24 AWG
Solid
8
| Uniprise®
Mechanical Specifications
Pulling Tension, maximum
11 kg
|
25 lb
Regulatory Compliance/Certifications
Agency
ISO 9001:2008
Classification
Designed, manufactured and/or distributed under this quality management system
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 19,
2017
page 2 of 3
January 11, 2018
Product Specifications
4196914/10 | 5504M BLUE CPK
Electrical Performance
CS
Std
Typ
IL
NEXT
ACR
PSNEXT
PSACR
ACRF
PSACRF
RL
CommScope
Refers to the standard value listed under Transmission Standards in the Electrical Specifications above
Typical
Insertion Loss (dB/100m)
Near End Crosstalk (dB/100m)
Attenuation to Crosstalk Ratio (dB/100m)
Power Sum Near End Crosstalk (db/100m)
Power Sum Attenuation to Crosstalk Ratio (dB/100m)
Attenuation to Crosstalk Ratio - Far End (dB/100m)
Power Sum Attenuation to Crosstalk Ratio – Far End (dB/100m)
Return Loss (dB)
Freq.
MHz
1
4
8
10
16
20
25
IL
CS
2.0
3.9
5.6
6.2
7.9
8.9
Std
2.0
4.1
5.8
6.5
8.2
9.3
Typ
1.8
3.7
5.3
5.9
7.6
8.5
9.5
CS
NEXT
Std
Typ
CS
68.3
57.3
51.2
49.1
44.3
41.9
39.3
36.6
27.1
19.3
10.7
4.9
-0.7
-5.8
ACR
Std
Typ
CS
PSNEXT
Std
Typ
CS
66.3
55.3
49.2
47.1
42.3
39.9
37.3
34.6
25.1
17.3
8.7
2.9
-2.7
-7.8
PSACR
Std
Typ
CS
ACRF
Std
Typ
CS
PSACRF
Std
Typ
CS
RL
Std
Typ
70.3 65.3 85.0
61.3 56.3 75.9
56.8 51.8 70.8
55.3 50.3 69.7
52.2 47.2 66.3
50.8 45.8 64.8
49.3 44.3 63.3
63.3 83.1 68.3 62.3 82.6
52.2 72.2 59.3 53.3 73.4
46.0 65.6 54.8 48.8 68.5
43.8 63.8 53.3 47.3 67.4
39.0 58.7 50.2 44.2 64.0
36.5 56.3 48.8 42.8 62.4
33.9 53.8 47.3 41.3 61.0
31.2 51.2 45.9 39.9 59.5
21.4 42.0 41.4 35.4 55.1
13.3 34.9 38.3 32.3 52.1
26.4 35.4
20.4 33.8
15.4 32.3
10.5 31.1
5.7
30.1
49.0
46.6
45.1
43.5
60.3 80.8 67.8 63.8 79.8 65.8 60.8 78.0 20.0 20.0 34.8
49.2 69.7 55.8 51.8 68.1 53.8 48.8 66.3 23.3 23.0 35.1
43.0 63.3 49.7 45.7 62.2 47.7 42.7 60.5 25.0 24.5 35.9
40.8 61.5 47.8 43.8 60.3 45.8 40.8 58.5 25.5 25.0 36.8
36.0 56.4 43.7 39.7 56.3 41.7 36.7 54.5 25.5 25.0 37.9
33.5 53.9 41.8 37.8 54.4 39.8 34.8 52.5 25.5 25.0 37.6
30.9 51.5 39.8 35.8 52.5 37.8 32.8 50.6 24.8 24.3 37.9
28.2 48.9 37.9 33.9 50.5 35.9 30.9 48.6 24.1 23.6 37.7
18.4 39.7 31.9 27.9 44.4 29.9 24.9 42.5 22.0 21.5 33.5
10.3 32.5 27.8 23.8 40.4 25.8 20.8 38.4 20.6 20.1 31.0
24.1 24.0
18.2 21.8
13.1 19.8
8.2
3.5
18.3
16.9
36.7 22.0
34.2 19.8
32.0 17.8
30.1 16.3
28.4 14.9
34.7 19.3
32.2 18.5
30.0 17.8
28.2 17.3
26.5 16.8
28.9
28.6
28.0
28.1
27.4
10.0 10.4
31.25 11.3 11.7 10.7 47.9 42.9 61.8
62.5
100
155
200
250
300
350
16.3 17.0 15.3 43.4 38.4 57.3
21.0 22.0 19.6 40.3 35.3 54.5
26.8
30.9
35.0
38.9
42.6
24.8 37.4
28.4 35.8
32.0 34.3
35.3 33.1
38.4 32.1
51.2
48.9
47.4
45.8
44.1 -10.4
41.9 -12.4
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 19,
2017
page 3 of 3
January 11, 2018
