B60-010-020-IIBAA-B datasheet, PDF

Datasheet> All Categories > The connector> The connector> B60-010-020-IIBAA-B

B60-010-020-IIBAA-B: DescriptionTelecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Plug,; CategoryThe connector The connector; File Size127KB，4 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric Compare View All

B60-010-020-IIBAA-B Overview

Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Plug,

B60-010-020-IIBAA-B Parametric

Parameter Name	Attribute value
Maker	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown
Other features	SHIELDED
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CAM-B60
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

MITSUMI

Rectangular Connectors

IAM-B59 · D54, CAM-B60 Series

Connectors

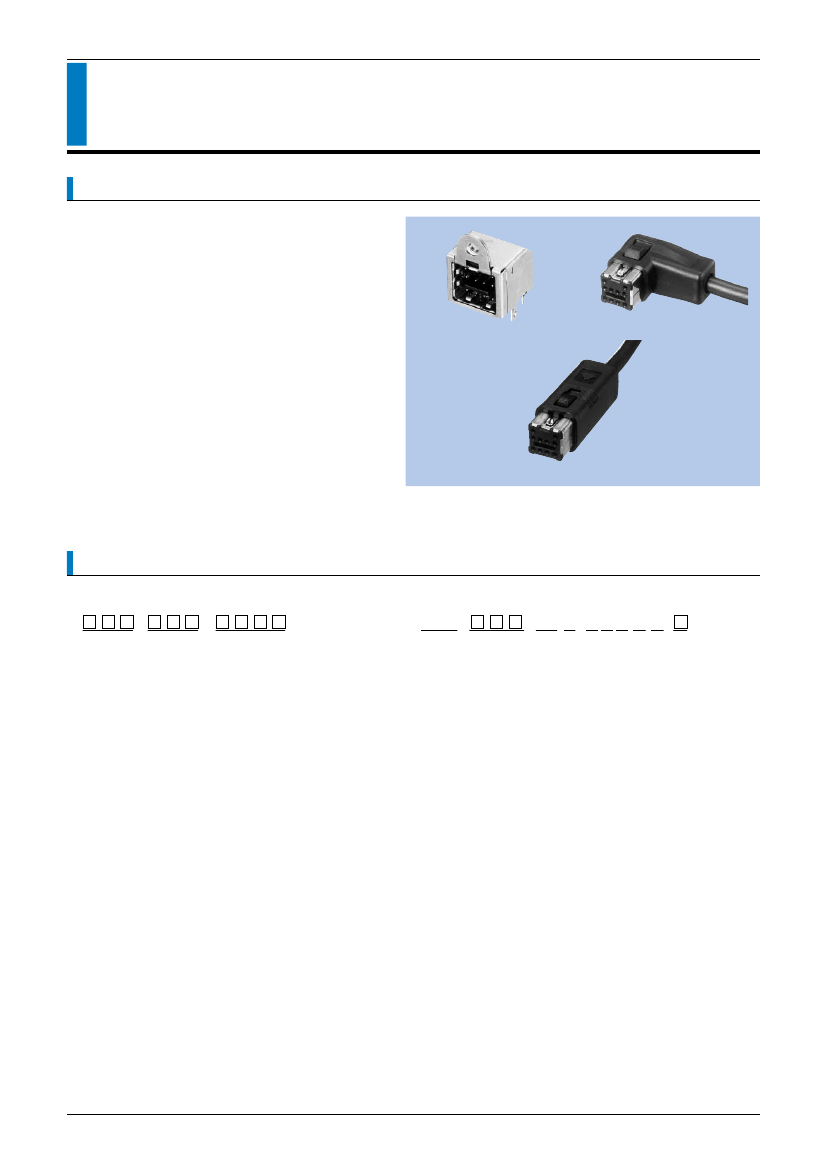

FEATURES

1. These are external interface connectors for 8,

10, and 12 pins. IAM-B59 is a cable assembly

straight socket. IAM-D54 is L socket (left out).

CAM-B60 is an angle plug.

2. In addition to signal terminals, two pins power

terminals are provided.

3. Provided with a key to prevent insertion in

sockets with a different terminal count.

4. A lock device ensures reliable interfitting.

IAM-D54

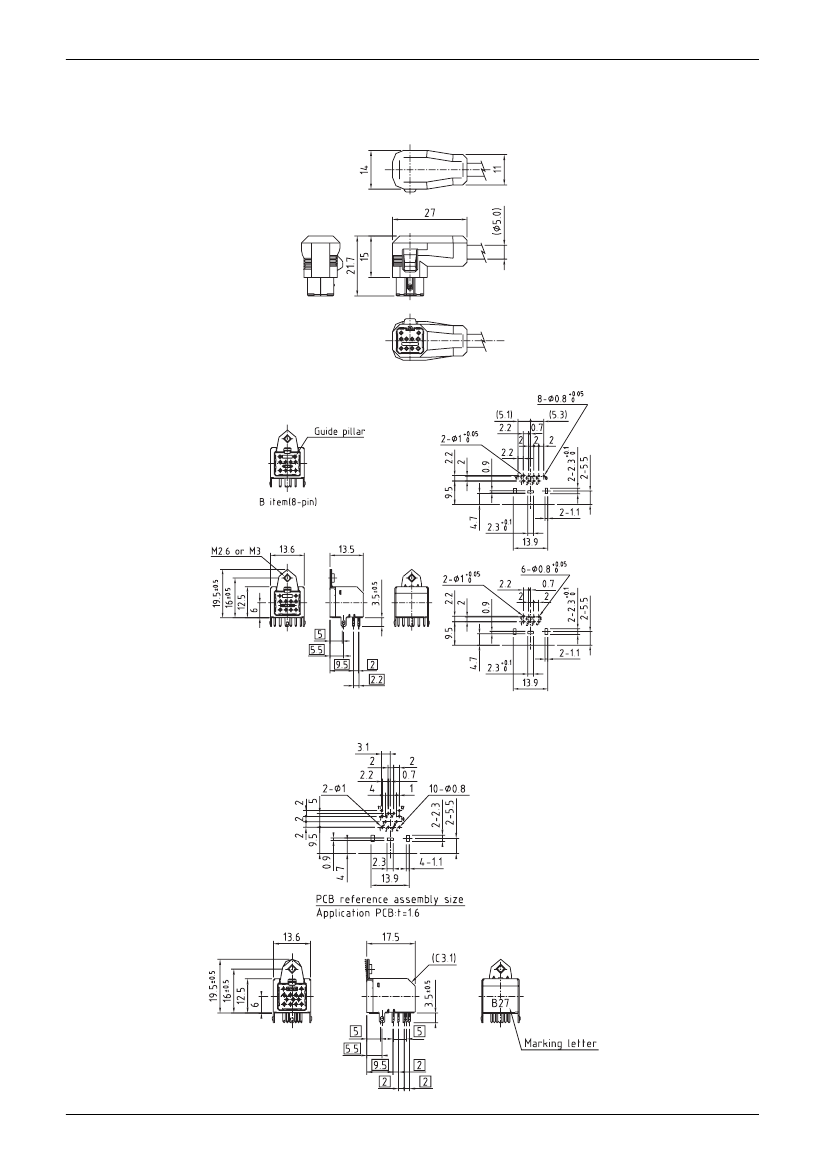

CAM-B60

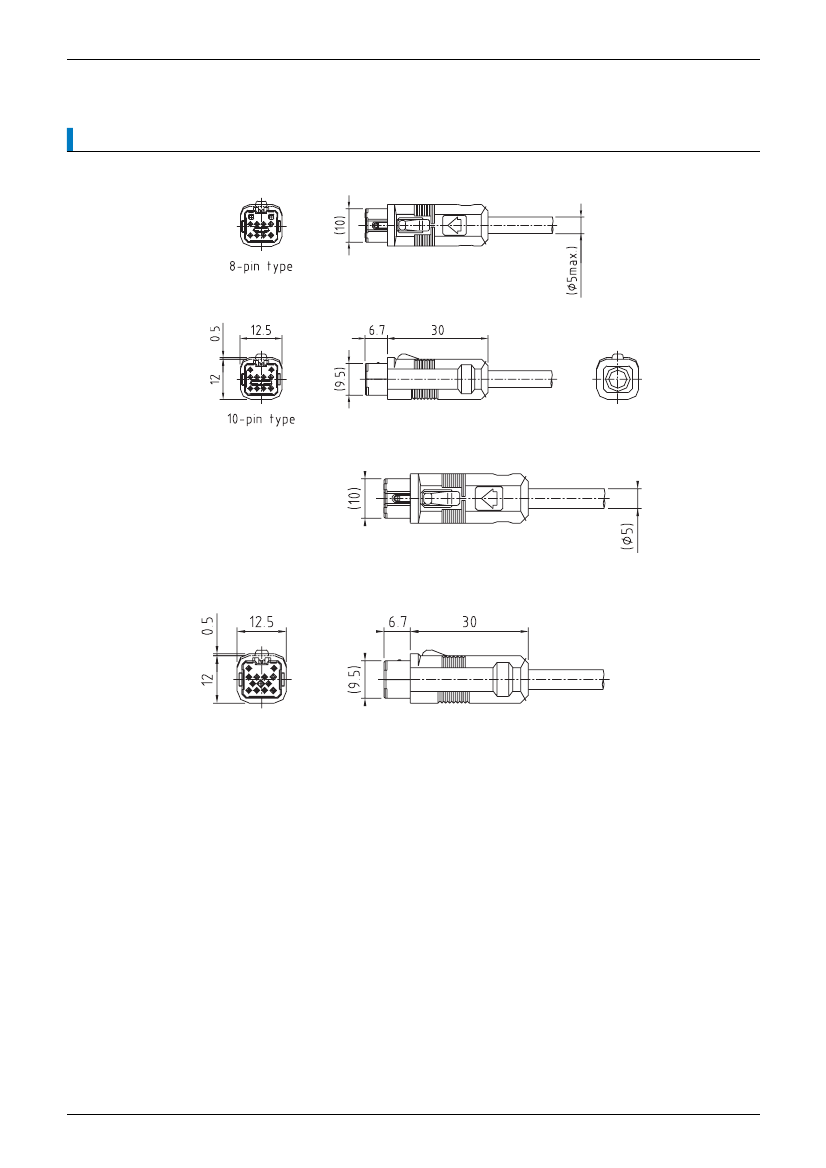

IAM-B59

HOW TO ORDER

1. IAM-B59, D54 Series

4. CAM-B60 Series

B60-

- 0 2 0 - I I B A A-

5 6 7 8 9 10

1 Series No. (B59 : Straight type, D54 : Left out)

2 No. of contacts (008 : 8pins, 010 : 10pins, 012 : 12pins)

3 Product Specifications

Series No. (B60)

No. of contacts (008 : 8pins, 010 : 10pins, 012 : 12pins)

Housing material (02 : PBT)

UL grade (0 : UL94V-0)

Contact plating (I : Tin reflow plating)

Contact plating thickness (I : 1.0µm)

Contact tail style (B : Angle)

Accessory for Connector outside (A : None)

Accessory for Connector inside (A : None)

10 Shield case flange (No symbol : with M2.6,

I : without, B : M3)

• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.

• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.

B60-010-020-IIBAA-B Related Products

	B60-010-020-IIBAA-B	B60-008-020-IIBAA-B	B60-008-020-IIBAA	B60-010-020-IIBAA-I	B60-010-020-IIBAA	B60-008-020-IIBAA-I	B60-012-020-IIBAA-B	B60-012-020-IIBAA-I	B60-012-020-IIBAA
Description	Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Plug,	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Plug,
Maker	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	CAM-B60	CAM-B60	CAM-B60	CAM-B60	CAM-B60	CAM-B60	CAM-B60	CAM-B60	CAM-B60
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD AND PANEL	BOARD	BOARD AND PANEL	BOARD	BOARD AND PANEL	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	8	8	10	10	8	12	12	12
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	-	-	-
