BG07062A0058006500740NB: DescriptionBoard Connector, 62 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size166KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BG07062A0058006500740NB Overview

Board Connector, 62 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BG07062A0058006500740NB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
body width	0.2 inch
subject depth	0.256 inch
body length	3.1 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	BG070
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	62
Base Number Matches	1

Preview

Download Datasheet

View All

H

2.54

Ø1

.80

1.27

Number of

Contacts

4

Dimensions

A

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

B

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

101.60

8.05

6.00

E

5.00

W+1.0

6

8

10

12

14

G

5.08

2.54

B±0.38

A±0.25

F

1.02

2.00

16

18

20

22

Recommended P.C.B Layout

2° Max. Sway & Toe

(Either Direction At The top )

Solder Area

6.00

2.54

3.50

Specifications

规格

Electrical

电气

Current Rating

电流额定值

: 3 Amp

Insulator Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstanding

耐电压

: AC 600 V

Contact Resistance

接触电阻值

: 20mΩ max.

Material

物料

Contact Material

端子物料

: Copper Alloy

Insulator Material

绝缘½物料

:

Standard

标准物料

: Polyamide, Nylon 6T, UL 94V-0

Options

可选物料

: Polyester, LCP, UL 94V-0

Mechanical & Environmental

机械

&

环境

Operating Temperature

工½温度

: -40°C to +105°C

Soldering Process

可焊性

:

Nylon 6T (Standard

标准物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

LCP (Option

可选物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(Subject to pin length

在端子长度适合的条件下

):

BG120

BG140

BG150

BG151

BG160

BG165

BG170

BG175

BG180

BG185

BG190

BG195

BG200

BG210

24

26

28

30

32

34

36

38

40

42

44

46

48

50

52

54

56

58

60

62

64

66

68

70

72

74

76

78

80

2.54 Typ.

Dim.E

0.64 sq. pin

2.54

E

D±0.2

C±0.2

D

2.54

0.15

Optional Locating Pegs

2.54

Ø1.58

W±0.2

C

Ordering Grid

BG070

No. of Contacts

04 to 80

XX X

X

XXXX

X

Request Samples

and Quotation

B

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Locating Peg

0 = Without

1 = With

Packing Options

B = Tape & Reel with Cap

(Standard)

D = Tube

(Standard where

total height exceeds 25mm)

E = Tube with Cap

Insulator Material

N = Nylon 6T

(Standard)

L = LCP

Dimension W

(1/100mm) (Footprint Width)

0740 = 7.40mm

(Standard)

Or specify custom foodprint width

eg. 0250 = 2.50mm

Dimension D

(1/100mm) (Stack Height)

0650 = 6.50mm

(Standard)

Or specify custom stack height

eg. 0250 = 2.50mm

0.96

Part Number

Product Description

BG070

Drawing Date

A

Dimension C

(1/100mm) (Post Height)

0580 = 5.80mm

(Standard)

Or specify custom post height

eg. 0250 = 2.50mm

1st November 2006

By

Detail

Revision

Date

AJO

Solder Temp

Information

C1

06/02/15

Length

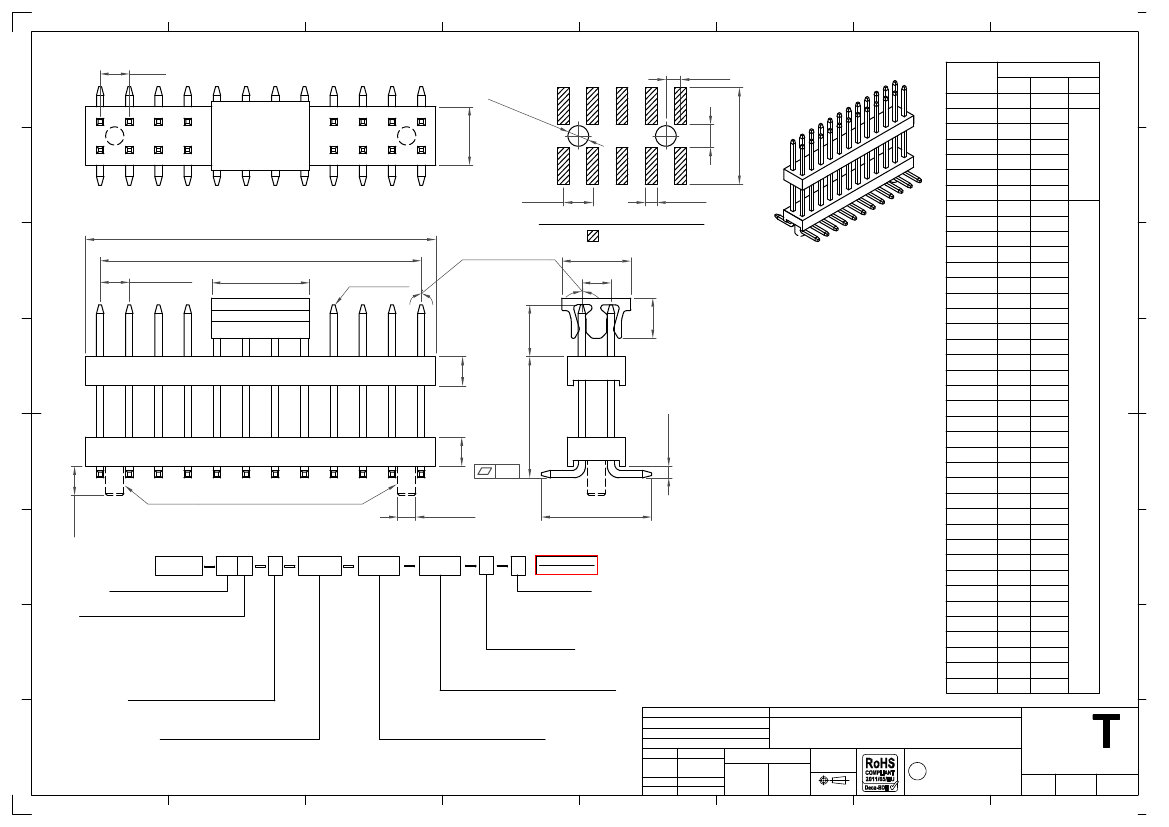

2.54mm Pitch Elevated Header

Dual Row, Surface Mount, Vertical

Tolerances

(Except as Noted)

Angle

1

2

3

4

5

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX° ± 1°

X.XX ± 0.15

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

C

7

3rd Angle Projection

This drawing is confidential and

copyright of Global Connector

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

GC

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1

6

8

BG07062A0058006500740NB Related Products

	BG07062A0058006500740NB	BG07056A1058006500740NB	BG07064A0058006500740NB	BG07036A0058006500740NB	BG07040A0058006500740NB
Description	Board Connector, 62 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,	Board Connector, 56 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,	Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,	Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
body width	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.256 inch	0.256 inch	0.256 inch	0.256 inch	0.256 inch
body length	3.1 inch	2.8 inch	3.2 inch	1.8 inch	2 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	BG070	BG070	BG070	BG070	BG070
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.699 mm	4.699 mm	4.699 mm	4.699 mm	4.699 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	62	56	64	36	40
