54457-0559 datasheet, PDF - EEWORLD Datasheet

54457-0559: DescriptionBoard Connector, 55 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, White Insulator, Receptacle,; CategoryThe connector The connector; File Size143KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

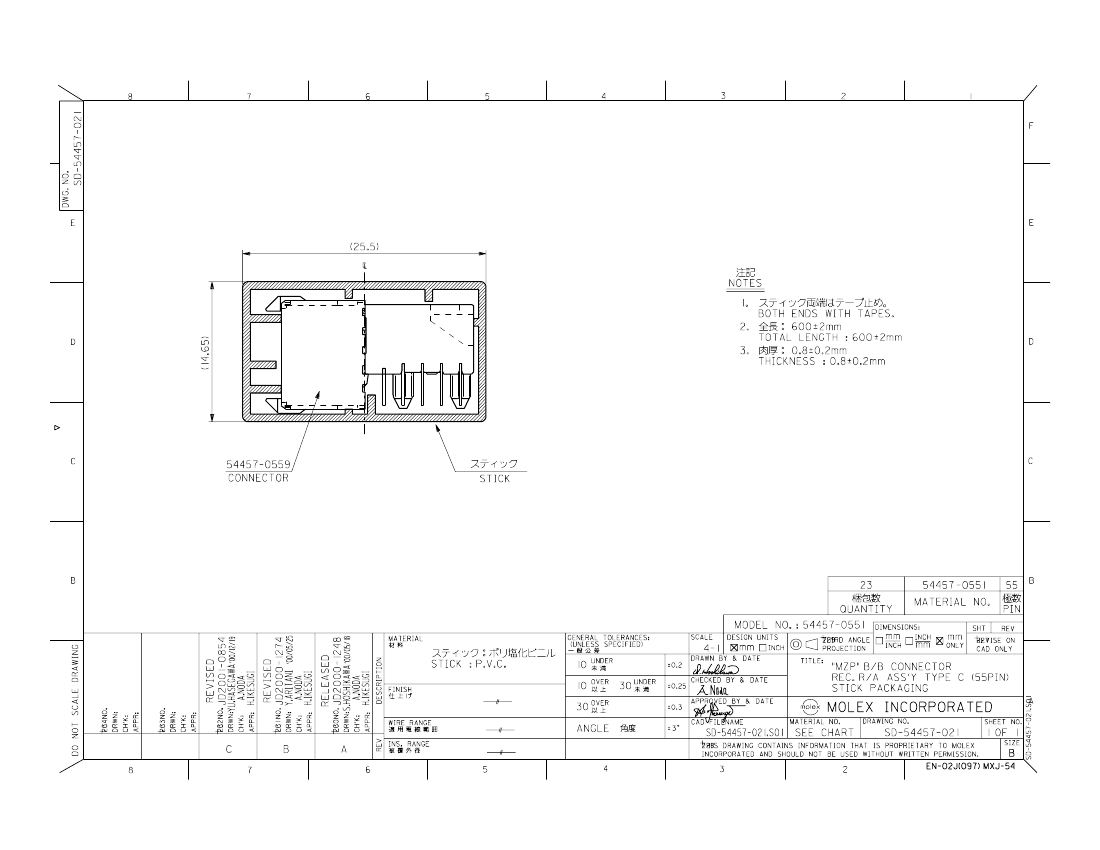

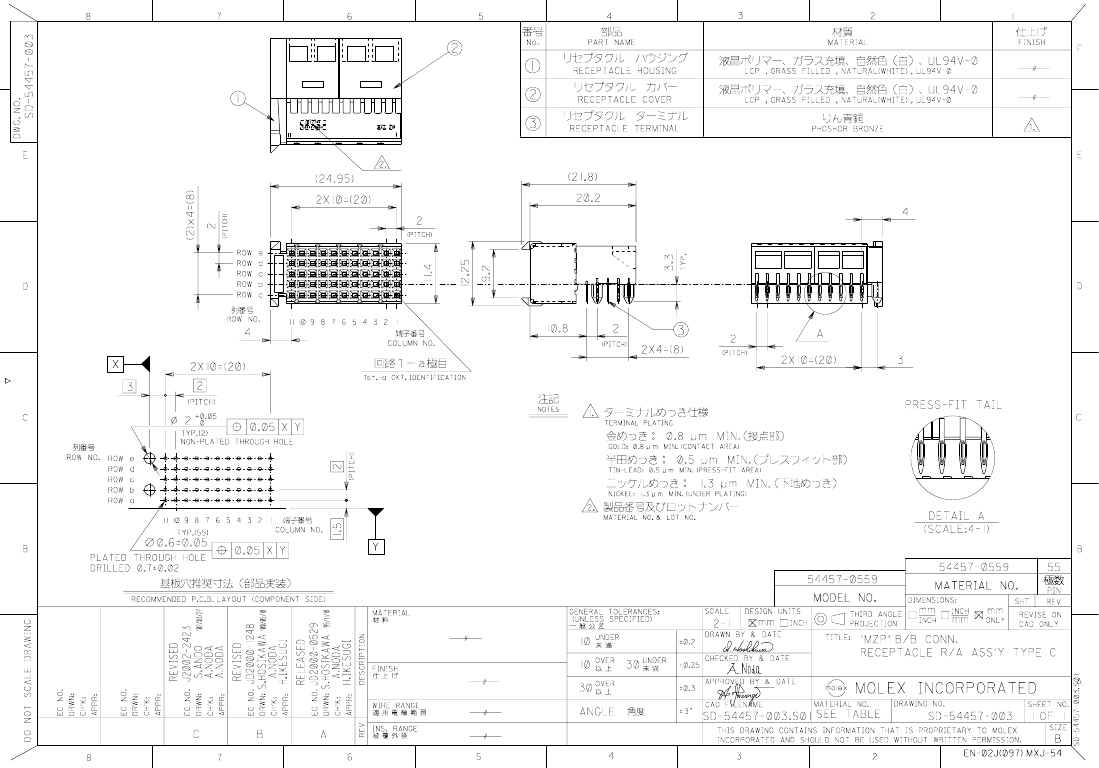

54457-0559 Overview

Board Connector, 55 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, White Insulator, Receptacle,

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MZP
Board mount options	PEG
body width	0.482 inch
subject depth	0.858 inch
body length	0.982 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	125 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	10000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	54457
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	55
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

	54457-0559	54457-0551
Description	Board Connector, 55 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, White Insulator, Receptacle,	Board Connector, 55 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle,
Reach Compliance Code	unknown	compliant
Other features	MZP	MZP
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	54457	54457
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	55	55
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
