PD - 94008
IRFP250N
HEXFET
®
Power MOSFET
l
l
l
l
l
l
l
Advanced Process Technology
Dynamic dv/dt Rating
175°C Operating Temperature
Fast Switching
Fully Avalanche Rated
Ease of Paralleling
Simple Drive Requirements
D
V
DSS
= 200V
R
DS(on)
= 0.075Ω
G
S
I
D
= 30A
Description
Fifth Generation HEXFETs from International Rectifier utilize advanced processing
techniques to achieve extremely low on-resistance per silicon area. This benefit,
combined with the fast switching speed and ruggedized device design that
HEXFET Power MOSFETs are well known for, provides the designer with an
extremely efficient and reliable device for use in a wide variety of applications.
The TO-247 package is preferred for commercial-industrial applications where
higher power levels preclude the use of TO-220 devices. The TO-247 is similar
but superior to the earlier TO-218 package because of its isolated mounting hole.
TO-247AC
Absolute Maximum Ratings
Parameter
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
C
= 25°C
V
GS
E
AS
I
AR
E
AR
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Mounting torque, 6-32 or M3 srew
Max.
30
21
120
214
1.4
± 20
315
30
21
8.6
-55 to +175
300 (1.6mm from case )
10 lbf•in (1.1N•m)
Units
A
W
W/°C
V
mJ
A
mJ
V/ns
°C
Thermal Resistance
Parameter
R
θJC
R
θCS
R
θJA
Junction-to-Case
Case-to-Sink, Flat, Greased Surface
Junction-to-Ambient
Typ.
–––
0.24
–––
Max.
0.7
–––
40
Units
°C/W
www.irf.com
1
10/09/00
IRFP250N
Electrical Characteristics @ T
J
= 25°C (unless otherwise specified)
V
(BR)DSS
∆V
(BR)DSS
/∆T
J
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
Parameter
Drain-to-Source Breakdown Voltage
Breakdown Voltage Temp. Coefficient
Static Drain-to-Source On-Resistance
Gate Threshold Voltage
Forward Transconductance
Drain-to-Source Leakage Current
Gate-to-Source Forward Leakage
Gate-to-Source Reverse Leakage
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain ("Miller") Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Internal Drain Inductance
Internal Source Inductance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Min.
200
–––
–––
2.0
17
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
Typ.
–––
0.26
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
14
43
41
33
4.5
7.5
2159
315
83
Max. Units
Conditions
–––
V
V
GS
= 0V, I
D
= 250µA
––– V/°C Reference to 25°C, I
D
= 1mA
0.075
Ω
V
GS
= 10V, I
D
= 18A
4.0
V
V
DS
= V
GS
, I
D
= 250µA
–––
S
V
DS
= 50V, I
D
= 18A
25
V
DS
= 200V, V
GS
= 0V
µA
250
V
DS
= 160V, V
GS
= 0V, T
J
= 150°C
100
V
GS
= 20V
nA
-100
V
GS
= -20V
123
I
D
= 18A
21
nC V
DS
= 160V
57
V
GS
= 10V, See Fig. 6 and 13
–––
V
DD
= 100V
–––
I
D
= 18A
ns
–––
R
G
= 3.9Ω
–––
R
D
= 5.5Ω, See Fig. 10
D
Between lead,
–––
6mm (0.25in.)
nH
G
from package
–––
and center of die contact
S
–––
V
GS
= 0V
–––
pF
V
DS
= 25V
–––
ƒ = 1.0MHz, See Fig. 5
Source-Drain Ratings and Characteristics
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Notes:
Parameter
Continuous Source Current
(Body Diode)
Pulsed Source Current
(Body Diode)
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
Forward Turn-On Time
Min. Typ. Max. Units
Conditions
D
MOSFET symbol
––– ––– 30
showing the
A
G
integral reverse
––– ––– 120
S
p-n junction diode.
––– ––– 1.3
V
T
J
= 25°C, I
S
= 18A, V
GS
= 0V
––– 186 279
ns
T
J
= 25°C, I
F
= 18A
––– 1.3 2.0
µC
di/dt = 100A/µs
Intrinsic turn-on time is negligible (turn-on is dominated by L
S
+L
D
)
Repetitive rating; pulse width limited by
max. junction temperature. (See Fig. 11)
I
SD
≤
18A, di/dt
≤
374A/µs, V
DD
≤
V
(BR)DSS
,
T
J
≤
175°C
Pulse width
≤
300µs; duty cycle
≤
2%.
Starting T
J
= 25°C, L = 1.9mH
R
G
= 25Ω, I
AS
= 18A. (See Figure 12)
2
www.irf.com
IRFP250N
1000
I
D
, Drain-to-Source Current (A)
100
10
I
D
, Drain-to-Source Current (A)
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
TOP
1000
100
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
TOP
10
1
4.5V
4.5V
1
0.1
0.01
0.1
20µs PULSE WIDTH
T
J
= 25
°
C
1
10
100
0.1
0.1
20µs PULSE WIDTH
T
J
= 175
°
C
1
10
100
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

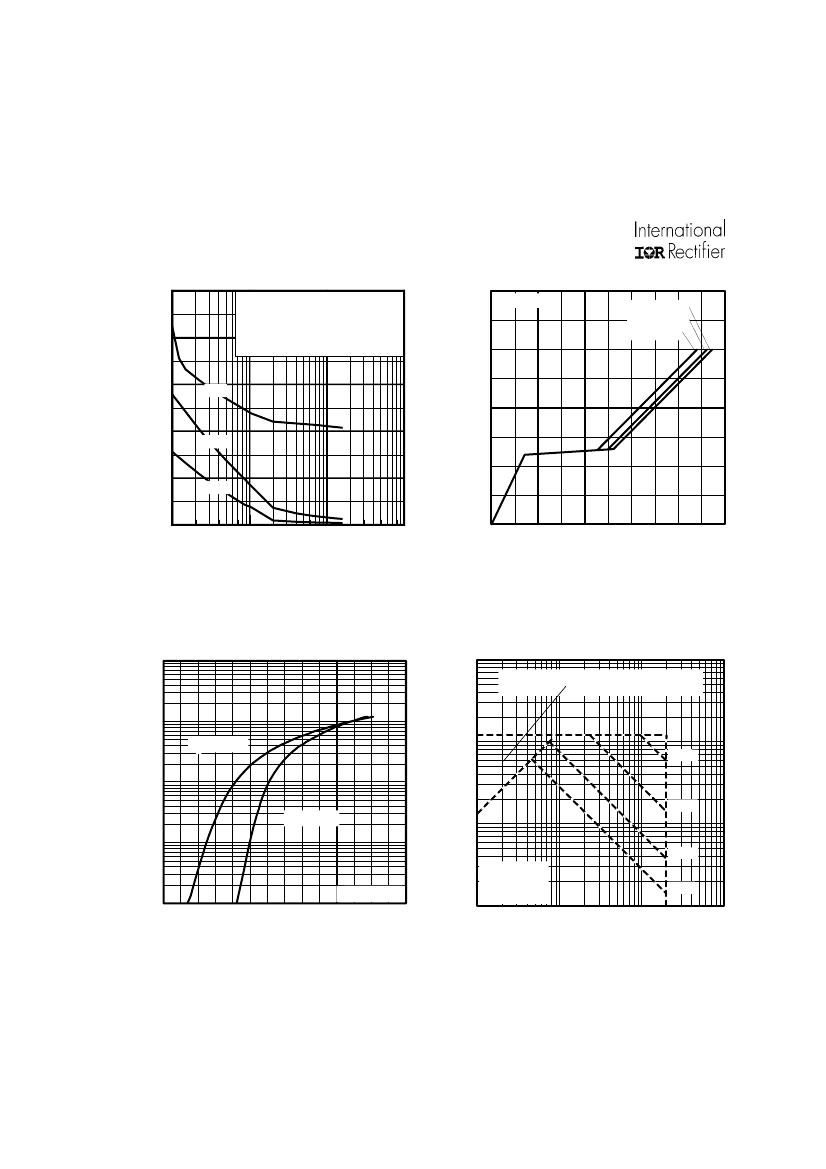

Fig 1.
Typical Output Characteristics
Fig 2.
Typical Output Characteristics
1000
R
DS(on)
, Drain-to-Source On Resistance
(Normalized)
3.5
3.0
2.5
2.0
1.5
1.0
0.5
I
D
= 30A
I
D
, Drain-to-Source Current (A)
100
T
J
= 175
°
C
10
T
J
= 25
°
C
1
0.1
4.0
V DS = 50V
20µs PULSE WIDTH
5.0
6.0
7.0
8.0
9.0
10.0
0.0
-60 -40 -20 0
V
GS
= 10V
20 40 60 80 100 120 140 160 180
V
GS
, Gate-to-Source Voltage (V)
T
J
, Junction Temperature(
°
C)
Fig 3.
Typical Transfer Characteristics
Fig 4.
Normalized On-Resistance
Vs. Temperature
www.irf.com
3
IRFP250N
5000
4000
Coss = Cds + Cgd
V
GS
, Gate-to-Source Voltage (V)
VGS = 0V, f = 1 MHZ
Ciss = Cgs + Cgd, Cds SHORTED
Crss = C
gd
16
I
D
=
18A
V
DS
= 160V
V
DS
= 100V
V
DS
= 40V
12
C, Capacitance(pF)
3000
Ciss
8
2000
Coss
1000
4
Crss
0
1
10
100
1000
0
0
20
40
60
80
100
VDS, Drain-to-Source Voltage (V)
Q
G
, Total Gate Charge (nC)
Fig 5.
Typical Capacitance Vs.
Drain-to-Source Voltage
1000
Fig 6.
Typical Gate Charge Vs.
Gate-to-Source Voltage
1000
I
SD
, Reverse Drain Current (A)
OPERATION IN THIS AREA LIMITED
BY R
DS(on)
100
T
J
= 175
°
C
10
I
D
, Drain Current (A)
100
10us
100us
10
1ms
T
J
= 25
°
C
1
0.1
0.2
V
GS
= 0 V
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1
1
T
C
= 25 °C
T
J
= 175 °C
Single Pulse
10
100
10ms
1000
V
SD
,Source-to-Drain Voltage (V)
V
DS
, Drain-to-Source Voltage (V)
Fig 7.
Typical Source-Drain Diode
Forward Voltage
4
Fig 8.
Maximum Safe Operating Area
www.irf.com
IRFP250N
R
D
35
35
V
DS
V
GS
D.U.T.
+
V
DD
30
30
R
G
I
D
, Drain Current (A)
I
D
, Drain Current (A)
25
25
20
20
15
15
10
10
5
5
0
0
25
25
50
50
75
75
100
100
125
125
150
150
°
175
175
-
10V
Pulse Width
≤ 1
µs
Duty Factor
≤ 0.1 %

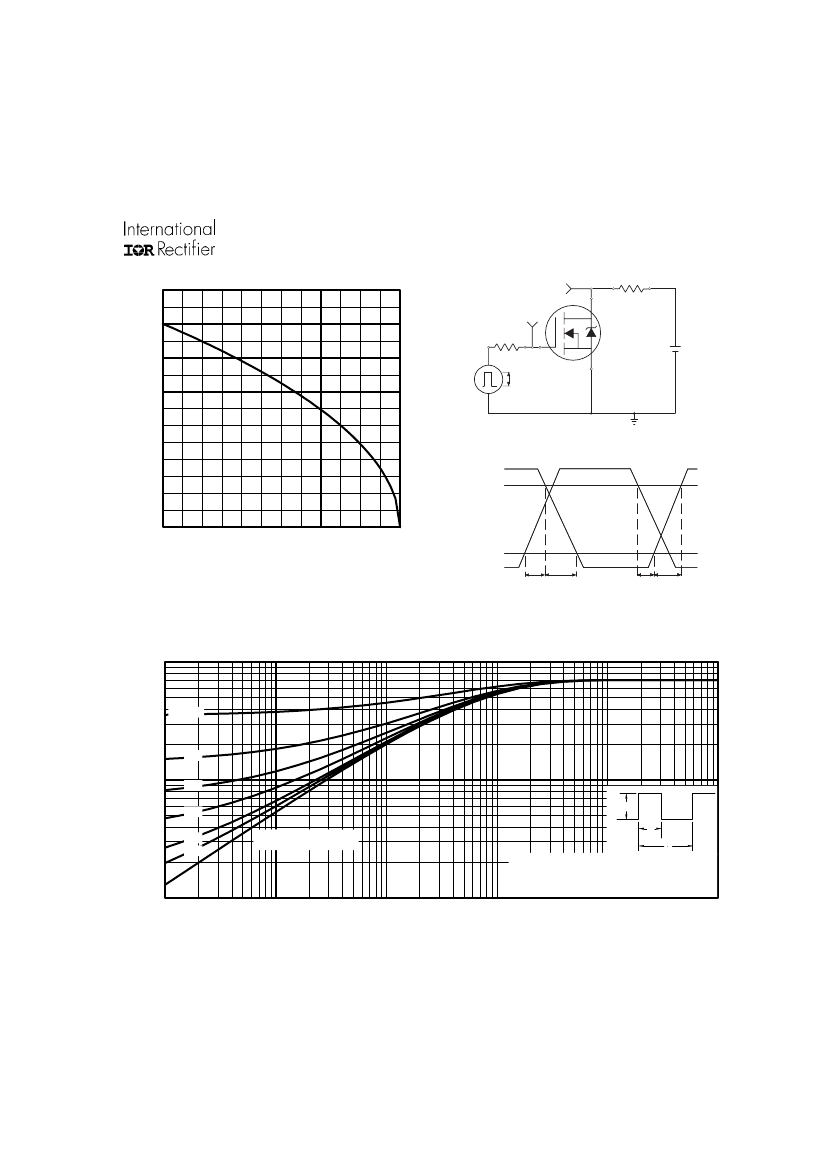

Fig 10a.
Switching Time Test Circuit
V
DS
90%
T
C
, Case Temperature ( C)
T
C
, Case Temperature ( ° C)
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Fig 9.
Maximum Drain Current Vs.
Case Temperature
1
Fig 10b.
Switching Time Waveforms
Thermal Response(Z
thJC
)
D = 0.50
0.20
0.1
0.10
0.05
0.02
0.01
SINGLE PULSE
(THERMAL RESPONSE)
P
DM
t
1
t
2
Notes:
1. Duty factor D = t
1
/ t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.0001
0.001
0.01
0.1
1
0.01
0.00001
t
1
, Rectangular Pulse Duration (sec)
Fig 11.
Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com
5
