BK/S-8101-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> BK/S-8101-1

BK/S-8101-1: DescriptionBarrier Strip Terminal Block, 1 Row(s), 1 Deck(s),; CategoryThe connector terminals; File Size66KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric Compare View All

BK/S-8101-1 Overview

Barrier Strip Terminal Block, 1 Row(s), 1 Deck(s),

BK/S-8101-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	4 weeks 2 days
Other features	THERMOPLASTIC
Fastening method	SCREW
Manufacturer's serial number	8100
Installation type	DIN RAIL
Number of layers	1
Rows	1
Number of channels	1
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

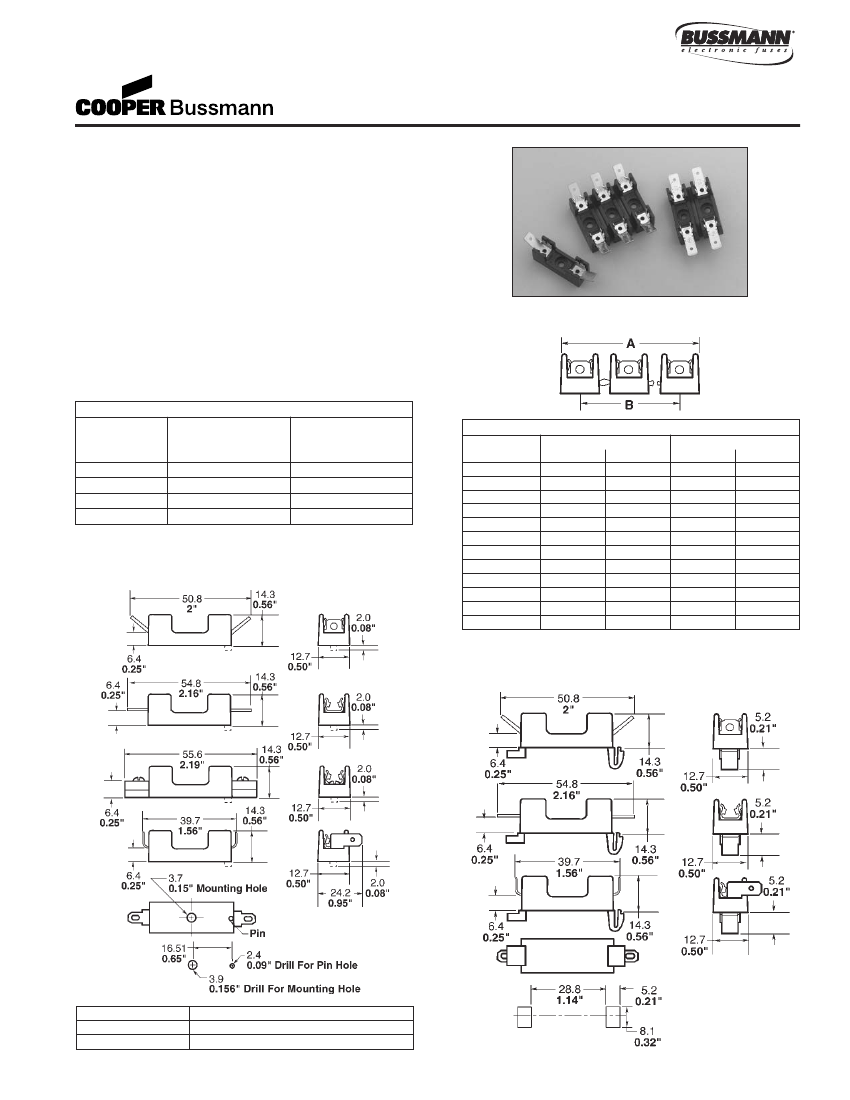

1/4" x 1-1/4" Fuseblocks

S-8000 Series

Description

• For 1/4" x 1-1/4" (6.3mm x 32mm) fuses

• Bolt-in and snap-in mounting available

• Tight cluster mounting

• All types of terminal configurations

• Clips made of spring-bronze

• Anti-rotational pin provided

• Flame retardant thermoplastic meets UL 94 VO

Environmental Data

• Temperature Rating (RTI): The mounting body for all

devices (except those with Suffix –1-SNP or –W-SNP),

has a temperature rating of 130°C. The mounting body

for all devices with Suffix –1-SNP has a temperature

rating of 110°C.

Multiple Pole

SPECIFICATIONS

Voltage

Rating

300V

Voltage

Rating

300V

Dimensions

No. of

Poles

Inches

1 1/8"

1 3/4"

2 3/8"

3 5/8"

4 1/4"

4 7/8"

5 1/2"

6 1/8"

6 3/4"

7 3/8"

5/8"

1 1/4"

1 7/8"

2 1/2"

3 1/8"

3 3/4"

4 3/8"

5 5/8"

6 1/4"

6 7/8"

Millimeters

28.6

15.9

44.4

31.8

60.3

47.6

76.2

63.5

92.1

79.4

108

95.2

123.8

111.1

139.7

127.0

155.6

142.9

171.4

158.8

187.3

174.6

S-8000

S-8100

S-8200

S-8300

Dimensions

S-8000 Single Pole Bolt-In Mounting Series

S-8000 Single Pole Snap-In Mounting Series

Component

Clip

Body

Material

Spring-Bronze, Bright Tin-Lead Plate

Thermoplastic
