54ACT11000FK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54ACT11000FK

54ACT11000FK: DescriptionNAND Gate, ACT Series, 4-Func, 2-Input, CMOS, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size230KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54ACT11000FK Overview

NAND Gate, ACT Series, 4-Func, 2-Input, CMOS, CQCC20, CERAMIC, LCC-20

54ACT11000FK Parametric

Parameter Name	Attribute value
package instruction	CERAMIC, LCC-20
Reach Compliance Code	unknown
Other features	CENTER PIN VCC AND GND
series	ACT
JESD-30 code	S-CQCC-N20
length	8.89 mm
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	9.5 ns
Maximum seat height	2.03 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54ACT11000, 74ACT11000

QUADRUPLE 2-INPUT POSITIVE-NAND GATES

SCAS002A – D2957, JUNE 1987 – REVISED APRIL 1993

•

Inputs Are TTL-Voltage Compatible

Flow-Through Architecture Optimizes

PCB Layout

Center-Pin V

and GND Configurations

Minimize High-Speed Switching Noise

EPIC

(Enhanced-Performance Implanted

CMOS) 1-

m Process

500-mA Typical Latch-Up Immunity at 125°C

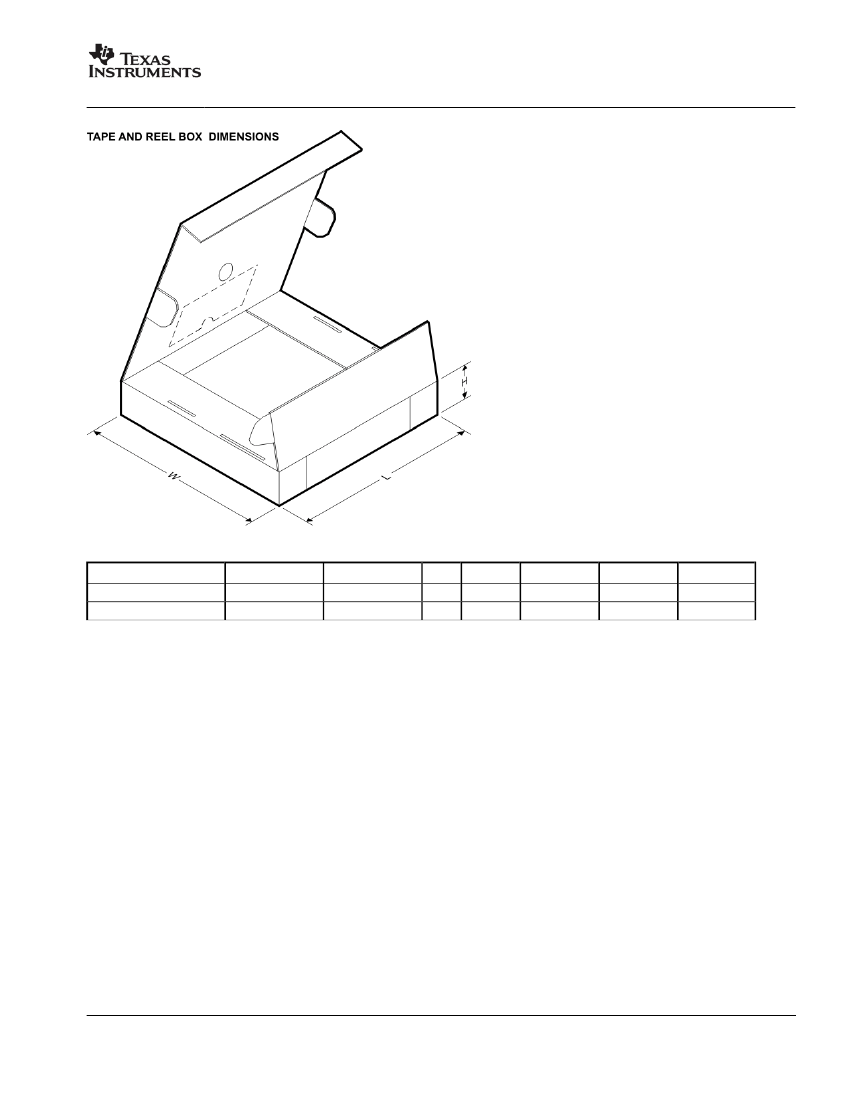

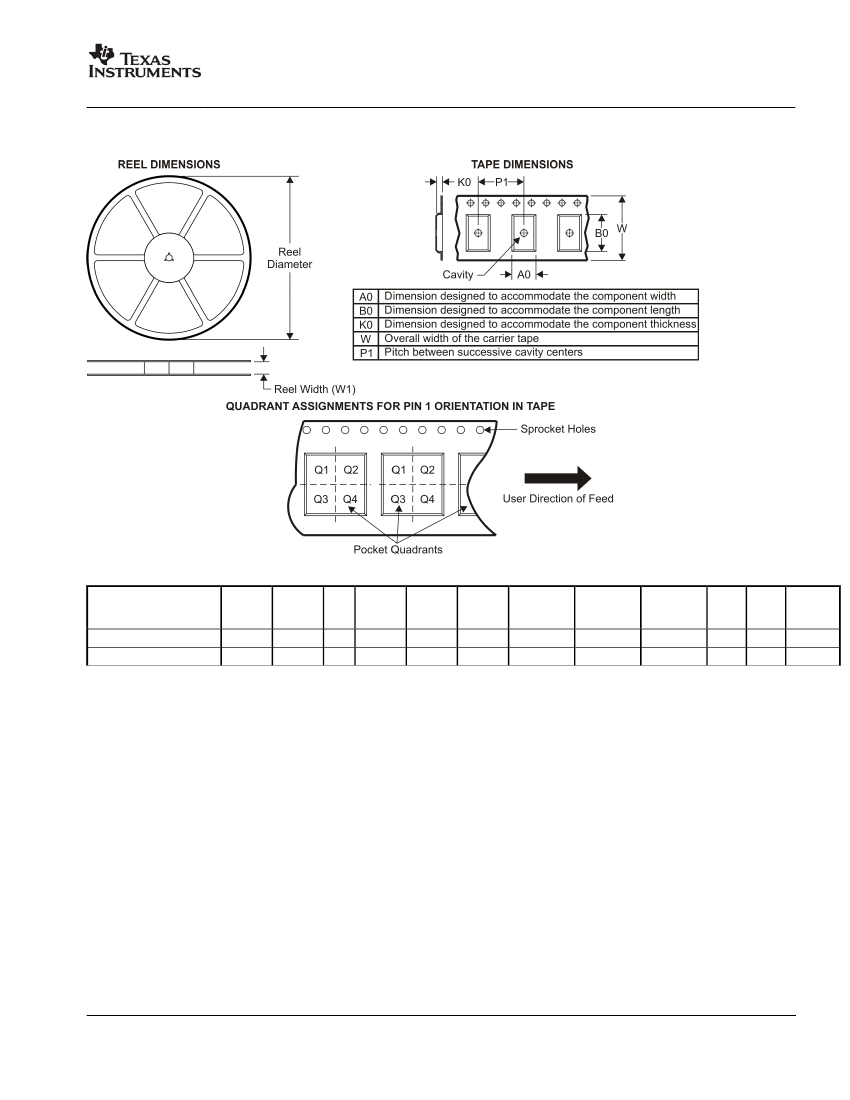

Package Options Include Plastic

Small-Outline Packages, Ceramic Chip

Carriers, and Standard Plastic and

Ceramic 300-mil DIPs

54ACT11000 . . . J PACKAGE

74ACT11000 . . . D OR N PACKAGE

(TOP VIEW)

GND

description

These devices contain four independent 2-input

NAND gates. They perform the Boolean functions

Y = A

B or Y = A + B in positive logic.

The 54ACT11000 is characterized for operation

over the full military temperature range of – 55°C

to 125°C. The 74ACT11000 is characterized for

operation from – 40°C to 85°C.

FUNCTION TABLE

(each gate)

INPUTS

OUTPUT

54ACT11000 . . . FK PACKAGE

(TOP VIEW)

VCC

3 2 1 20 19

9 10 11 12 13

VCC

NC – No internal connection

logic symbol

†

logic diagram (positive logic)

† This symbol is in accordance with ANSI/IEEE Std 91-1984

and IEC Publication 617-12.

Pin numbers shown are for the D, J, and N packages.

EPIC is a trademark of Texas Instruments Incorporated.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

1993, Texas Instruments Incorporated

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

GND

2–1
