54ABT244J-QML datasheet, PDF - EEWORLD Datasheet

54ABT244J-QML: DescriptionBus Driver, 2-Func, 4-Bit, True Output, CDIP20,; Categorylogic logic; File Size400KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

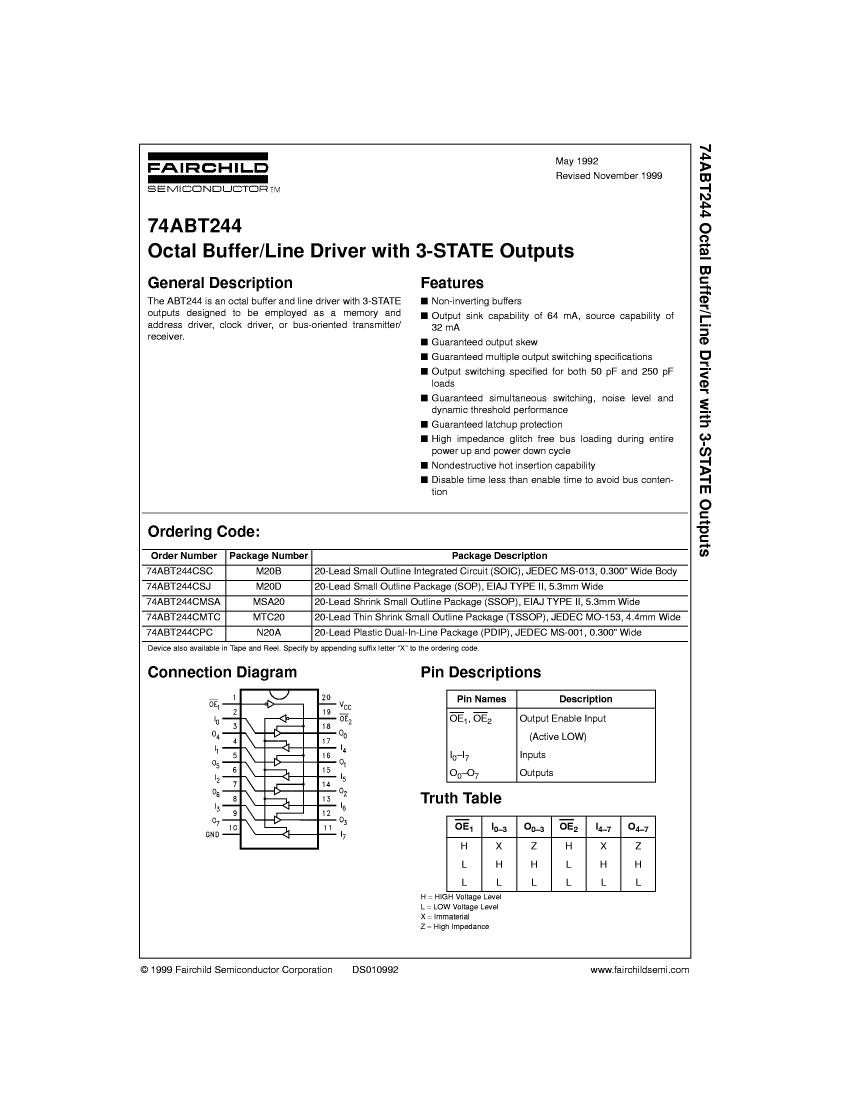

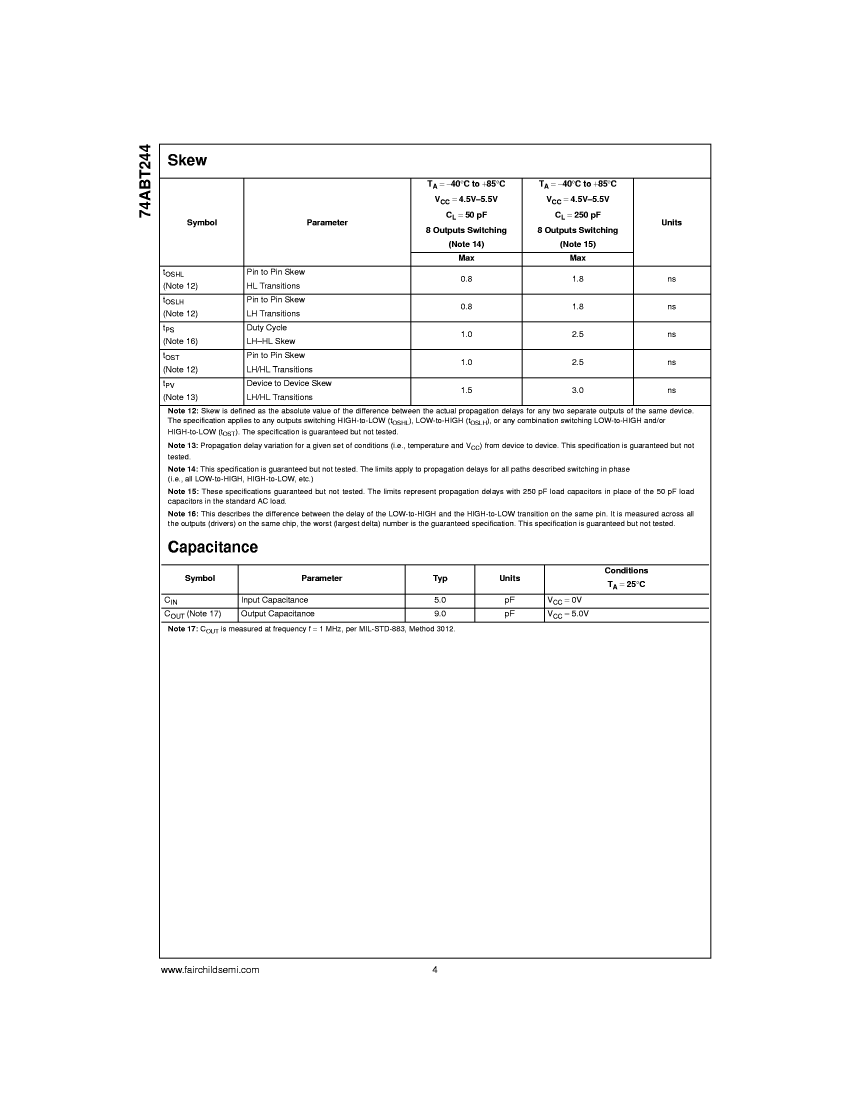

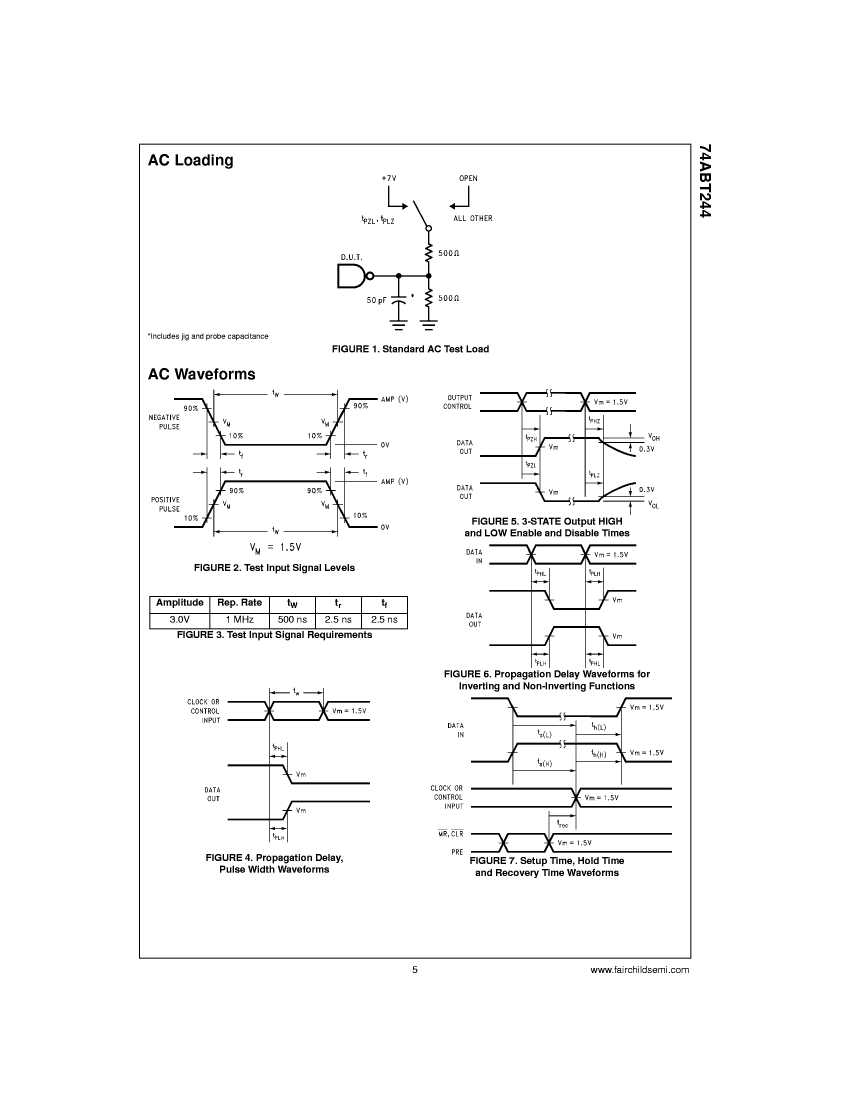

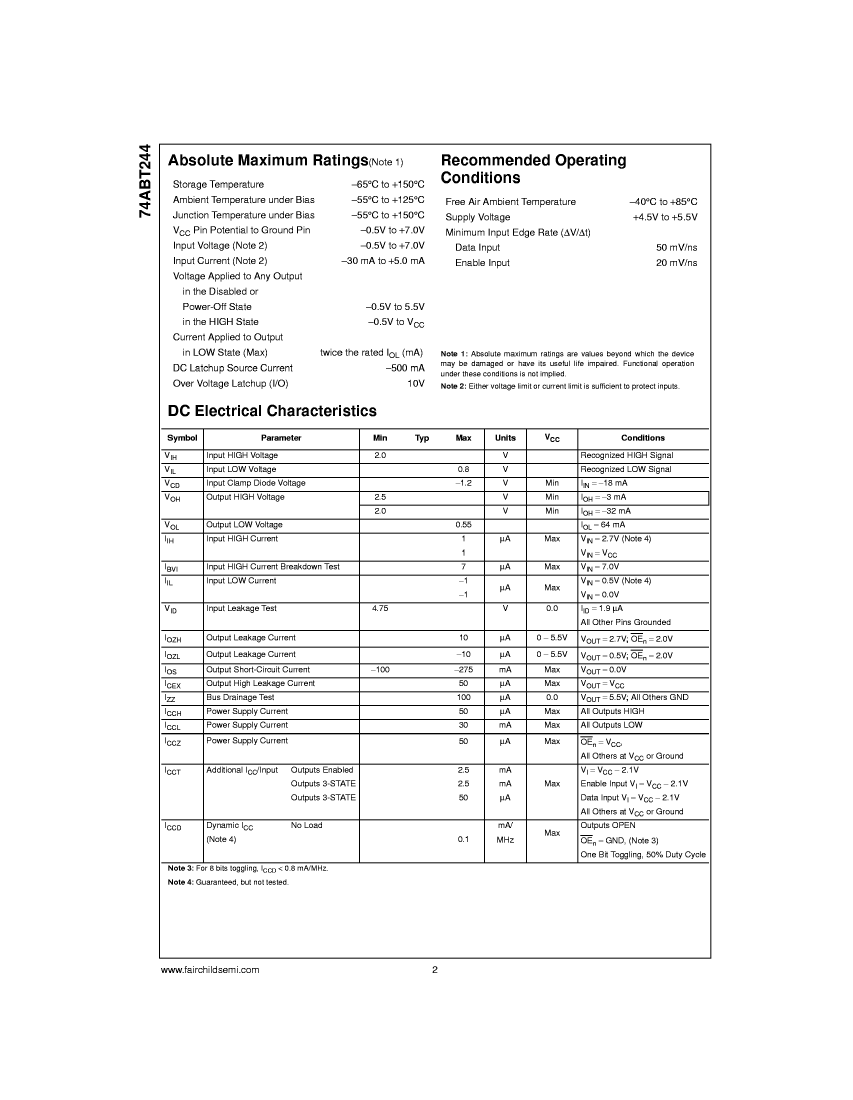

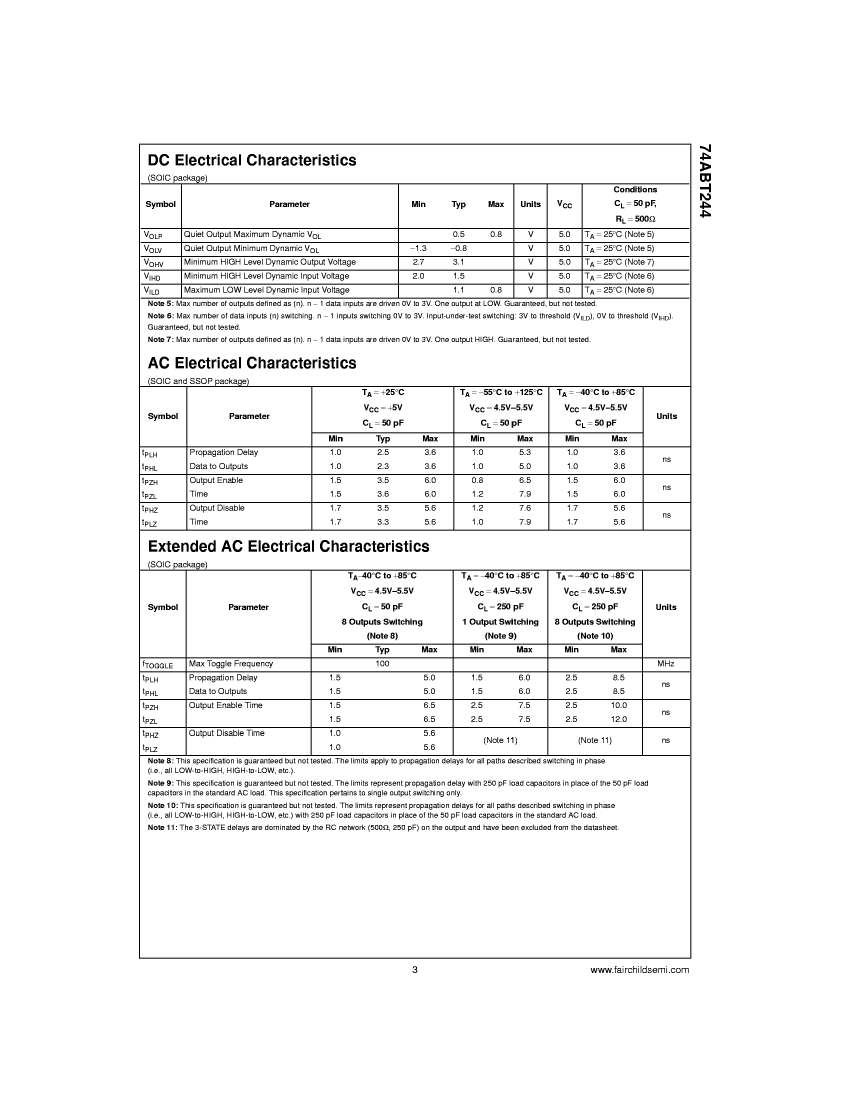

54ABT244J-QML Overview

Bus Driver, 2-Func, 4-Bit, True Output, CDIP20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	5.3 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	54ABT244J-QML	54ABT244E-QML
Description	Bus Driver, 2-Func, 4-Bit, True Output, CDIP20,	Bus Driver, 2-Func, 4-Bit, True Output, CQCC20,
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP20,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW
JESD-30 code	R-XDIP-T20	S-XQCC-N20
JESD-609 code	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.048 A	0.048 A
Number of digits	4	4
Number of functions	2	2
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN
Encapsulate equivalent code	DIP20,.3	LCC20,.35SQ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	5.3 ns	5.3 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
Base Number Matches	1	1
