CDH3D13/SHPNP1R2MC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDH3D13/SHPNP1R2MC

CDH3D13/SHPNP1R2MC: Description1 ELEMENT, 1.2uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size172KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDH3D13/SHPNP1R2MC Overview

1 ELEMENT, 1.2uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT

CDH3D13/SHPNP1R2MC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
DC Resistance	0.088 Ω
Nominal inductance(L)	1.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDH3D13/SHP
Number of functions	1
Number of terminals	2
Maximum rated current	2.4 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

SMD Power Inductor

CDH3D13/SHP

Description

• Ferrite drum core construction.

• Magnetically unshielded.

• L W H:4.2 4.0 1.4 mm Max.

• Product weight: 70mg(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -40

+105

(including coil’s self temperature rise)

+105

• Storage temperature range: -40

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging

• 7.0”diameter reel

• 1000pcs per reel

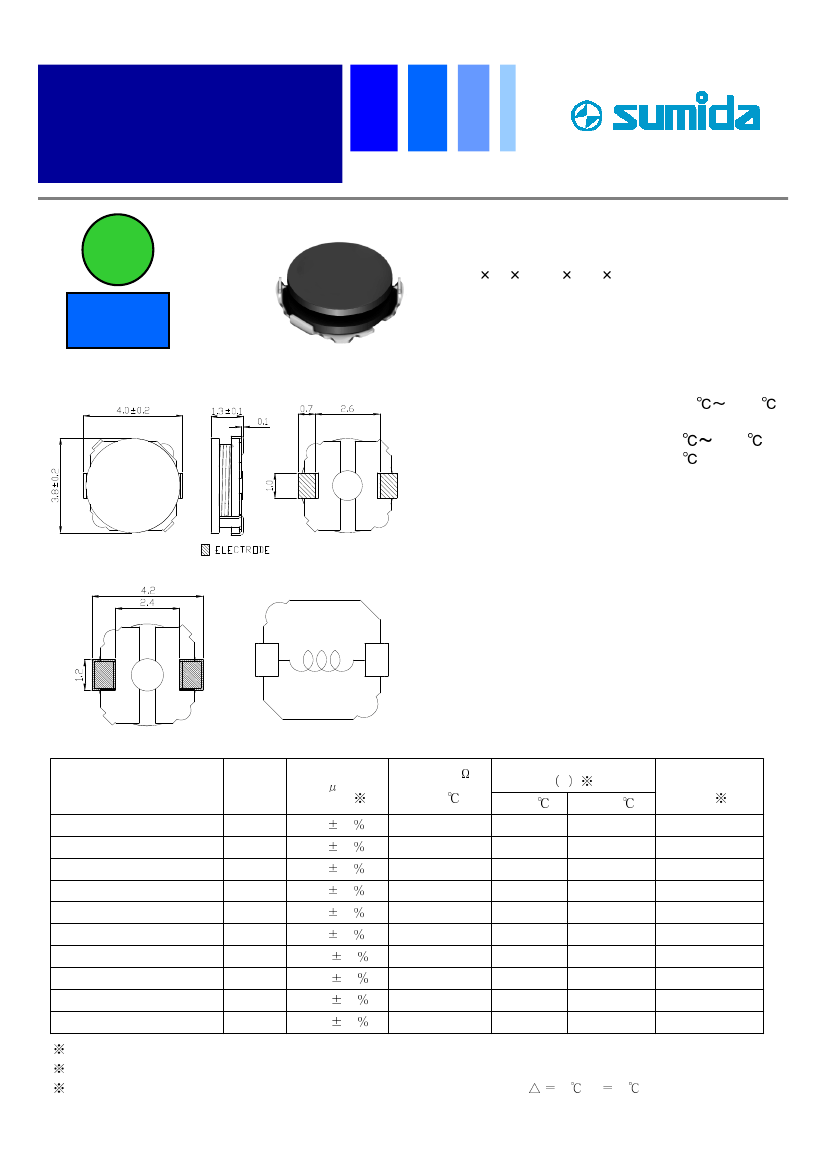

Land pattern and Schematics - [mm]

Applications

• Ideally used in Mobilephone,PDA,MP3,

DSC/DVC, Portable DVD, etc as DC-DC

converter inductors.

RoHS

Halogen

Free

Dimension - [mm]

Electrical Characteristics

CDH3D13SHPNP-1R5MC

CDH3D13SHPNP-2R5MC

CDH3D13SHPNP-3R6MC

CDH3D13SHPNP-4R7MC

CDH3D13SHPNP-6R8MC

CDH3D13SHPNP-100MC

CDH3D13SHPNP-120MC

CDH3D13SHPNP-150MC

CDH3D13SHPNP-220MC

1R5

2R5

3R6

4R7

6R8

100

120

150

220

1.5

2.5

3.6

4.7

6.8

10.0 20

12.0 20

15.0 20

22.0 20

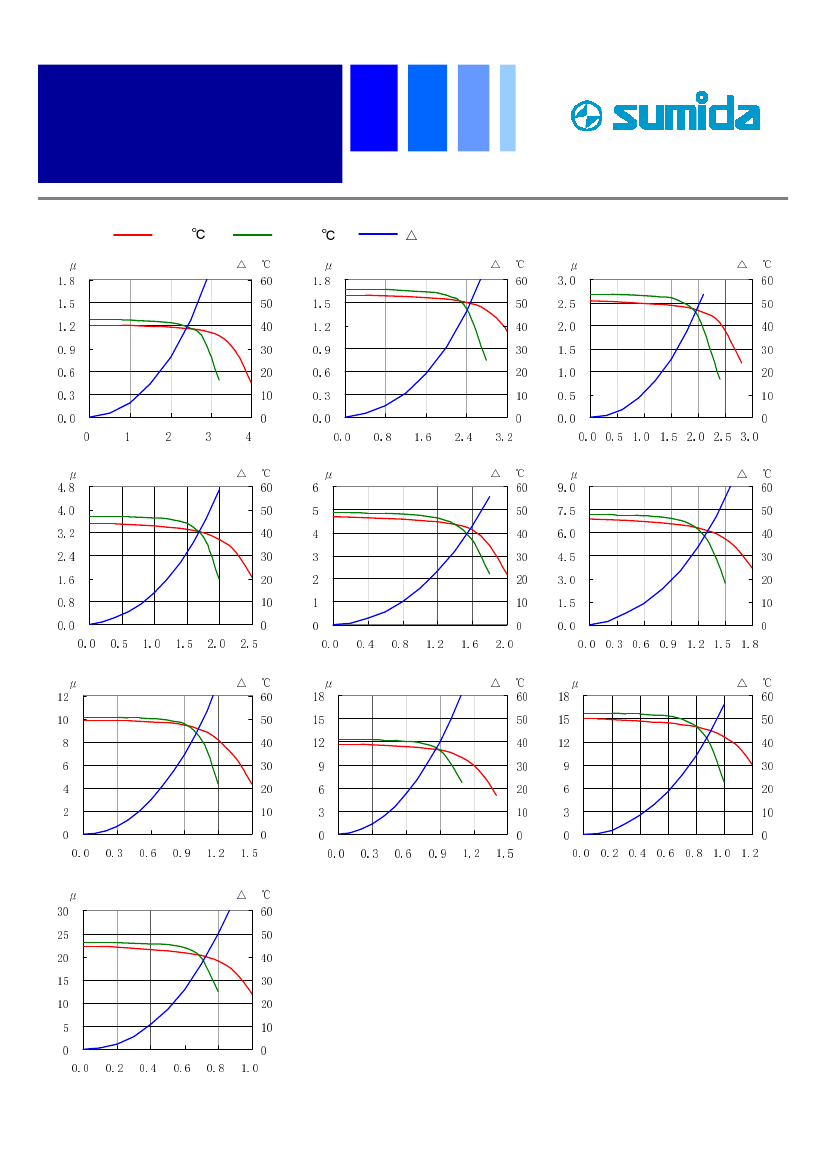

1. Inductance measuring condition: at 100kHz.

2. Saturation current: The value of D.C. current when the inductance decreases to 90% of it’s nominal value.

Page 1 of 3

℃ ＝ ℃ ＝△

3. Temperature rise current: The value of D.C. current when the temperature rise is

CDH3D13SHPNP-1R2MC

1R2

1.2

88(70)

2.60

2.30

1.80

1.55

1.30

2.20

1.95

1.55

1.35

1.20

100(80)

125(100)

156(125)

181(145)

275(220)

375(300)

469(375)

569(455)

856(685)

1.10

0.90

0.85

0.75

0.60

0.95

0.80

0.75

0.67

0.58

t 40

(Ta

Revised: 10-Dec-13

℃

at 20

at 100

2.40

2.20

1.80

1.60

1.50

1.30

0.95

0.90

0.85

0.72

※

％

※

Part Name

Stamp

℃

※）（

℃

Inductance

( H)

[ Within ] 1

D.C.R. (m )

Max. (Typ.)

(at 20 )

Saturation Current

Temperature

Rise Current

(A)

℃

℃ ½℃

× ×

※

CDH3D13/SHPNP1R2MC Related Products

	CDH3D13/SHPNP1R2MC	CDH3D13/SHPNP1R5MC	CDH3D13/SHPNP2R5MC	CDH3D13/SHPNP120MC	CDH3D13/SHPNP4R7MC	CDH3D13/SHPNP150MC	CDH3D13/SHPNP100MC	CDH3D13/SHPNP220MC	CDH3D13/SHPNP6R8MC	CDH3D13/SHPNP3R6MC
Description	1 ELEMENT, 1.2uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 1.5uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 2.5uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 12uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 4.7uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 15uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 10uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 22uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 6.8uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 3.6uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
DC Resistance	0.088 Ω	0.1 Ω	0.125 Ω	0.469 Ω	0.181 Ω	0.569 Ω	0.075 Ω	0.856 Ω	0.275 Ω	0.156 Ω
Nominal inductance(L)	1.2 µH	1.5 µH	2.5 µH	12 µH	4.7 µH	15 µH	10 µH	22 µH	6.8 µH	3.6 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDH3D13/SHP	CDH3D13/SHP	CDH3D13/SHP	CDH3D13/SHP	CDH3D13/SHP	CDH3D13/SHP	CDH3D13/SHP	CDH3D13/SHP	CDH3D13/SHP	CDH3D13/SHP
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum rated current	2.4 A	2.2 A	1.8 A	0.9 A	1.5 A	0.85 A	0.95 A	0.72 A	1.3 A	1.6 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Maker	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	-	SUMIDA	SUMIDA
Base Number Matches	1	1	1	1	1	1	1	1	-	-
