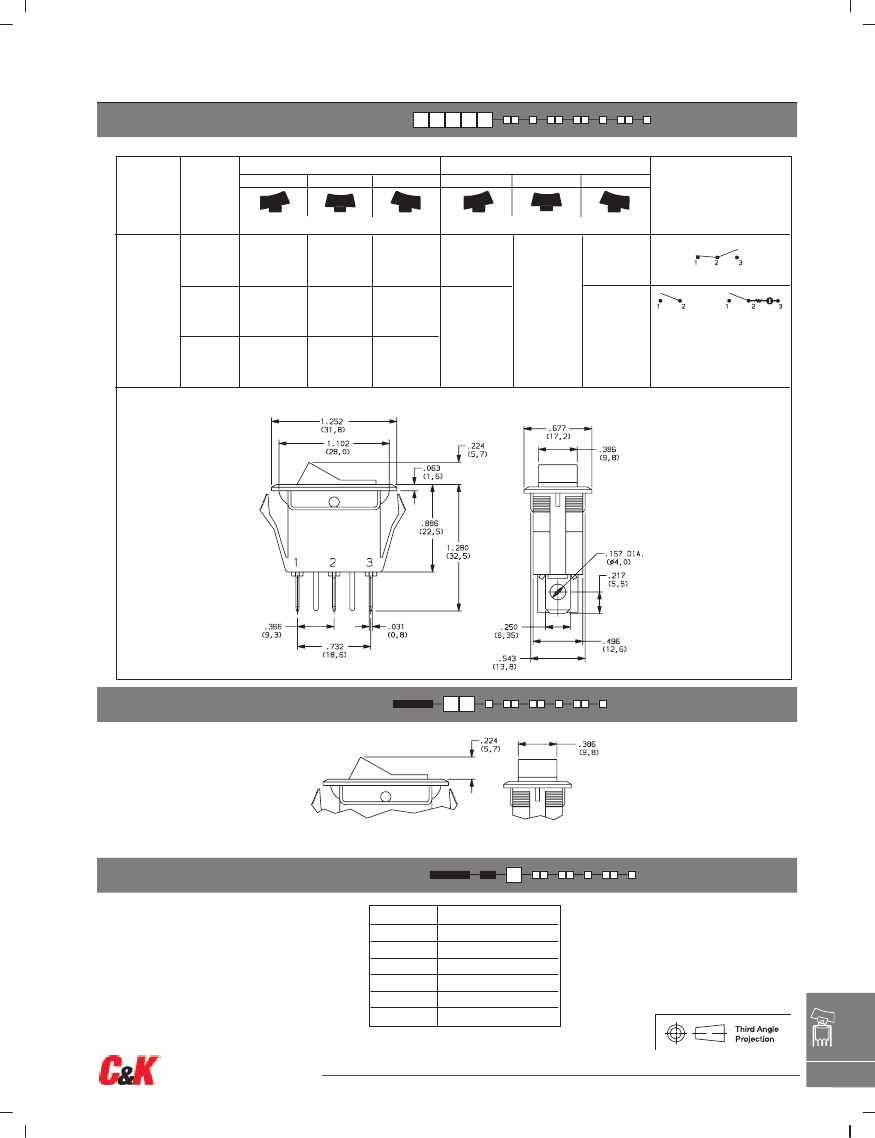

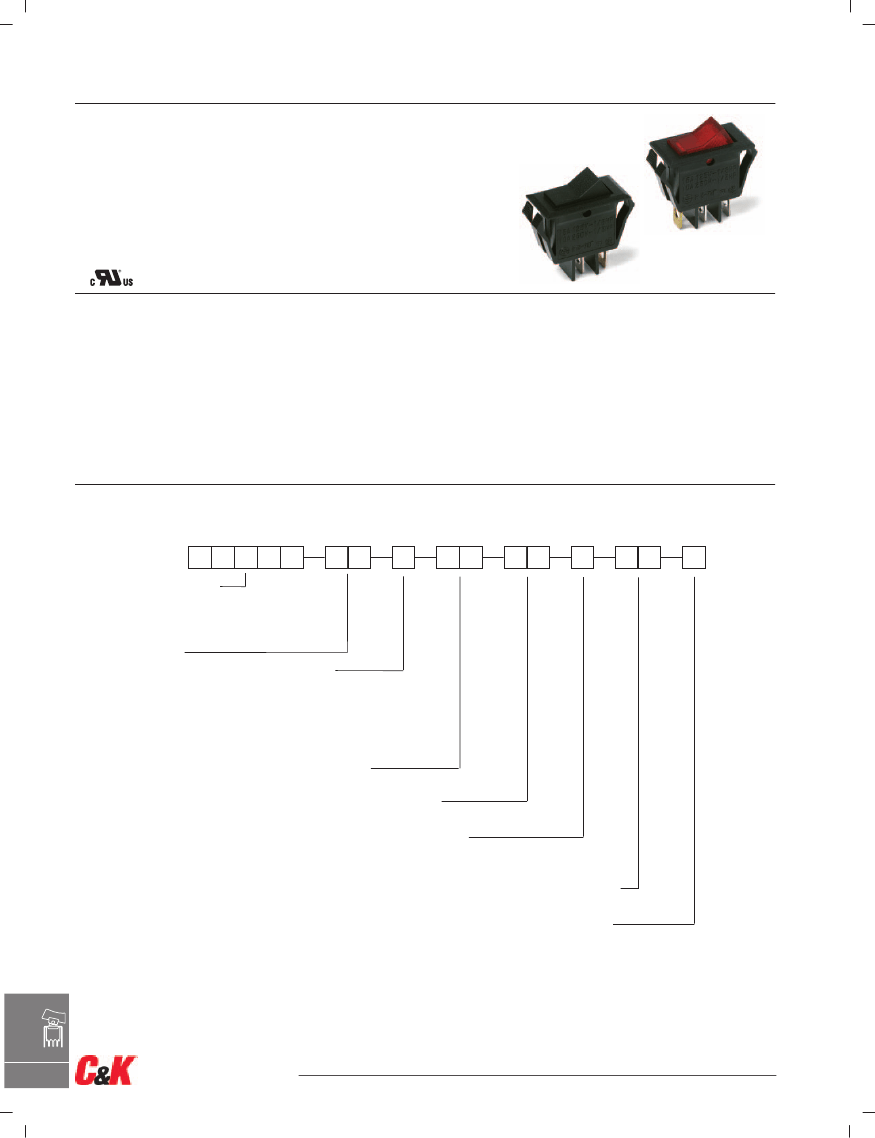

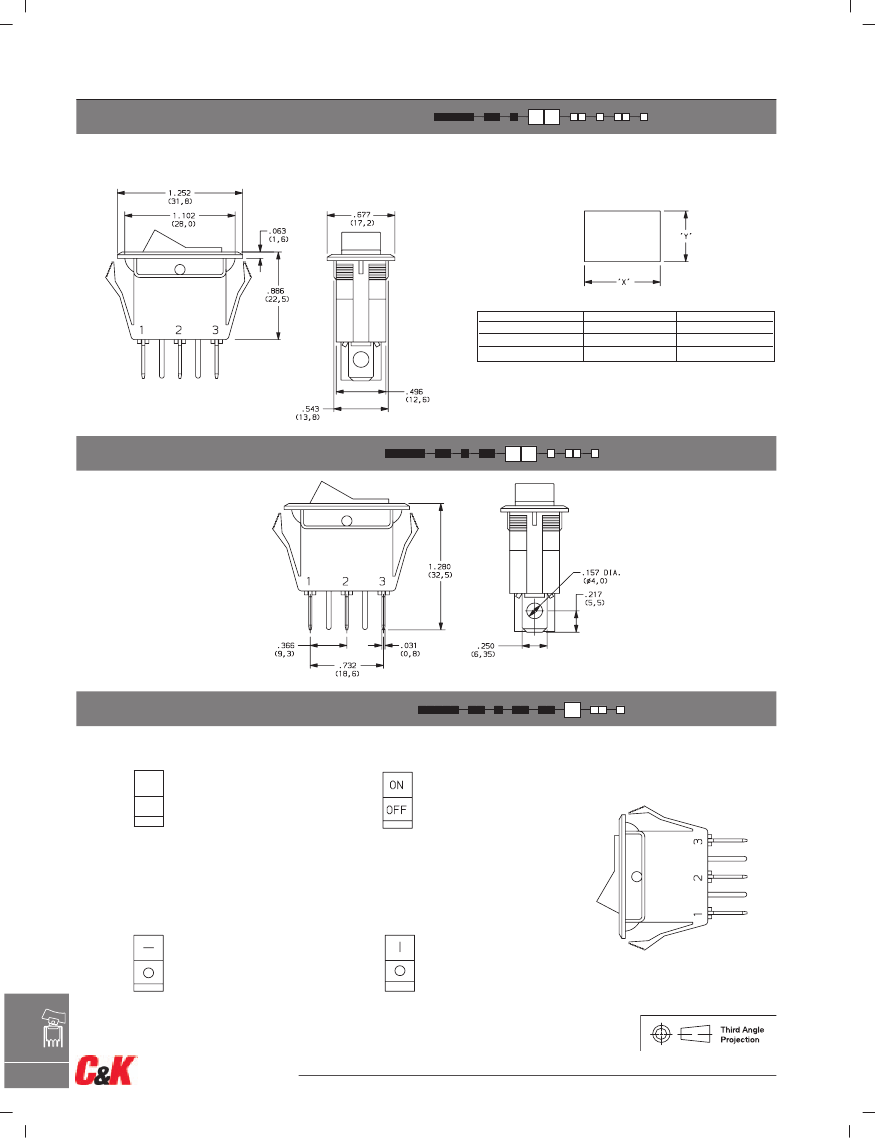

CL Series
Single Pole Power Rocker Switches
Features/Benefits
•
Illuminated versions available
•
Positive detent
•
Snap-in mounting
Typical Applications
•
Floor care products
•
Power outlet strips
•
HVAC units
•
RoHS compliant
Specifications
CONTACT RATING:
16 AMPS @ 125 VAC, 1/3 HP;
10 AMPS @ 250 VAC, 1/2 HP.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108
Ω
min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
OPERATING TEMPERATURE: -20ºC to +80ºC
Materials
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated.
ALL TERMINALS: Silver plated, copper alloy.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages G–91 through G–93. For additional options not shown in catalog, consult Customer Service Center.
Switch
CL101
CL102
CL12
*
Function
SPDT On-None-On
SPST On-None-Off
SPST On-None-Off
Actuator
J7
Rocker
J9
Illuminated rocker
Actuator Color
2
Black
1
White
3
Red
R
Red, illuminated
A
Amber, illuminated
G
Green, illuminated
Mounting Style/Color
S2
Snap-in, black
S1
Snap-in, white
Termination
05
.250” quick connect
Actuator Marking
(NONE)
No marking
D
ON-OFF
H
”O l” - international ON-OFF
P
”O -” international ON-OFF
Contact Rating
QA
Silver
Lamp Rating
(NONE)
No lamp
7
125 VAC neon
8
250 VAC neon
Rocker
* CL12 - for switches with both marking and illumination
G
G–86
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CL Series
Single Pole Power Rocker Switches
SWITCH FUNCTION
SWITCH FUNCTION
Pos. 1
Pos. 2
Pos. 3
Pos. 1
CONNECTED TERMINALS
Pos. 2
Pos. 3
NO.
POLES
MODEL NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
CL101
ON
NONE
ON
2-1
N/A
2-3
SP
CL102
ON
NONE
OFF
2-1
OPEN
OR
For Illuminated
Version
CL12 *
ON
NONE
OFF
* CL12 - for switches with both marking and illumination
Shown in Pos. 1
ACTUATOR
J7
ROCKER
J9
ILLUMINATED ROCKER
NOTE:
J9 actuator available with CL102 & CL12 switch function only.
ACTUATOR COLOR
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
RED
RED, ILLUMINATED
AMBER, ILLUMINATED
GREEN, ILLUMINATED
Rocker
2
1
3
R
A
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–87
www.ck-components.com
G
CL Series
Single Pole Power Rocker Switches
MOUNTING STYLE/COLOR
S2
S1
SNAP-IN, BLACK
SNAP-IN, WHITE
PANEL MOUNTING
PANEL THICKNESS
0.030-0.049 (0,75-1,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
“X”
1.126-.004 (28,6-0,1)
1.134-.004 (28,8-0,1)
1.150-.004 (29,2-0,1)
“Y”
0.551+.004 (14,0+0,1)
0.551+.004 (14,0+0,1)
0.551+.004 (14,0+0,1)
Shown in Pos. 1
TERMINATION
05
.250” QUICK CONNECT
Shown in Pos. 1
ACTUATOR MARKING
NONE
NO MARKING
D
ON-OFF
Rocker
H
Ol
P
O-
NOTE:
Orientation of actuator marking and terminals.
Shown in Pos. 1
G
G–88
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CL Series
Single Pole Power Rocker Switches
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER
POWER
RATINGS
16 AMPS @ 125 VAC; 1/3 HP;
10 AMPS @ 250 VAC, 1/2 HP
QA
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
LAMP RATING
(NONE)
NO LAMP
7
125 VAC 33kΩ NEON
8
250 VAC 150kΩ NEON
NOTE:
Lamp rating for J9 actuator option.
Rocker
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–89
www.ck-components.com
G
